Assembly
1.

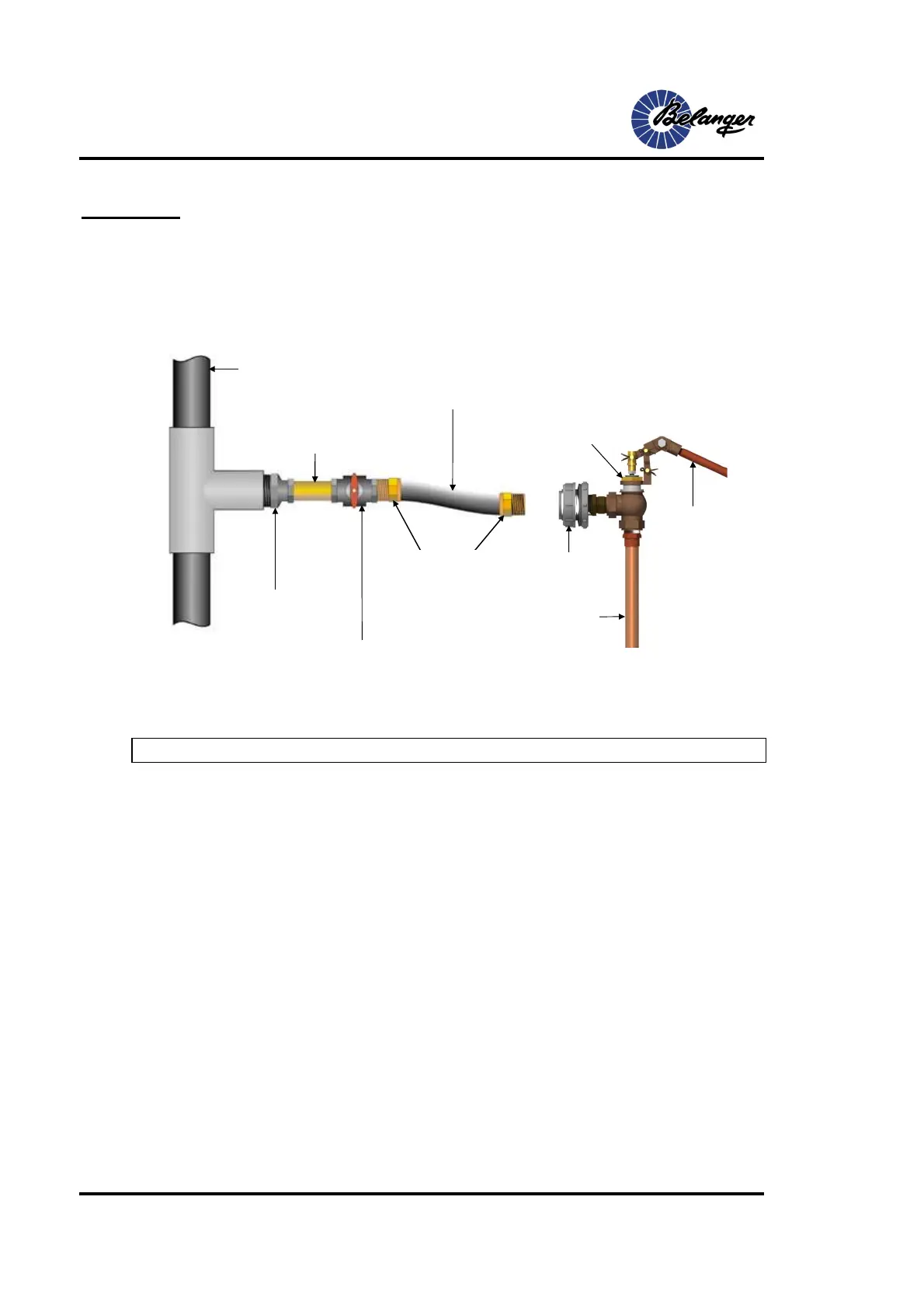

Install the inlet plumbing to the float valve as shown below.
Install a field supplied shut off valve in this feed line.
Install the connection to the float valve inlet (3/4” FNPT) with flexible hose.
Note:
At the fluid inlet, a minimum 1” feed to the float valve is required.
Recommended 1” barbed
hose fittings
(field supplied)
Main water feed
(typically 2”)
3/4” flexible hose required
(field supplied)
Reducer
(field supplied)
Shut off valve
(field supplied)
Recommended 1”, minimum 3/4” copper
(copper, field supplied)
tank
1” Bulkhead
Fitting
To Next Page
