DURAFLO™ 18 GPM PUMPING STATIONS
1MANUL375 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470* Ph (248) 349-7010 * Fax (248) 380-9681 29
Maintenance
Pumping Station Float Valve Seal Replacement Kit (#105884)

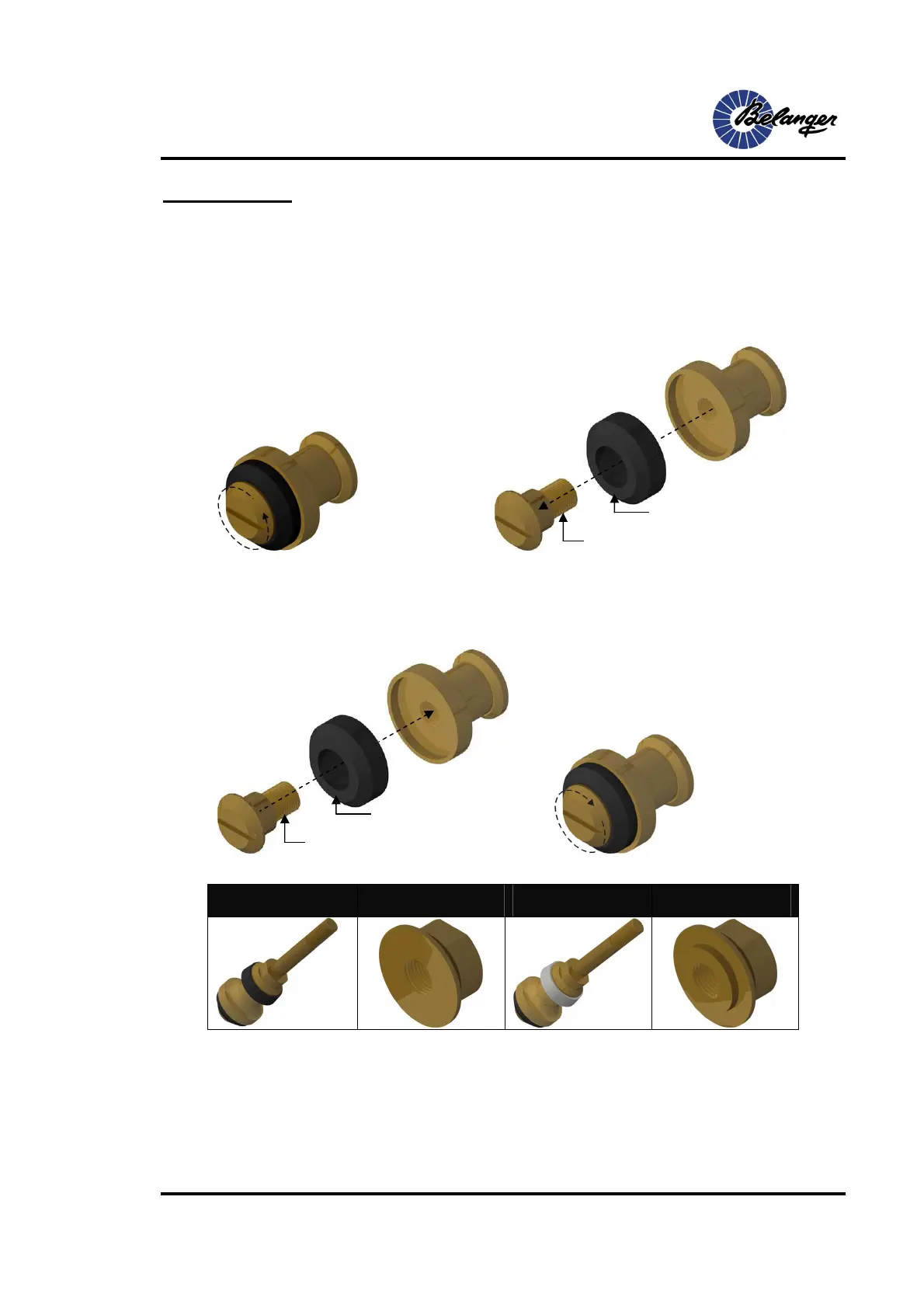

Disassemble the Stem Assembly Components
2) Loosen then remove the Bottom Follower and black Standard Disc. Discard the old Standard
Disc.
Reassemble the Stem Assembly Components
1) Install the new Standard Disc and tighten the Bottom Follower onto the Piston.
OLD Stem Assembly
(Black Leather Cup)
OLD Style Top Follower
(Flat Surface)
NEW Stem Assembly
(White Tefl
on™ Cup)
NEW Style Top Follower
(Extruded Surface)
Standard Disc
Bottom Follower
Standard Disc
Bottom Follower
