Belden Hirschmann MIPP - Installing the Module into the Housing

MIPP
Release 01 01/12
17

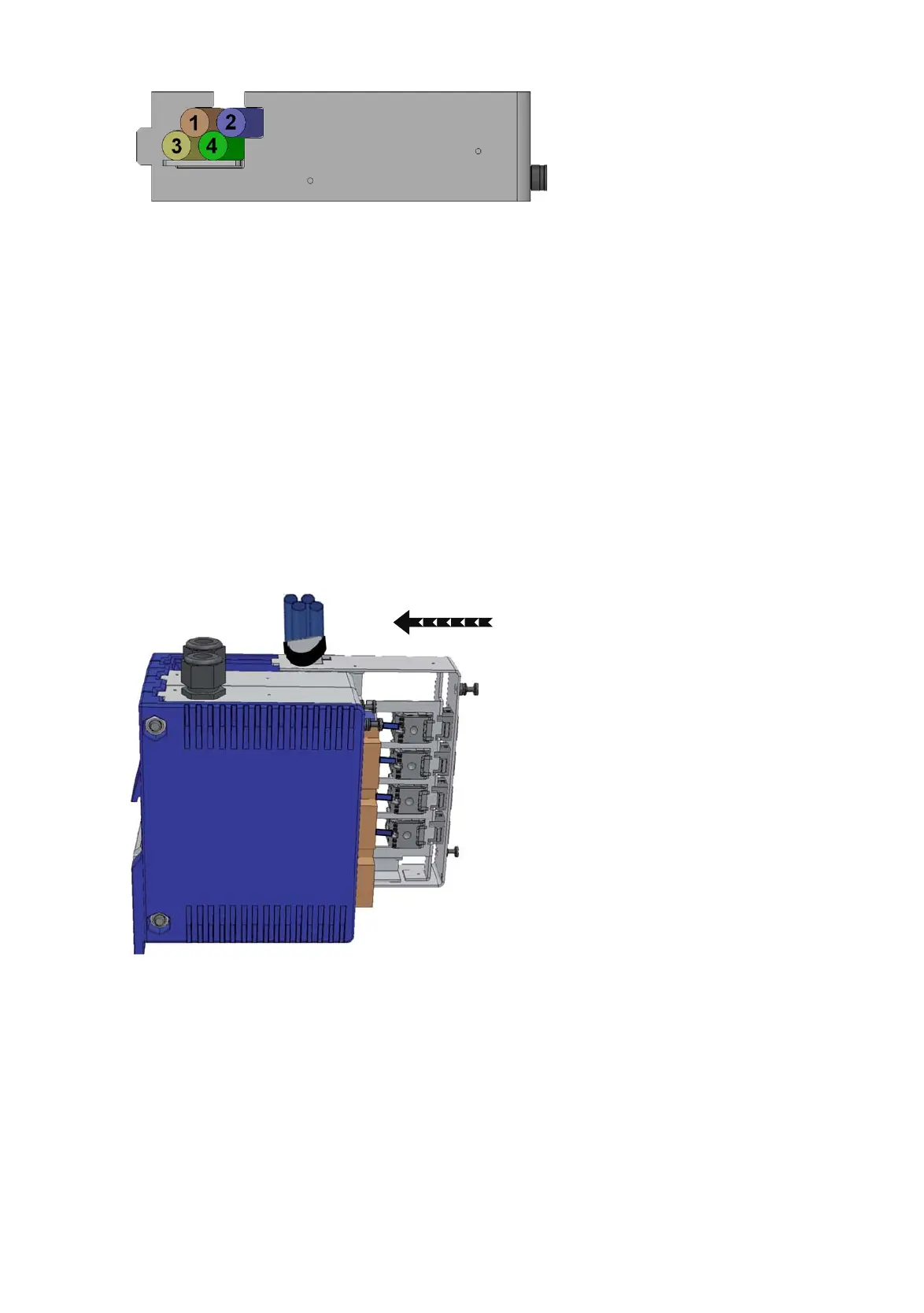

Figure 10: Cables arrangement – Top view
 Fix the installation cables to the metal bracket with the Velcro strip
included.
 Fix the ground cable (not included in the delivery) with one end on the
ground connection of the module and the other end to the ground bar of
the installation system.
2.2.4 Installing the module into the housing
Proceed as follows:
 Install the module in the housing.
 Tighten the 2 screws on the front of the module.
Figure 11: Assembling the module
