1.1 Description of housing
The housing has a modular design and is thus adaptable to the number of
modules. There is space for a maximum of 6 single modules.
The following components are available:
 2 housing walls, 1 left and 1 right
 Spacer with divider for the separation of 2 single modules
 Spacer without divider for the use of a double module
 Slider for the device assembly on a DIN rail or wall mounting plate
 2 Coil springs
 2 Inner-hexagonal housing bolt M6 with nuts
Note: The length of the housing bolts to be used is determined by the
number and width of all modules used. A total of 6 different lengths are
available (see page 23).

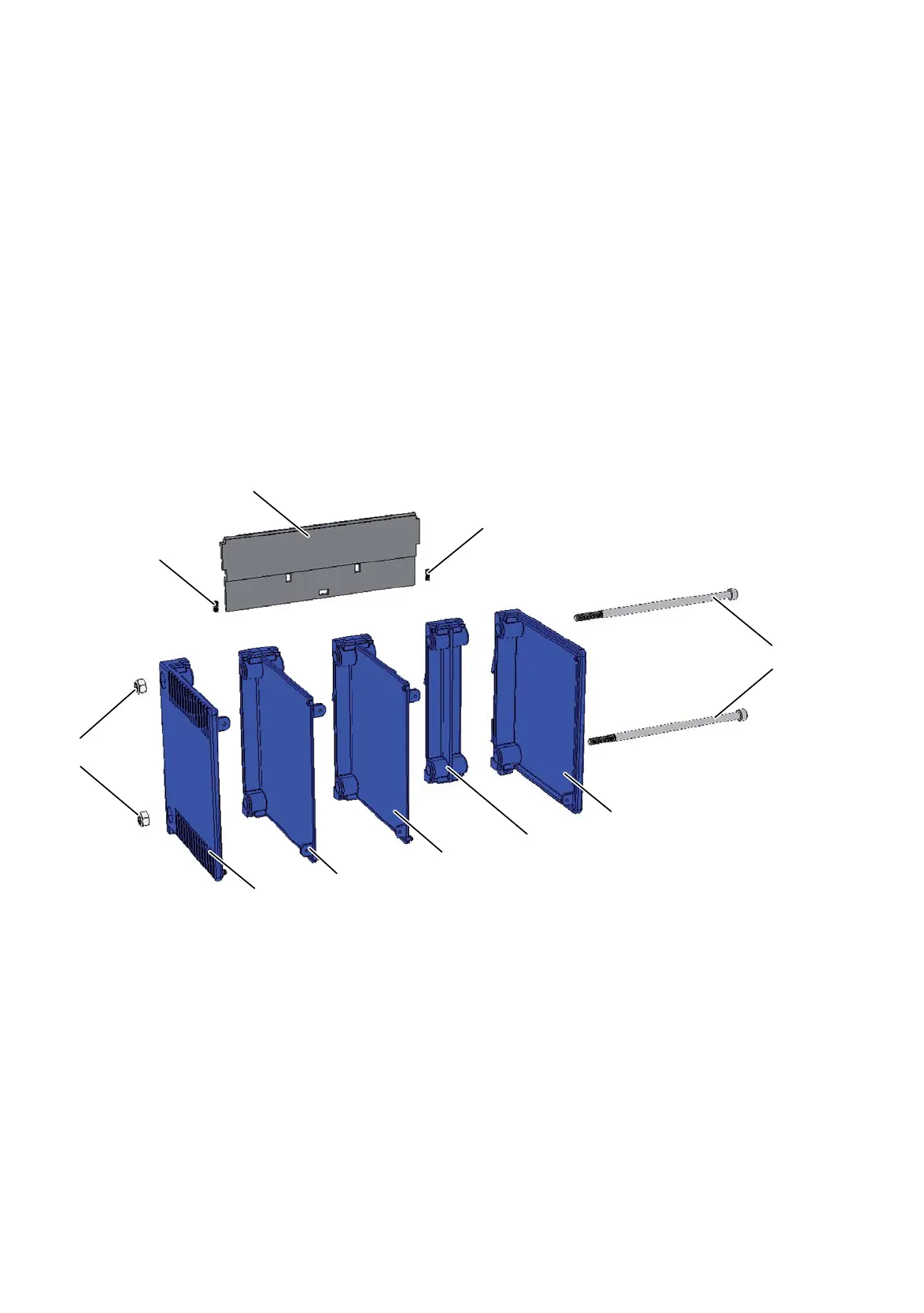

Figure 2: Housing components
1 – Coil springs
2 – Slider
3 – Coil springs
4 – Housing bolts
5 – Housing wall right
6 – Spacer without divider
7 – Spacer with divider
8 – Hole for module assembly
9 – Housing wall left
10 – Nuts
7
6
5
8
9
4
3
2
1
10
