Belimo FS Series User Manual

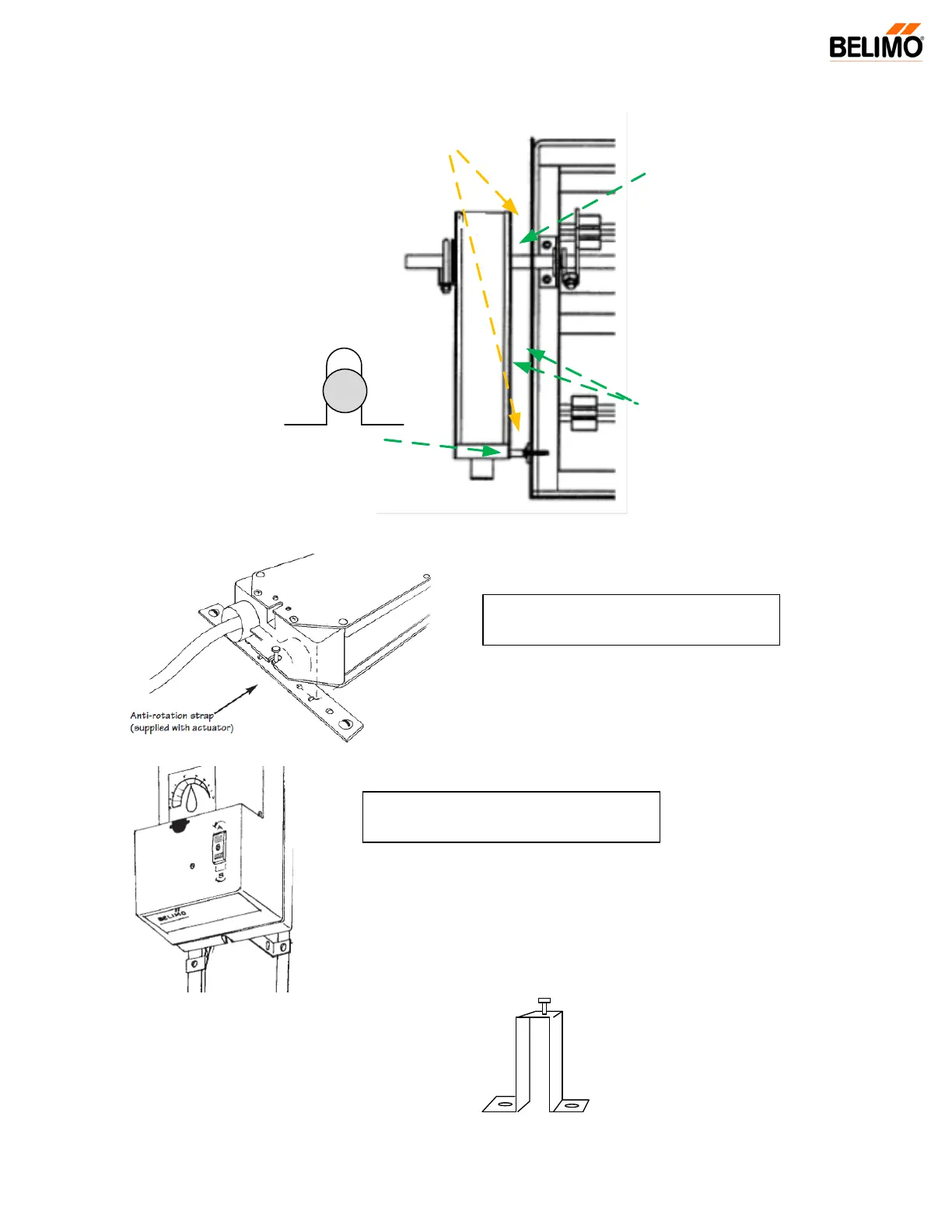

Distance at top must be
the same as at bottom
Actuator should be
parallel to the plane of
the damper frame and
sleeve.
Actuator must be
perpendicular to the
damper shaft.
Allow any non-concentric shaft
motion to be taken up by
mounting stud in middle of U-slot
Figure 1
Figure 2
Figure 3
As long as it is mechanically
solid, the anti-rotation strap
may be bent to fit height.
-
Note how the pin of the anti-rotation strap
is mounted in middle of actuator U-slot.
This is acceptable as long as mechanically
solid.
