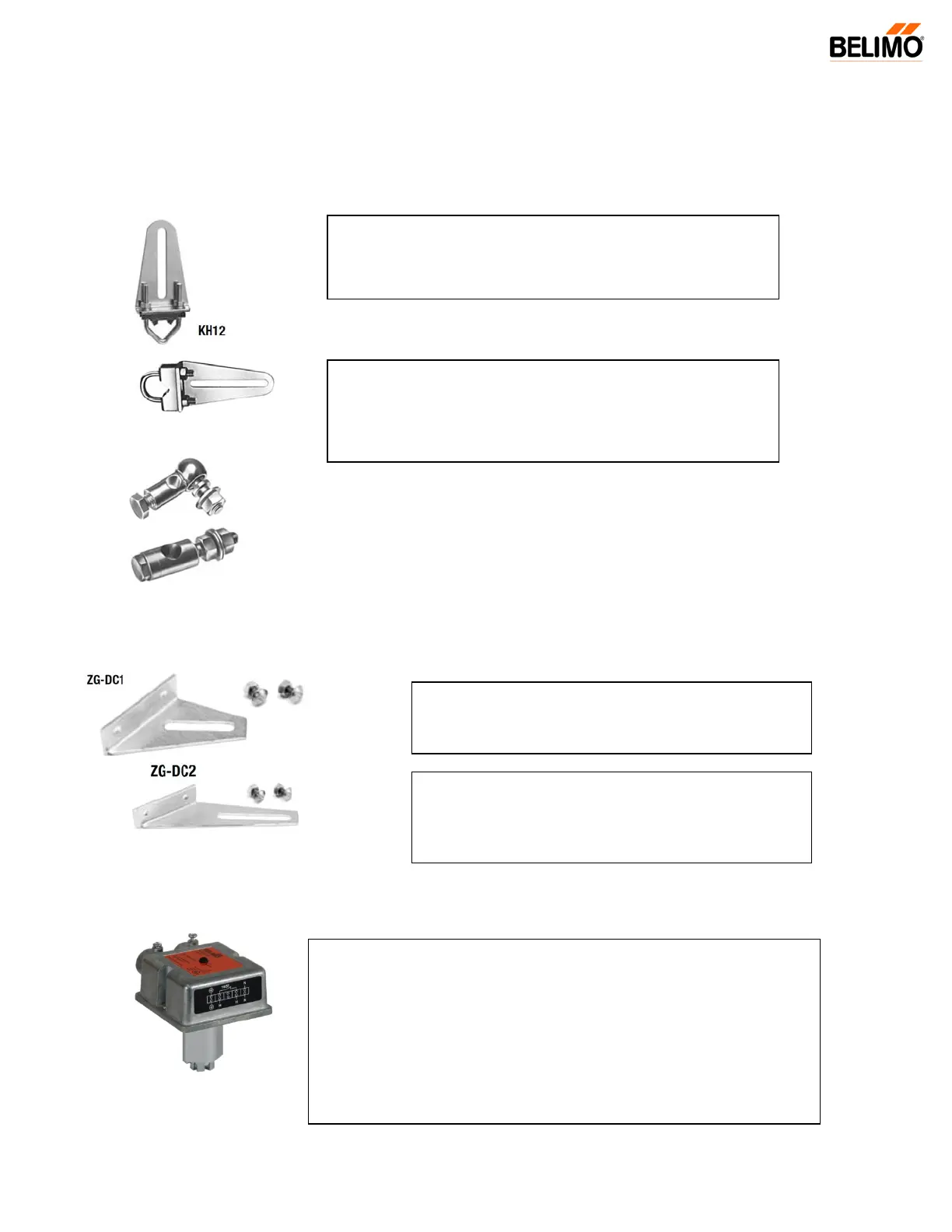

Miscellaneous parts
Should they be needed, Belimo carries a range of parts. Ball joints and 5/16” rods are available from
most distributors.
KH8
KG8 3/8”
KG6, KG10A ¼”
SH8 (not shown – see picture page 9). Push-rod for KG6 & KG8 ball joints. 5/16” 36” long
Use SH10 3/8” rods for GMB and dual FSAF or FSNF linkages. 5/16” can bend under heavy loads.
ZG-DC1
ZG-DC2
Thermal sensor replacements – BAE165 US
KH-6. Zinc plated steel. For shafts 3/8” to 11/16” Uses KG6
ball joint. Slot width 1/4”
KH-8. Zinc plated steel. For shafts 3/8” to 11/16” Uses KG8
(90 degree) or KG10A ball joint. Slot width 21/64”
Where the crank arm on the jackshaft is broken or not of
the type needed, the KH12 fits over the shaft without
removing it. Zinc plated steel. Slot is for the KG10A ball
joint. V-bolt fits ¾” to 1” (20 to 25mm) shafts.
Where existing sensor is defective or one must be added, the
165°F primary sensor may be used.
Original equipment is recommended although not strictly
required by code. UL does not regulate replacement or repair.
See NFPA 80 or NFPA 105.
Damper blade clip and ball joints for blades
typically 3.5” in width. Typically the actuator or
rod to shaft is in front of blade.
Damper blade clip and ball joints – typically
used for 6” wide blade control dampers.
Typically the ctuator or rod to shaft is above or
Air Balance Honeywell ML&MS Types to Belimo FSxx March 2018
15
