VRP-M VAV
Adaptive VAV controller
12 / 28 Product information S4-VRP-M VAV • en • v2.0 • 11.2006 • Subject to changes www.belimo.eu
System configuration
Unit manufacturer’s settings
The system solution selected by the unit manufacturer is mounted by the latter on the VAV unit
and configured according to the system requirements (as stated in the order). This configuration
comprises the following settings.

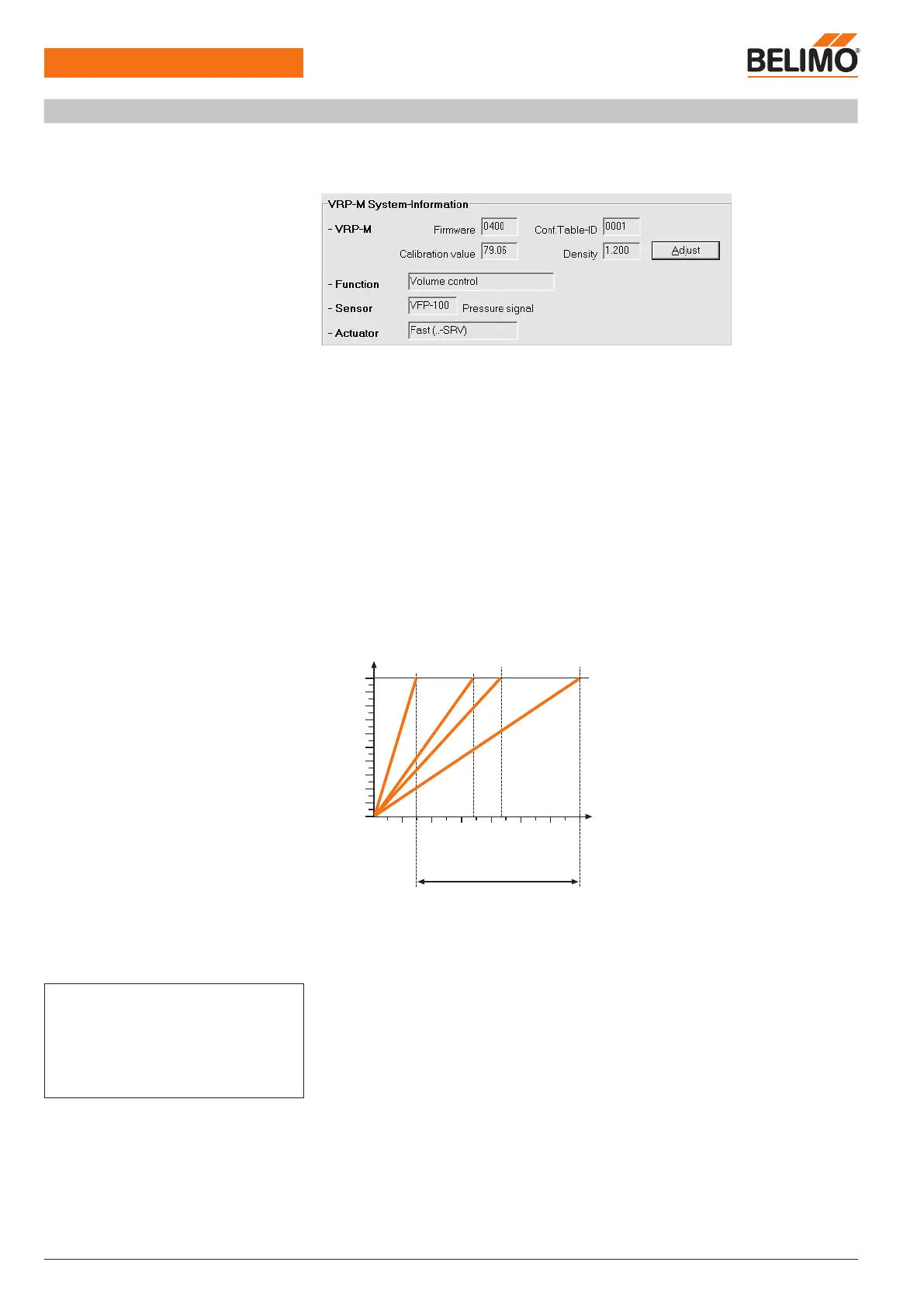

VRP-M Tool
Expert tab
System information
Function
Volumetric flow
Sensor
The pressure sensor type is specified to enable the pressure range to be adapted.
Actuator
The actuator type is specified to enable the running time characteristics to be adapted.
Control – reference signal w,
volumetric flow actual value signal U5
The reference signal w and the volumetric flow actual value signal U5 are adapted to the MCR
system.
Selection: DC 0...10 V / DC 2...10 V / adjustable (sequence matching in the 0...10 V range)
Calibration –
nom
The
nom
values are specified and fixed-programmed by the unit manufacturer.
Each VRP-M system solution is optimally adapted to the VAV unit by means of the
nom
setting.
nom
corresponds to the maximum volumetric flow of the VAV unit at which the pressure drop
and noise are still within the permissible operating conditions. The
nom
setting is specified by
the unit manufacturer.
Replacement orders
If replacement devices are ordered, they must be parameterised beforehand by the OEM at the
factory according to the installed system. The VRP-M is sold exclusively via the OEM channel for
this reason.
Note
The equipment configuration and settings form part
of the unit manufacturer’s system solution (OEM)
and are not allowed to be modified without prior
authorisation. All changes are liable to disrupt opera
-
tion and cause damage to the system or injury to
persons!
