Belling BI60FP - Method 3: Housing Unit with Internal Height 710 MM or more

INSTALLATION - 70CM

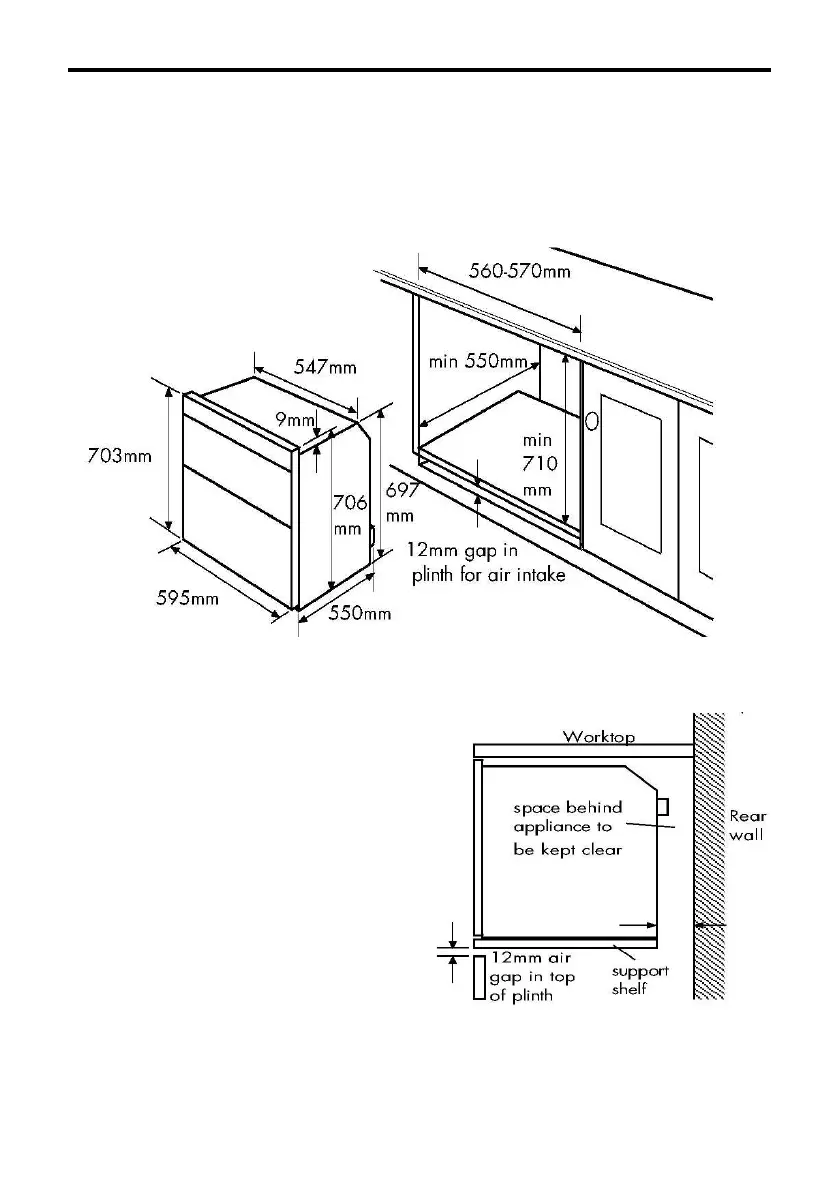

Method 3: Housing unit with internal
height 710mm or more
Note:Youwillnotneedthe4runnersand
2 trims that are packed with the oven for
this installation.
1. When installed in a typical 600mm
deep built in housing unit, the false back
should be removed from the housing unit
to provide the necessary depth for
installation.
2. When the false back is removed, it is
normally the case that the support shelf
for the appliance leaves a gap between
the back edge and the wall of approxi-
mately 80mm.
3. If no gap occurs between the back
edge of the shelf and the wall behind the
unit, you must create a gap of at least
30mm by shortening the shelf.
Removeanyxingsthatmayprevent
entry of the oven into housing, or
obstruct the gas inlet pipe. The cabinetry
should be kept structurally sound by
xingtoadjacentcabinets,ooror
worktop.
