Stability Bracket
If the cooker is tted with a exible connection, a stability bracket should be tted to engage in the back
of the cooker. A stability bracket is included with this product.

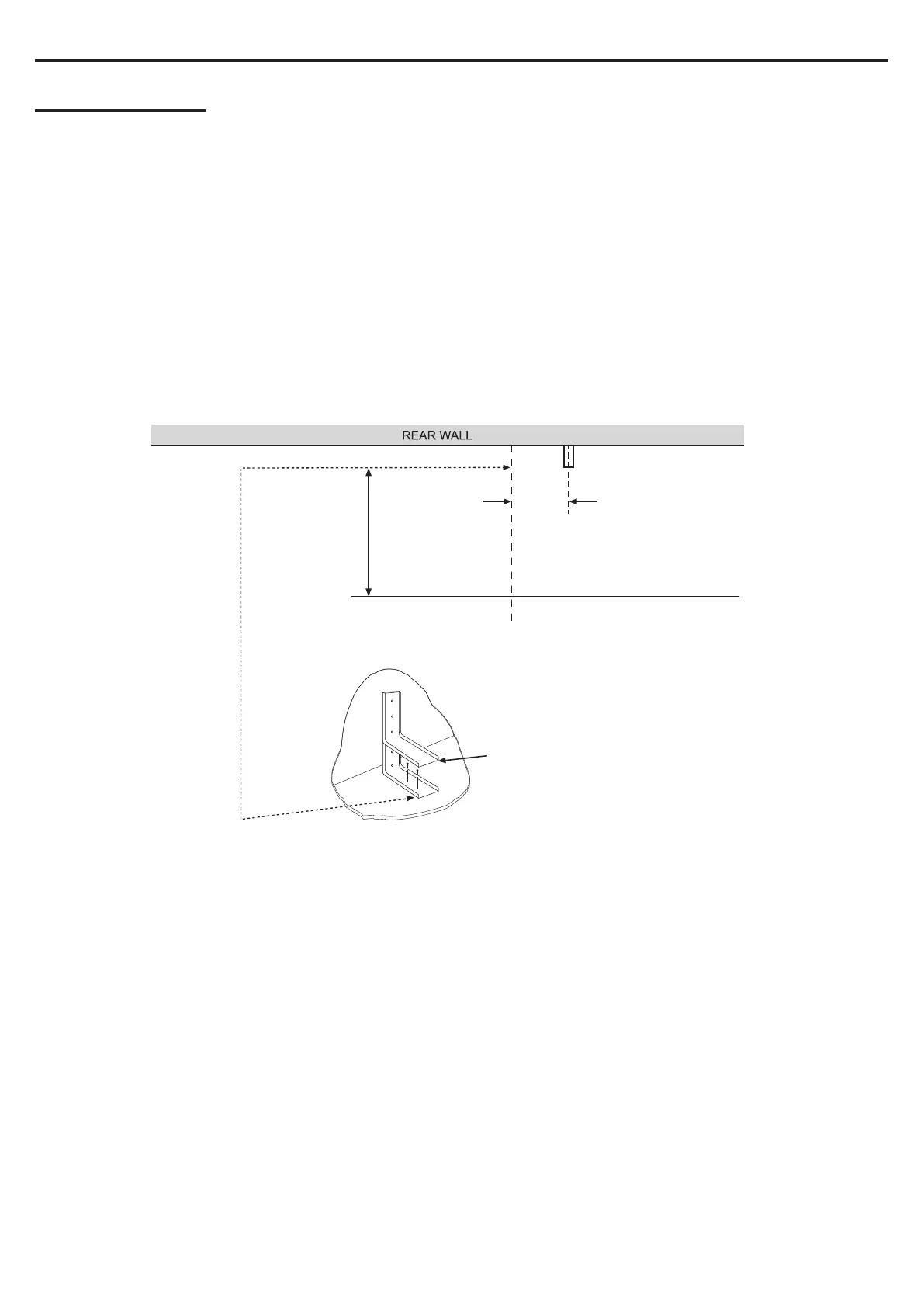

A stability bracket can be tted as follows:
1. Place the cooker in the position and draw a PENCIL LINE level with the front edge.
2. Mark the centre of the cooker to give the CENTRE LINE for the bracket.
3. Remove the cooker and mark o󰀨 450mm from the PENCIL LINE to locate the front edge of the low-
er bracket.
4. Fix the bracket to the oor. Measure from oor level to engagement edge in the back of cooker and
add 3mm.
5. Assemble the underside of the top part of the bracket to this height
Front edge
for lower
bracket
(5)
Underside of top bracket slots into
engagement edge in back of cooker
(3)
450 mm
(1)
Pencil line on floor
Stability bracket
Review stability bracket
location identified on rear
of appliance and position
bracket accordingly
(2)
Centre line
(4)
A restraining device shall restrict the appliance movement to no more than 80% of the hose length.
