Belling BRD900DF - CONNECT TO THE ELECTRICITY AND GAS SUPPLY; WARNING: This appliance must be earthed.; Single Phase Connection (240 V ac 50 Hz); Three Phase Connection (240;415 V 3 N ac 50 Hz)

WARNING: This appliance must be earthed.
• This appliance must be tted to a switch providing all pole disconnection with a minimum contact
separation of 3mm.
• Access to the mains terminal is gained by removing the terminal block cover at the rear of the appli-
ance.
• Connection should be made with a suitable exible cable with a minimum temperature rating of
70°C.
• First strip the wires then push the cable through the cable clamp.
• Connect the cable to the terminal block and tighten the cable clamp screws - see diagram.
• Ret the terminal box cover.
• Su󰀩cient cable should be used to allow the cooker to be pulled out, but must hang clear of the oor
so it does not become twisted or trapped when the cooker is pushed back.
The terminal block screws and clamps can be damaged by excessive tightening and untightening. DO
NOT USE POWER TOOLS!

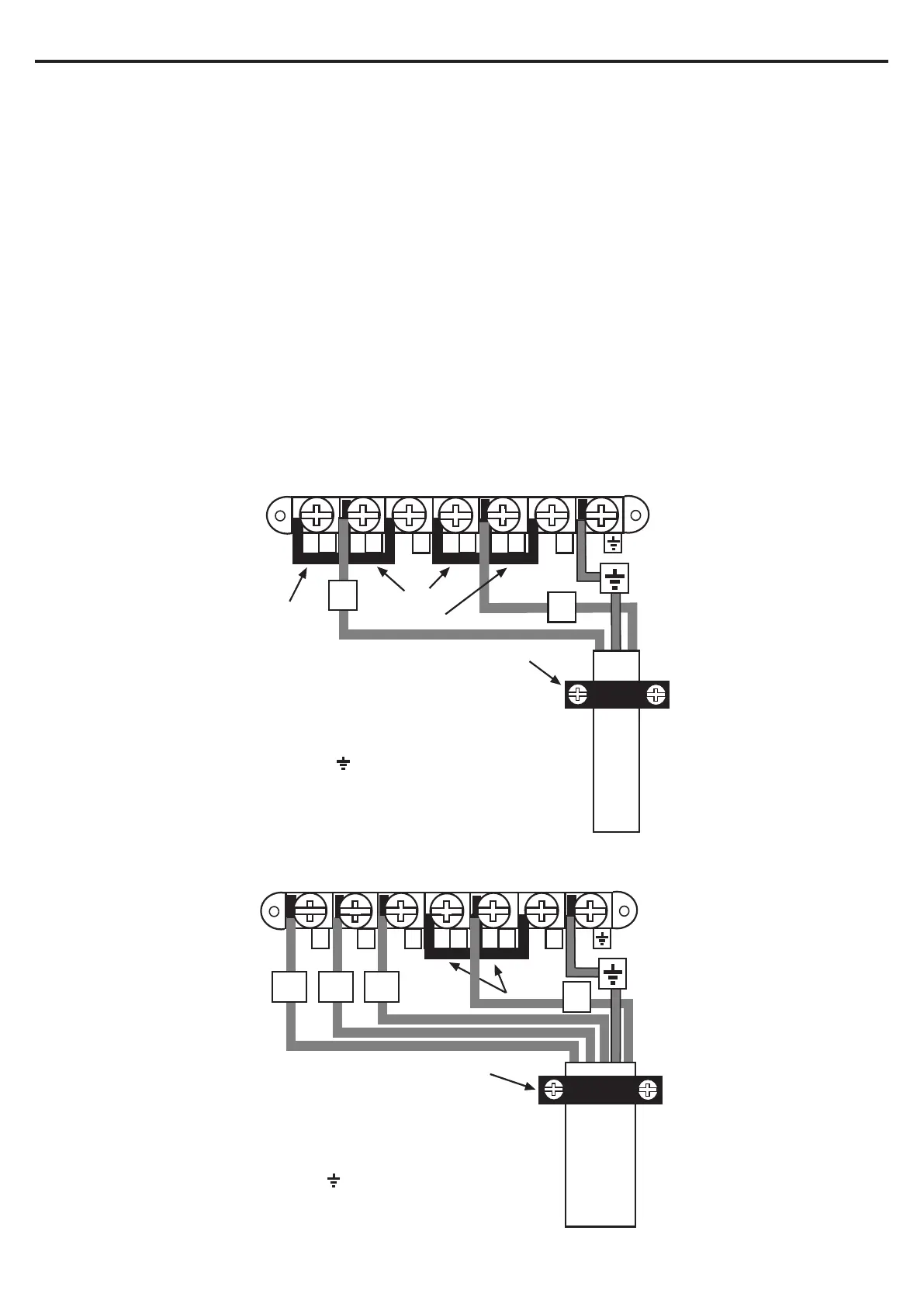

Single Phase Connection (240V ac 50Hz)
4
5
2
3
6
1
N
L
Shorting
Links
Shorting
Link
Connect cable to terminal block:
L to terminal 2.
N to terminal 5.
Earth to terminal.
Ensure shorting links are fitted between
terminals 1-2, 2-3, 4-5 and 5-6.
Ensure all screws are fully tightened.
Cable
Clamp
Three Phase Connection (240/415V 3N ac 50Hz)
4
5
2
3
6
1
N
Shorting
Links
Connect cable to terminal block:
Remove shorting links 1-2 and 2-3
L1, L2 and L3 to terminals 1, 2 and 3.
N to terminal 5.
Earth to terminal.
Ensure shorting links are fitted between
terminals 4-5 and 5-6.
Ensure all screws are fully tightened.
Cable
Clamp
L1
L2
L3
CONNECT TO THE ELECTRICITY AND GAS SUPPLY
