Installation Instructions
Unpack the components from inside the grill and oven: Check that
the following parts are present.
Grill pan and grid Meat pan
Main oven shelves (4) Literature
Griddle
Two rear wheels and two front feet are fitted which can be adjusted
up or down to set the height (900mm - 915mm) and level the cooker.

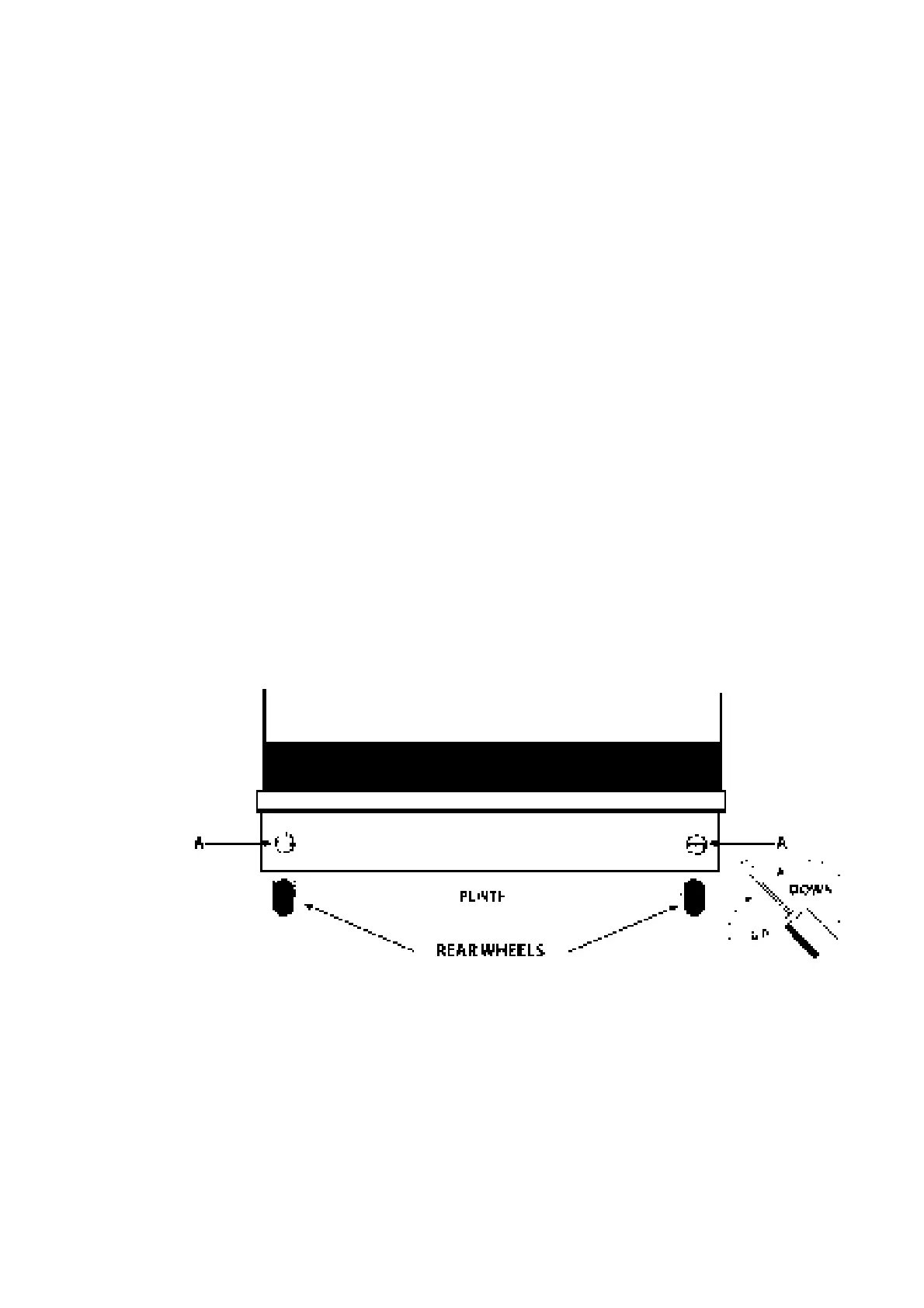

1. The rear wheels can be raised or lowered from the BACK of the
cooker by adjusting the levelling screws ‘A’ in the plinth.
2. The front feet can be simply screwed in or out to lower or raise
the front of the cooker.
Take care in moving the cooker as it is heavy. Some soft
floor coverings may get damaged if the cooker is not
moved carefully.
5
Unpacking the
cooker
Levelling
CAUTION:
Viewed from the rear
NOTE: This appliance should not be installed on a
platform.
