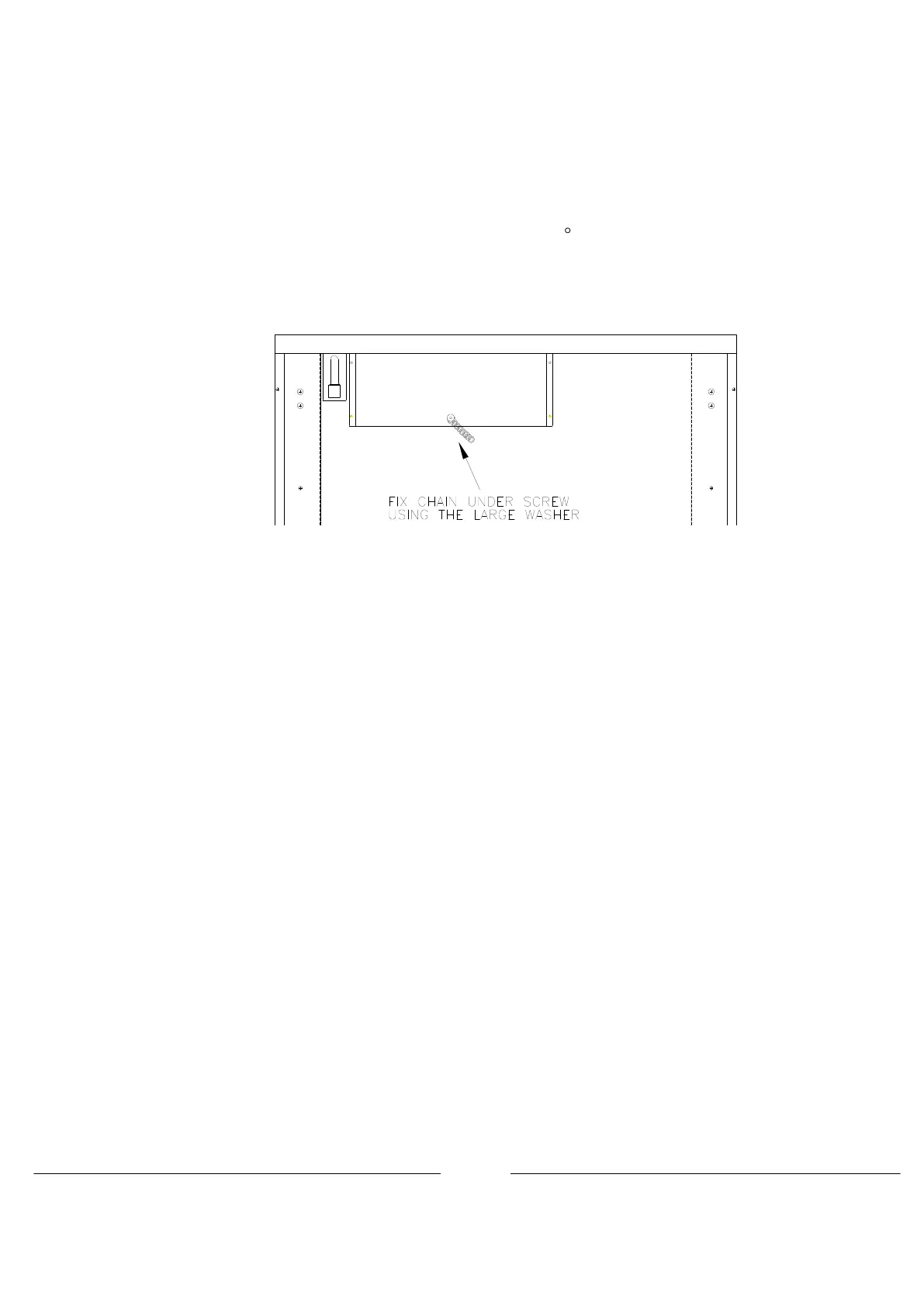

Stability Chain The cooker should be fitted with a stability device such as a proprietary stability
chain as shown in Figure 3 and firmly secured to the fabric of the building.
Whatever the position, remember to leave enough room for the cooker to be pulled
out for cleaning and service.
Connect to Gas Supply Connection to the appliance should be made with an approved appliance flexible
connection to BS669. A length of 1200mm is recommended.
The temperature at the rear of the appliance, which is likely to come into contact
with the flexible hose, does not exceed 70 C.
A Rp
1
/
2
elbow is fitted to the cooker.
If the position of the wall connection is within 250mm of the oven inlet, the loop of
hose will give maximum movement to the cooker.
Fig.3
Connecting to Electrical For your own safety, we recommend that your cooker is installed by a suitably
Supply qualified person.
The cooker should be installed in accordance with the latest edition of the
IEE Regulations.
WARNING: THIS APPLIANCE MUST BE EARTHED!
The cooker must be connected to the correct electrical supply as stated on the
rating plate, through a suitable cooker control unit incorporating a double pole
switch having a contact separation of at least 3mm in all poles, adjacent to (but not
above) the cooker. We recommend that the cooker circuit is rated to 30 Amps.
We also recommend that 4mm² P.V.C. (minimum 2.5mm² - maximum 6.0mm²)
Insulated twin and earth cable is used to connect the cooker control unit.
The power supply cable should conform to BS6004
IMPORTANT:
For access to the mains terminal block and for supply cable connection, it is
necessary to remove the access cover situated at the bottom of the back panel.
The live and neutral positions are marked with the letters L and N respectively,
marked in front of the terminal block. The earth terminal is marked by the earth
symbol. Secure the mains cable using the cable clamp.
Connect the mains cable as follows:-
Live to terminal L.
Neutral to terminal N
Earth to the earth stud.
Installation Instructions
