CONNECT TO THE ELECTRICITY SUP-
PLY - DUAL FUEL
The appliance must be installed by a
competent electrician using a double pole
control unit of 32 ampere minimum capac-
ity with 3mm minimum contact separation
at all poles.
We recommend that the appliance is con-
nectedbyaqualifiedelectricianwhoisa
member of the N.I.C.E.I.C. and who will
comply with the I.E.E. and local regula-
tion.
1. Access to the mains terminal is gained
by opening the terminal block cover at the
rear of the appliance (use a small flat-
bladed screwdriver).
2. Connection should be made with
6.0mm
2
flexible twin and earth cable.
3. First strip the wires, then push the
cable through the cable clamp in the ter-
minal block cover.
4. Connect the cable to the terminal block
and tighten the cable clamp screw (see
diagram).
5. Close the terminal box, ensuring that
the cover is engaged on the locking tabs.

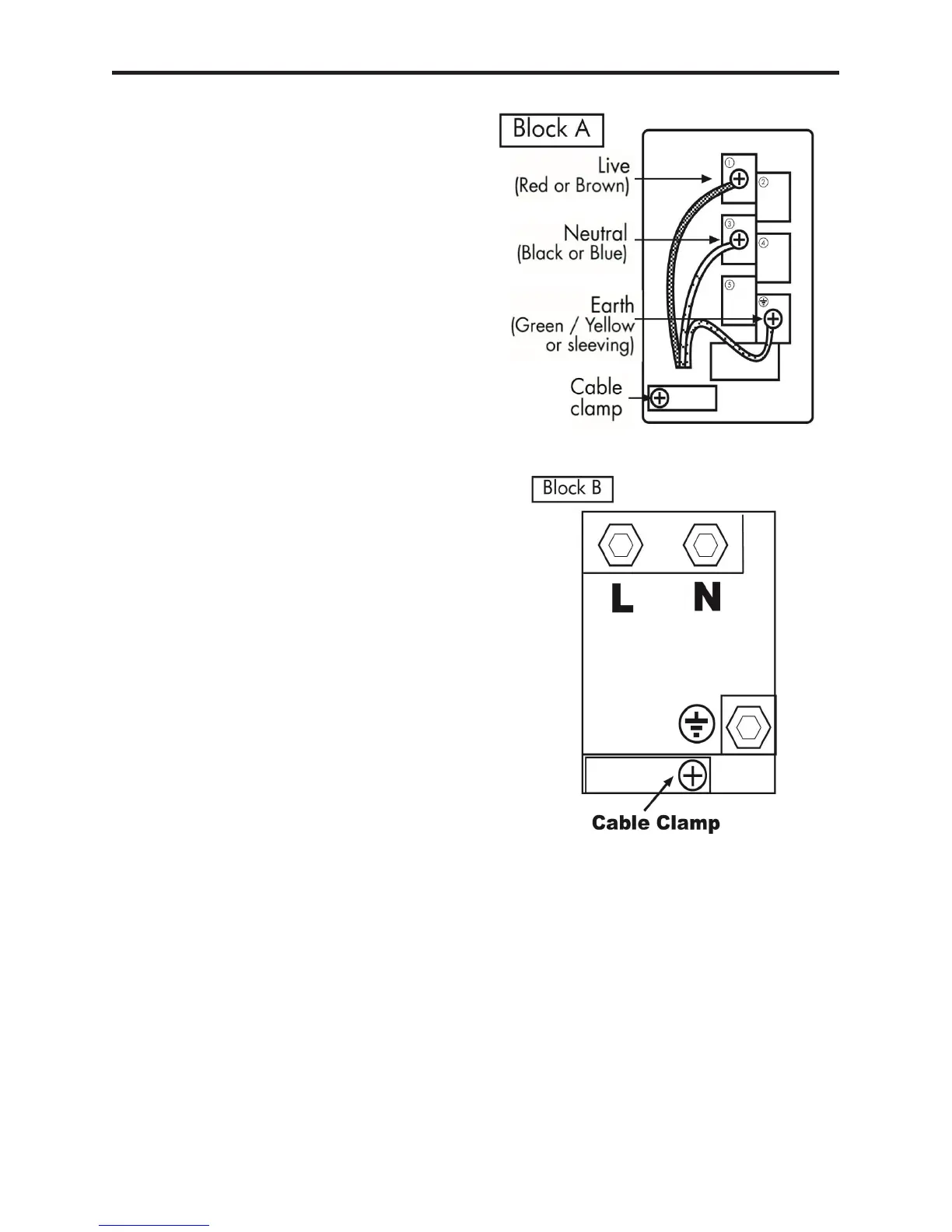

Your appliance will be fitted with one of
the two terminal blocks below, Block A
Block B
