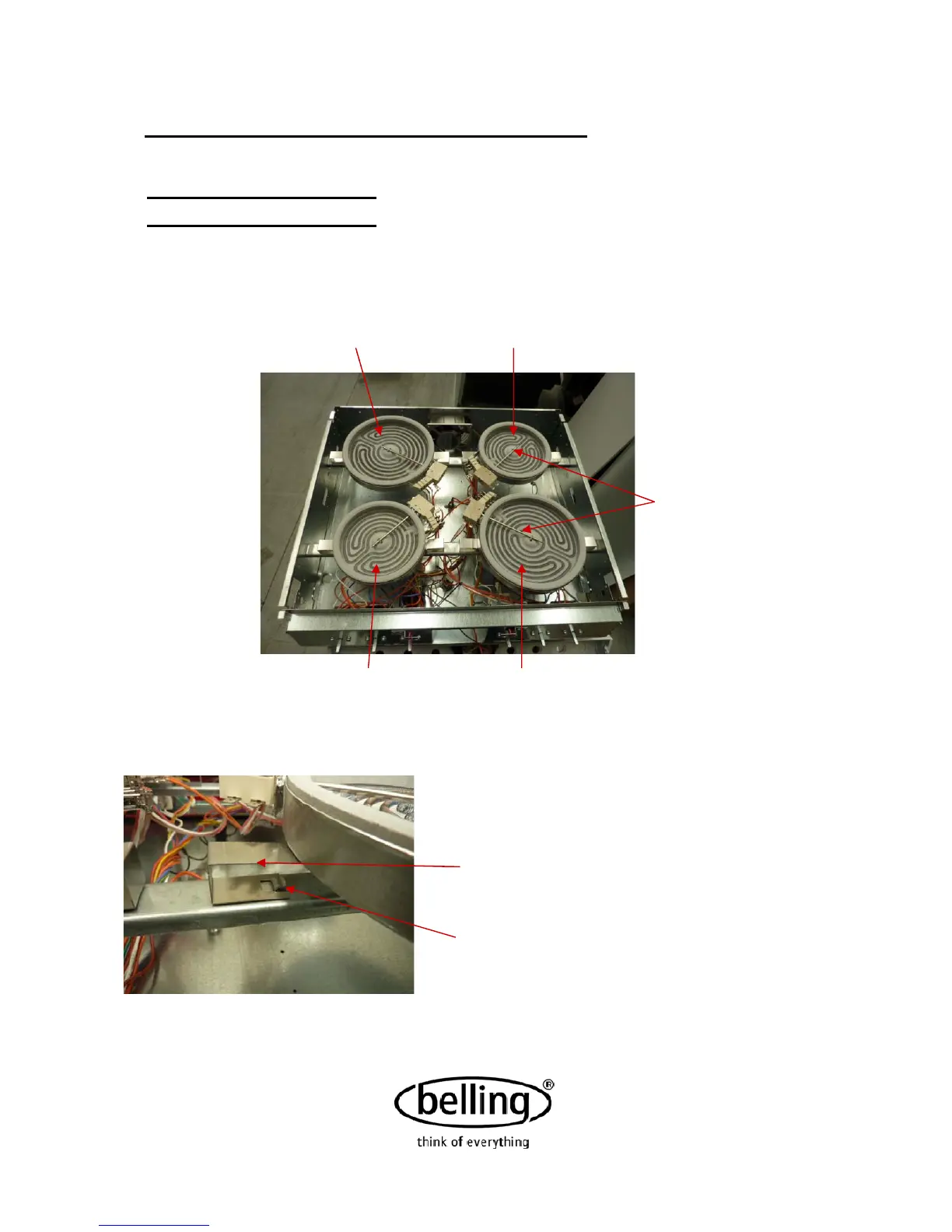

REPLACEMENT OF COMPONANTS
A) CERAMIC ELEMENTS
CERAMIC ELEMENT
1.7KW
CERAMIC ELEMENT
1.2 KW
CERAMIC ELEMENT
1.2 KW
CERAMIC ELEMENT
1.7 KW
TEMPERATURE
LIMITER (550 °C)
TEMPERATURE
LIMITERS (550°C)
FOLLOW STEP 3 AND REMOVE THE
HOB TOP
RELEASE THE CERAMIC ELEMENT
FROM THE CROSS-MEMBER BY
SQUEEZING THE CLIP AND
REMOVING FROM HOLDING TAB
