Bematech LC8810 - MOUNTING INSTRUCTIONS

To Next Page

To Previous Page

LC8810 User Manual V1.0

COMPONENT PLACEMENT

The following is recommended when you plan the LC8810 setup:

 Place the LC8810 so that:

1. The RESET button is accessible.

2. The beeps from the speakers can be heard.

3. The LED indicator on the front panel can be seen.

 Place the LC8810 above grill/counter level, out of the way of possible spills.

 Leave enough spaces around the unit for ventilation.

MOUNTING INSTRUCTIONS

1. TOOLS/MATERIALS REQUIRED

 Wood screws (4 pieces - 1/8" x 1" 1/2)

 Concrete wall anchors (2 pieces - 1/16" x 3/8")

 VESA mounting bracket or arm

 Measuring tape

 Electric drill with 5/16” and 3/8” Bits

 Phillips Screw driver

 Stud finder

2. PARTS

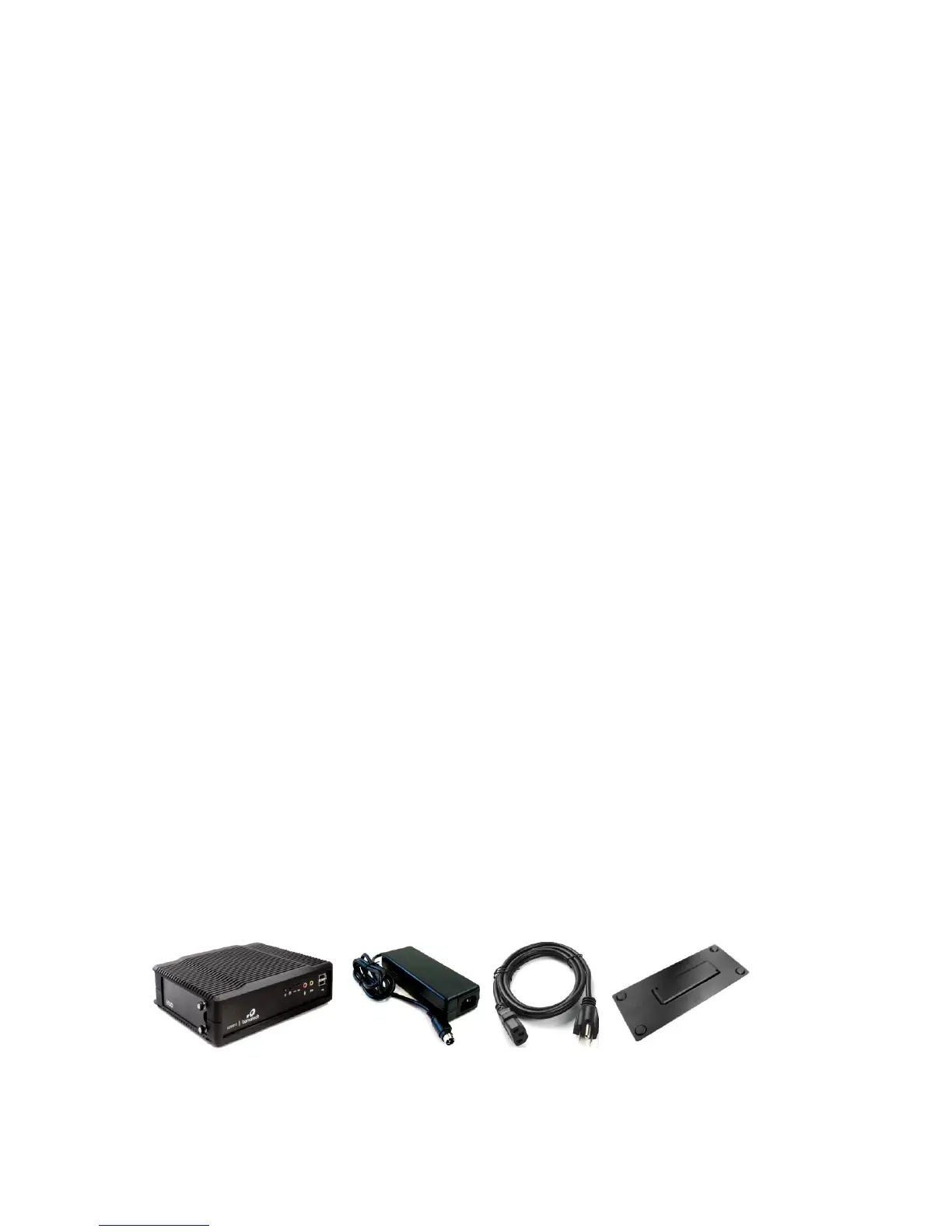

Parts included with the product package:

1. LC8810 unit

2. AC – DC power adaptor

3. Power cord

4. Vertical mounting stand

Picture 1
