Bematech LC8810 User Manual

LC8810 User Manual V1.0
19
SPECIFICATIONS
SYSTEM
CPU
Intel Baytrail-D J1900 2GHz
Quad Core processor with 2MB
L2 Cache
System Memory
Up to 8GB, DDR3L SODIMM x1
Mass Storage
Internal SATA HDD, SATA SSD,
or mSATA SSD
POWER SUPPLY
Single power input
12VDC
Power adapter input
100 to 240VAC, 1.5A max
50/60Hz
Power adapter output
12VDC 5A
MECHANICAL
Weight
4.9 lbs
Dimension (WxDxH)
8.15" x 6.93" x 2.44"
(207mm x 176mm x 62mm)
Housing
Die cast
SYSTEM
CPU
Intel Baytrail-D J1900 2GHz
Quad Core processor with 2MB
L2 Cache
System Memory
Up to 8GB, DDR3L SODIMM x1
Mass Storage
Internal SATA HDD, SATA SSD,
or mSATA SSD
POWER SUPPLY
Single power input
12VDC
Power adapter input
100 to 240VAC, 1.5A max
50/60Hz
Power adapter output
12VDC 5A
MECHANICAL
Weight
4.9 lbs
Dimension (WxDxH)
8.15" x 6.93" x 2.44"
(207mm x 176mm x 62mm)
Housing
Die cast
SYSTEM
CPU
Intel Baytrail-D J1900 2GHz
Quad Core processor with 2MB
L2 Cache
System Memory
Up to 8GB, DDR3L SODIMM x1
Mass Storage
Internal SATA HDD, SATA SSD,
or mSATA SSD
POWER SUPPLY
Single power input
12VDC
Power adapter input
100 to 240VAC, 1.5A max
50/60Hz
Power adapter output
12VDC 5A
MECHANICAL
Weight
4.9 lbs
Dimension (WxDxH)
8.15" x 6.93" x 2.44"
(207mm x 176mm x 62mm)
Housing
Die cast
SYSTEM
CPU
Intel Baytrail-D J1900 2GHz
Quad Core processor with 2MB
L2 Cache
System Memory
Up to 8GB, DDR3L SODIMM x1
Mass Storage
Internal SATA HDD, SATA SSD,
or mSATA SSD
POWER SUPPLY
Single power input
12VDC
Power adapter input
100 to 240VAC, 1.5A max
50/60Hz
Power adapter output
12VDC 5A
MECHANICAL
Weight
4.9 lbs
Dimension (WxDxH)
8.15" x 6.93" x 2.44"
(207mm x 176mm x 62mm)
Housing
Die cast

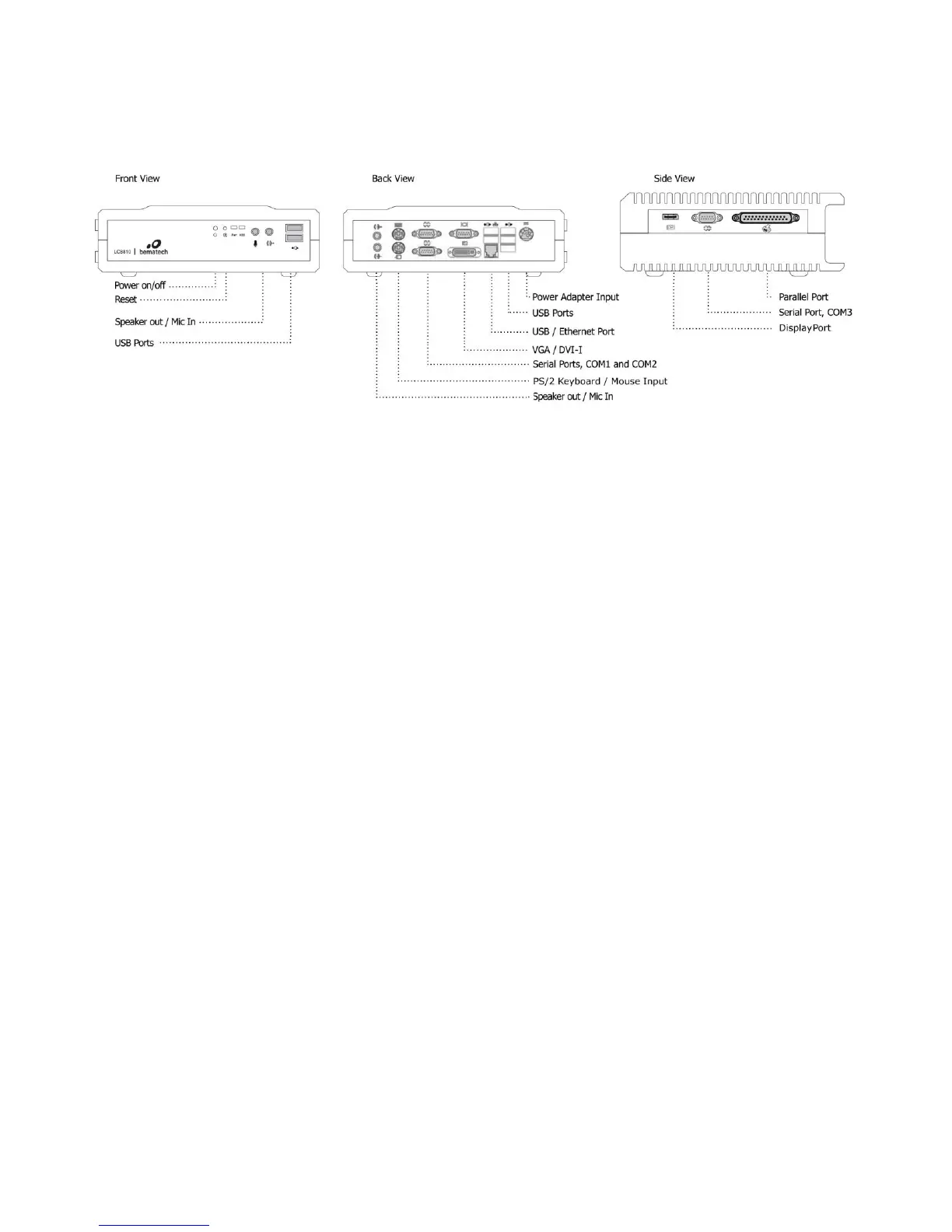

I/O PORTS
Video
1920x1080 pixels max
VGA, DVI-I and DisplayPort
Network Interface
10/100/1000 Mbits Ethernet
Network boot capable
Keyboard/Mouse
PS/2 mini-DIN6 connectors
USB Ports
USB 2.0 ports x6, USB 3.0 port x1
Serial Port
DB9 x3 (COM1 to COM3)
Optional +5V/+12V power at pin 9
Parallel Port
DB25 x1 (LPT1)
Audio
Mic in x2 and Speaker out x2 with
2W power amplifier
Expansion Slot
Mini PCIe socket (support WiFi
card)
ENVIRONMENT
Operating temperature
Relative humidity
0°C to 40°C
5% to 90%, non-condensing
Storage temperature
Relative humidity
0°C to 60°C
5% to 80%, non-condensing
I/O PORTS
Video
1920x1080 pixels max
VGA, DVI-I and DisplayPort
Network Interface
10/100/1000 Mbits Ethernet
Network boot capable
Keyboard/Mouse
PS/2 mini-DIN6 connectors
USB Ports
USB 2.0 ports x6, USB 3.0 port x1
Serial Port
DB9 x3 (COM1 to COM3)
Optional +5V/+12V power at pin 9
Parallel Port
DB25 x1 (LPT1)
Audio
Mic in x2 and Speaker out x2 with
2W power amplifier
Expansion Slot
Mini PCIe socket (support WiFi
card)
ENVIRONMENT
Operating temperature
Relative humidity
0°C to 40°C
5% to 90%, non-condensing
Storage temperature
Relative humidity
0°C to 60°C
5% to 80%, non-condensing
I/O PORTS
Video
1920x1080 pixels max
VGA, DVI-I and DisplayPort
Network Interface
10/100/1000 Mbits Ethernet
Network boot capable
Keyboard/Mouse
PS/2 mini-DIN6 connectors
USB Ports
USB 2.0 ports x6, USB 3.0 port x1
Serial Port
DB9 x3 (COM1 to COM3)
Optional +5V/+12V power at pin 9
Parallel Port
DB25 x1 (LPT1)
Audio
Mic in x2 and Speaker out x2 with
2W power amplifier
Expansion Slot
Mini PCIe socket (support WiFi
card)
ENVIRONMENT
Operating temperature
Relative humidity
0°C to 40°C
5% to 90%, non-condensing
Storage temperature
Relative humidity
0°C to 60°C
5% to 80%, non-condensing
I/O PORTS
Video
1920x1080 pixels max
VGA, DVI-I and DisplayPort
Network Interface
10/100/1000 Mbits Ethernet
Network boot capable
Keyboard/Mouse
PS/2 mini-DIN6 connectors
USB Ports
USB 2.0 ports x6, USB 3.0 port x1
Serial Port
DB9 x3 (COM1 to COM3)
Optional +5V/+12V power at pin 9
Parallel Port
DB25 x1 (LPT1)
Audio
Mic in x2 and Speaker out x2 with
2W power amplifier
Expansion Slot
Mini PCIe socket (support WiFi
card)
ENVIRONMENT
Operating temperature
Relative humidity
0°C to 40°C
5% to 90%, non-condensing
Storage temperature
Relative humidity
0°C to 60°C
5% to 80%, non-condensing

Bematech LC8810 Specifications

General

Brand	Bematech
Model	LC8810
Category	Desktop
Language	English
