Bematech MP200 - Interface Connectors

MP200 USER MANUAL
Page 12

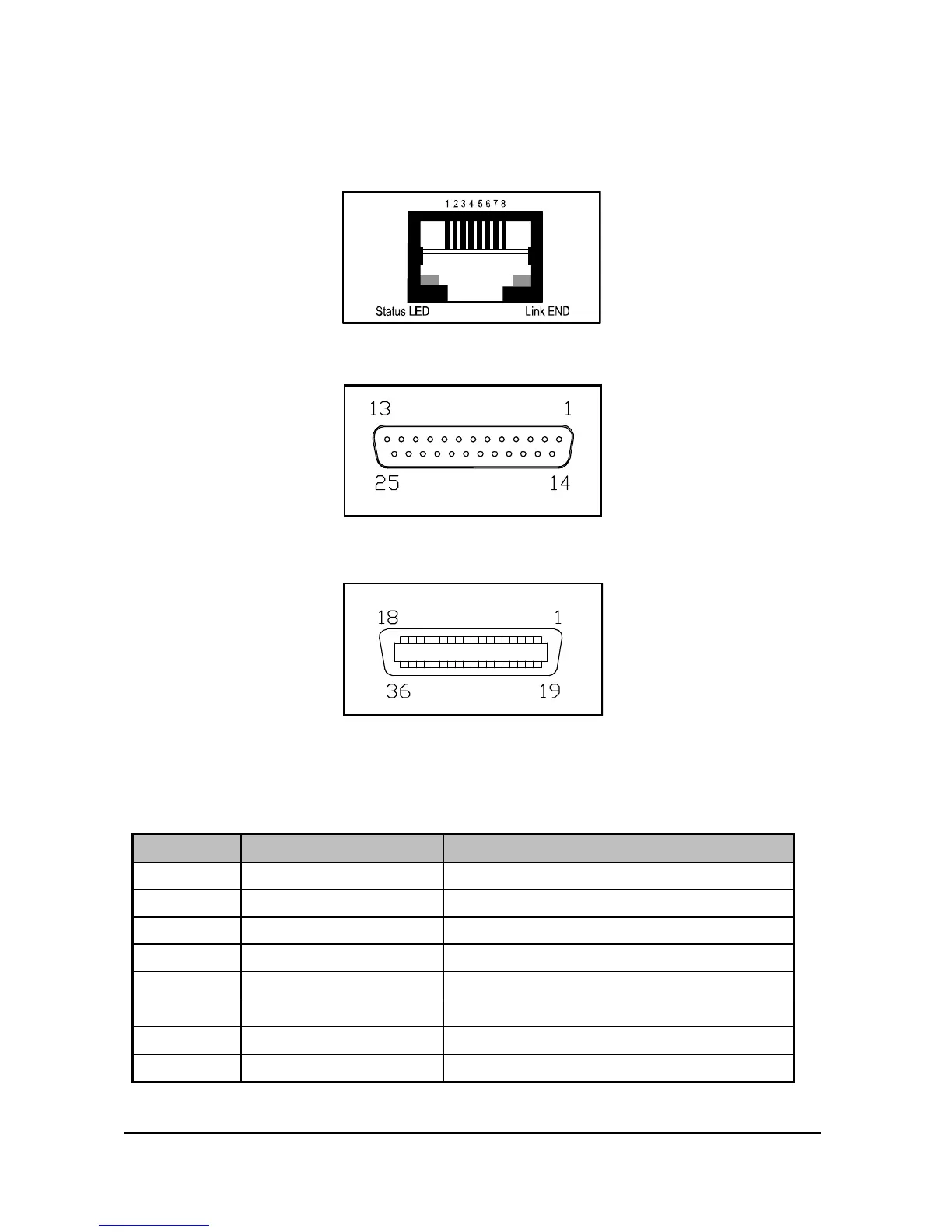

6. Interface Connectors
Ethernet
D-SUB 25 Female Serial
Centronics Parallel
Ethernet interface
PIN
SIGNAL
I/O
1
Data Out +
Output Data +
2
Data Out -
Output Data +
3
GND
Ground
4
Data IN +
Input Data +
5
Data IN -
Input Data -
6
N.C
7
N.C
8
N.C
