Bematech MP200 - Cash Drawer Connector

MP200 USER MANUAL
Page 14
7. Cash Drawer Connector
The MP200 can operate two cash drawers with a 6 pin RJ-11 modular connector. The
driver is capable of supplying a maximum current of 1.0A for 510 ms or less, when not
printing.

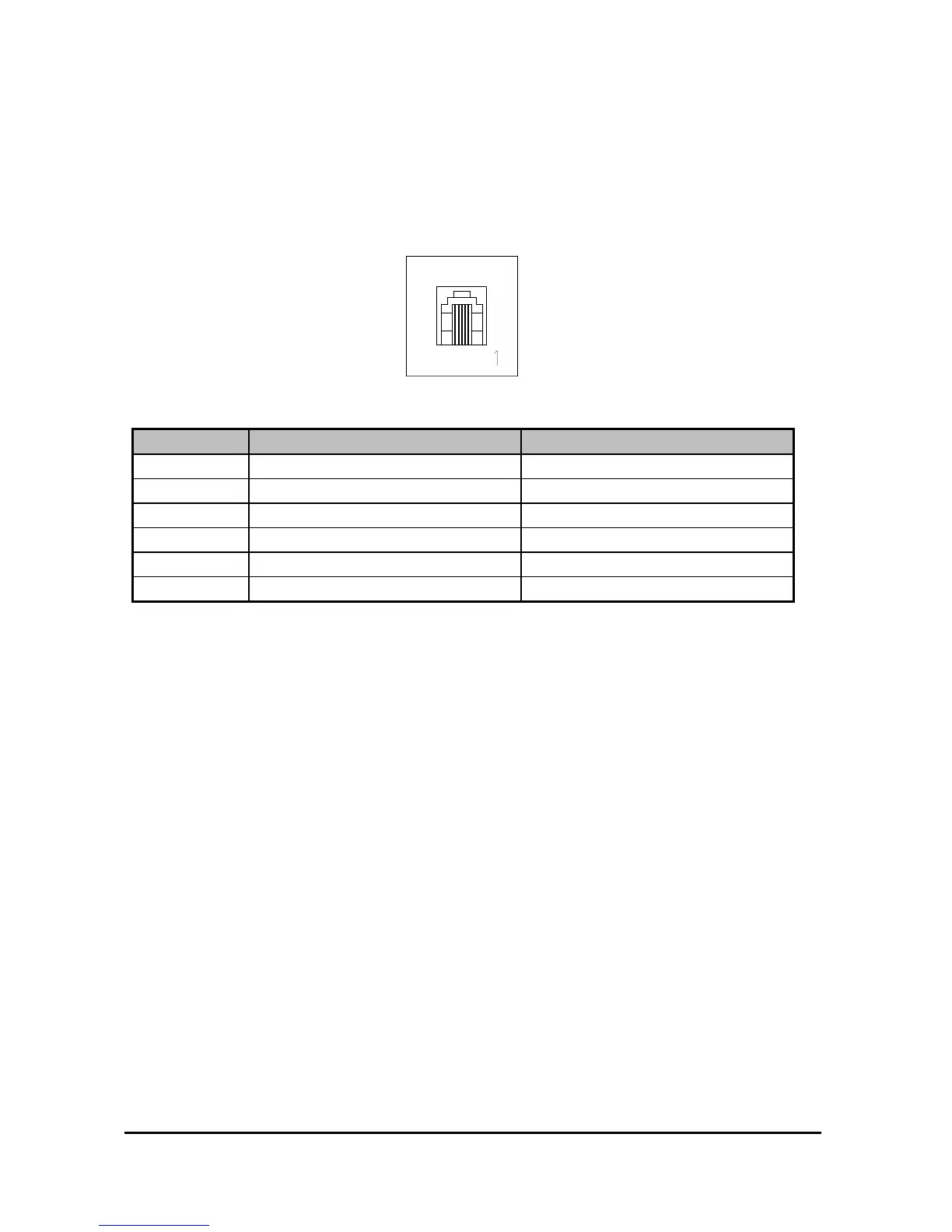

Cash Drawer Connector
PIN
SIGNAL
DESCRIPTION
1
Signal GND
-
2
Drawer kick-out drive signal 1
Output
3
Drawer open/close signal
Input
4
+24V
-
5
Drawer kick-out drive signal 2
Output
6
Signal GND
-
