3.4 HOSE CONNECTIONS (BP271 ONLY)
1. Insert adapters into each end of the suction and discharge hoses.
2. Attach O-Rings to the adapters.
3. Tighten the hose clamp around the discharge hose.
4. Insert strainer into the suction hose and tighten the hose clamp around the
hose.
5. Insert adapters into the appropriate pump ttings.

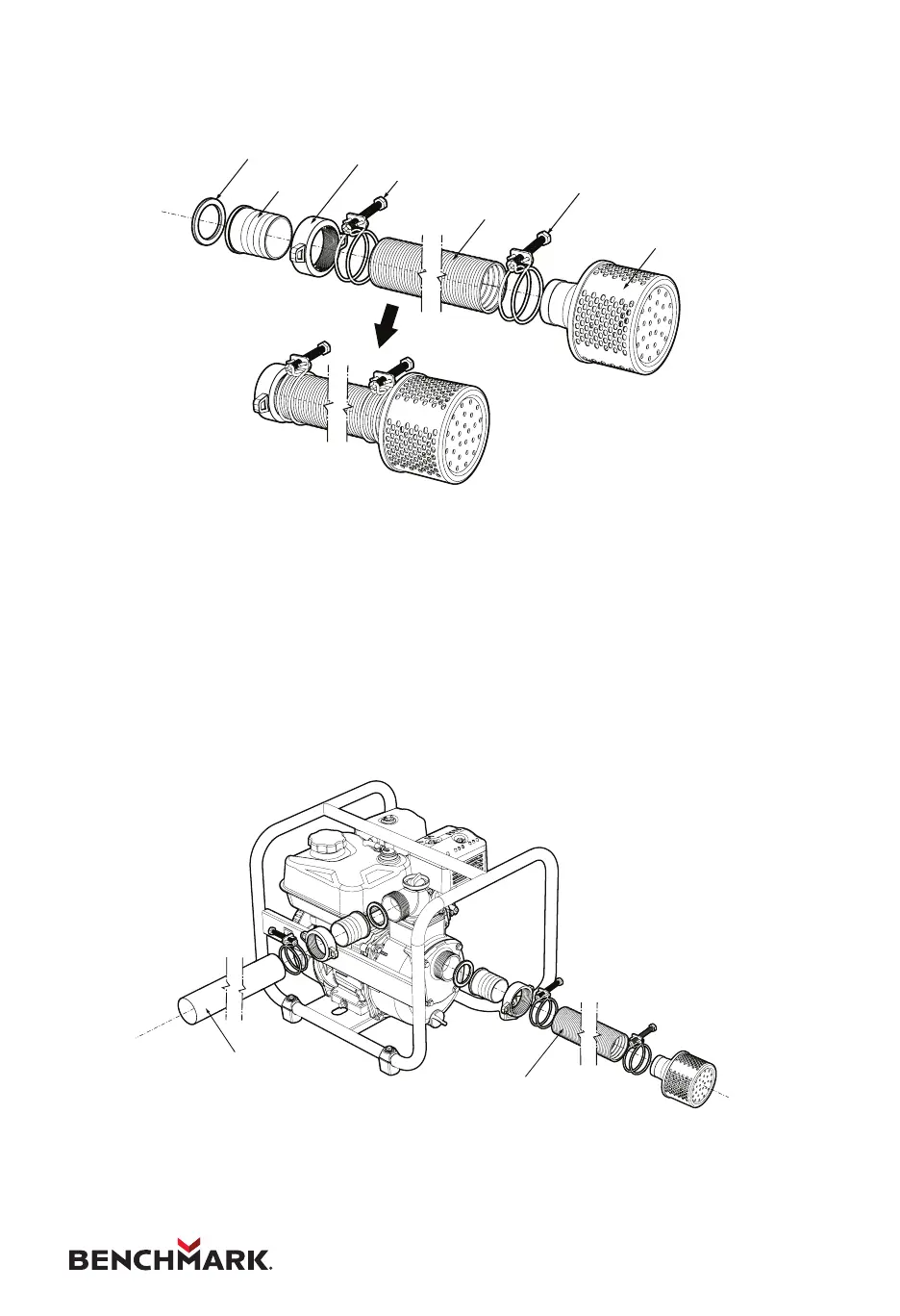

Rubber Seal
Hose Coupler
Hose Clamp
Suction Hose
(not included)
Hose Clamp
Strainer
Hose Coupler Ring
Suction Hose
(not included)
Discharge Hose
(not included)
Rubber Seal
Hose Coupler
Hose Clamp
Suction Hose
(not included)
Hose Clamp
Strainer
Hose Coupler Ring
Suction Hose
(not included)
Discharge Hose
(not included)
