Benchmark RD 532i - Accessories; Casing Dimensions

6 720 611 447 GB (03.11)
Details of the appliance
5
1.4 Accessories
• Standard horizontal flue kit at 100 mm outside
diameter for flues up to 4 m in length (3.5m for the R
40 HE).
• Flue duct kits for horizontal (125 mm outside
diameter) for flue lengths up to 13m or 10m (RD537i
& RD542i) and vertical flue systems for flue lengths
up to 13.7m or 10.7m (RD537i & RD542i). Fitting
instructions are sent with these kits.

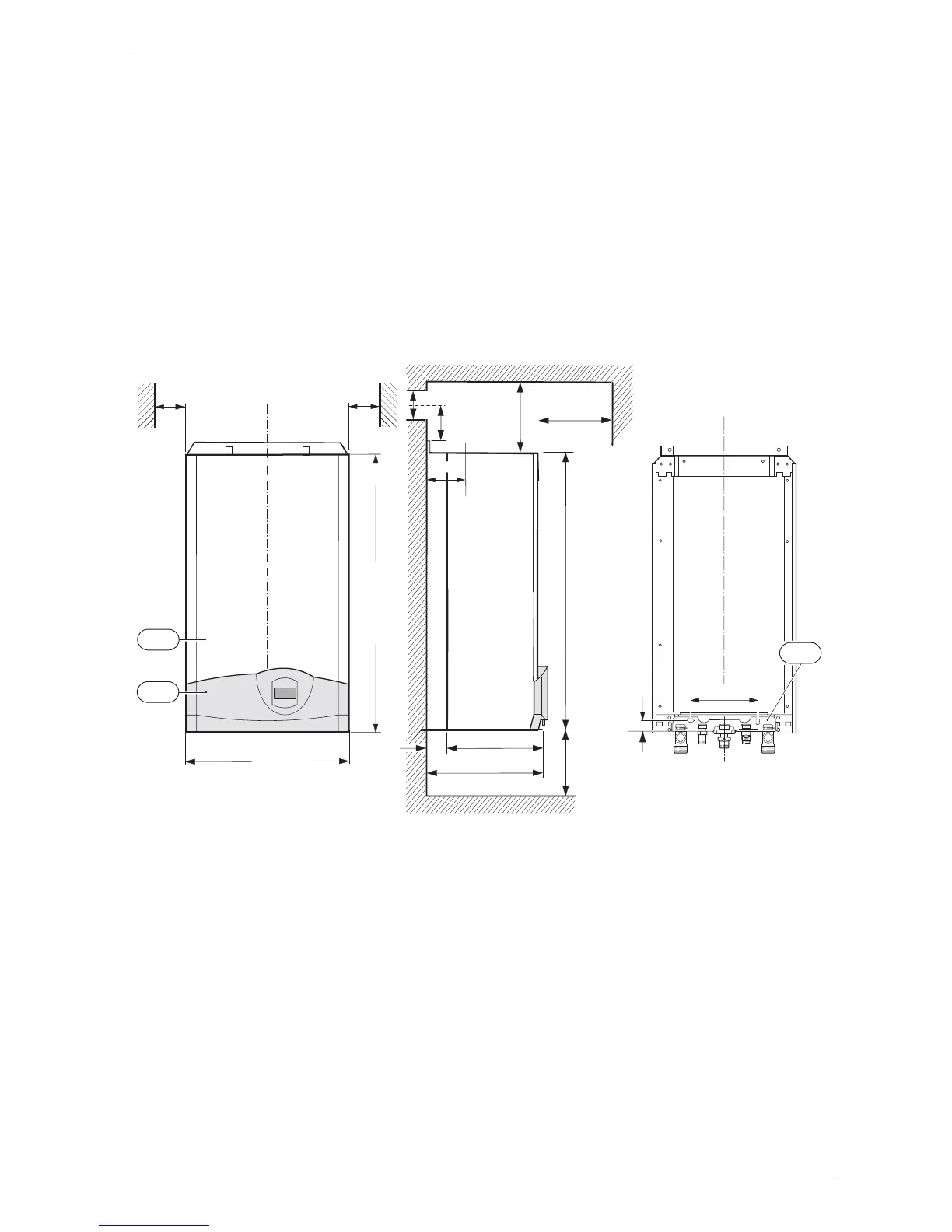

1.5 Casing dimensions
Fig. 1
13 Manifold assembly
101 Outer case
103 Facia cover
X Standard Concentric Horizontal Flue System: min. 160 mm
Alternative Concentric Flue System: min. 220 mm
Y Standard Concentric Horizontal Flue System: 40 mm
Alternative Concentric Flue System: 70 mm
Z Standard Concentric Horizontal Flue System: 105 mm
Alternative Concentric Flue System: 130 mm
* For servicing the appliance
Note: Horizontal flue only: dimension X may need to increase due
to the incline of the flue.
6 720 610 599 - 01.TD
200
30
13
395
360
850
35
X
120
Y
Z
200
*
*
600
m
in .
10*
m
in .
440
850
101
103
10*
