KING
KY 196/196E/KY 197/197E
VHF COMMUNICATIONS TRANSCEIVER
I-
I
i
9.000
(22.86)
-I
-,
.610
1(1.549)
I
.187 (.47) DIA.
6 PLACES
-
10.176
(25.847)
---------
~
4.200
(10.668)
/
\
\
,
6.312
(16.032)
~--
tjl
i
~.
I (~"
I '
,
: .600
MAX
, (1524)
1.480
(3.759)
NOTES\
I. DIMENSIONS IN
( )
ARE IN CENTIMETERS.
2. WEIGHT\ 3 I LBS. (.1.406
KQ)
3. TOLERANCES FOR PANEL CUTOUTS; ~..~go(:'<6t50)
4 WHEN INSTALLING TWO OR MORE PANEL MOUNTED UNITS IN A STACK, THE MOUNTING TRAYS
SHALL BE SPACED .050 INCHES (.127
CM'>
APART. NEWER STYLE MOUNTING TRAYS HAVE HAD
.025 INCH (D63CM) DIMPLES BUILT IN, TOP AND BOTTOM,BOTH SIDES, SO THAT TWO NEW STYLE
TRAYS WILL AUTOMATICALLY BE SPACED PROPERLY.
5. TO DETERMINE STACK HEIGHT, USE THE HEIGHT DIMENSION FOR A FRONT AIRCRAFT PANEL MOUNT.

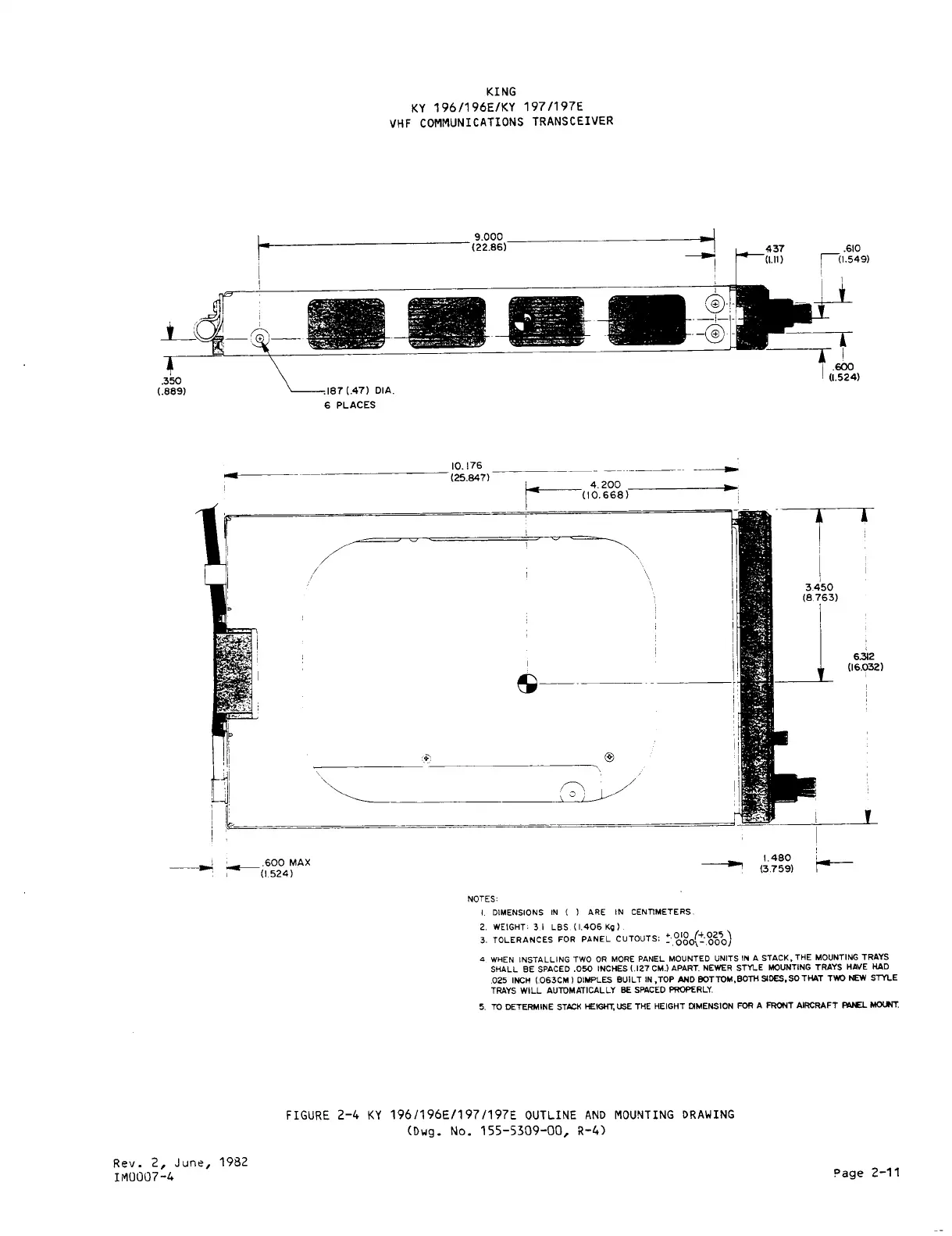

FIGURE 2-4 KY 196/196E/197/197E OUTLINE AND MOUNTING DRAWING
(Dwg. No. 155-5309-00, R-4)
Rev. 2, June, 1982
IM0007 -4
Page 2-11
