Bendix/King KY 197 - 1.3 TECHNICAL CHARACTERISTICS

KY 1961196E:
(27.5V)
Receive
-
.4AMP
Transmit
-
5.0AMP
KY 197/197E:
(13.75V)
Receive
-
.~AMP
Transmit
-
6.0AMP
KING
KY 196/196E/KY 197/197E
VHF COMMUNICATIONS TRANSCEIVER

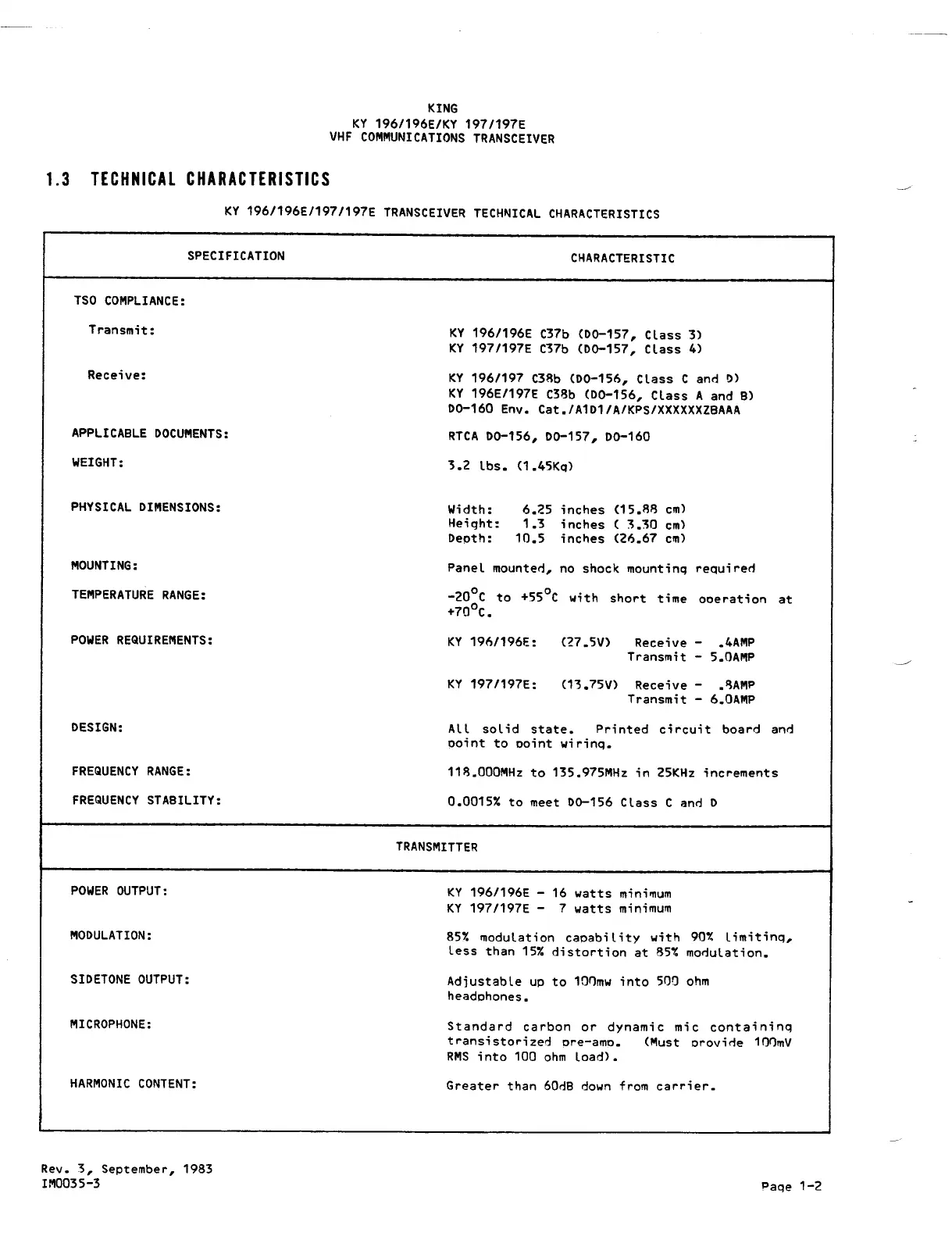

1.3 TECHNICAL CHARACTERISTICS
KY 196/196E/197/197E TRANSCEIVER TECHNICAL CHARACTERISTICS
SPECIFICATION
CHARACTERISTIC
TSO COMPLIANCE:
Transmit:
KY 196/196E C37b (00-157, Class 3)
KY 197/197E C37b (00-157, Class 4)
KY 196/197 C38b (00-156, Class C and D)
KY 196E/197E C38b (DO-156, Class A and B)
00-160 Env. Cat./A1D1/A/KPS/XXXXXXZBAAA
RTCA 00-156, DO-157, 00-160
Receive:
APPLICABLE DOCUMENTS:
WEIGHT:
3.2 lbs. (1.45Kq)
PHYSICAL DIMENSIONS:
Width:
Height:
Depth:
6.~5 inches (15.88 cm)
1.3 inches
(
3.30 cm)
10.5 inches (26.67 cm)
MOUNTING:
TEMPERATURE RANGE:
Panel mounted, no shock mounting required
-200C to +550C with short time operation at
+700C.
POWER REQUIREMENTS:
DESIGN:
All solid state. Printed circuit board and
point to point wirinq.
FREQUENCY RANGE:
118.000MHz to 135.975MHz in 25KHz increments
FREQUENCY STABILITY:
0.0015% to meet 00-156 Class C and D
TRANSMITTER
POWER OUTPUT:
KY 196/196E - 16 watts minimum
KY 197/197E - 7 watts minimum
MODULATION:
85% modulation capabi l ity with 90Y. l imitinq,
less than 15% distortion at 85% modulation.
SIDETONE OUTPUT:
Adjustable up to 1a~mw into 500 ohm
headphones.
MICROPHONE:
Standard carbon or dynamic mic containinq
transistorized pre-amp. (Must provide 10~mV
RMS into 100 ohm load).
HARMONIC CONTENT:
Greater than 60dB down from carrier.
Rev. 3, September, 1983
IM0035-3
Paqe 1-2
