Bendix/King KY 197 - 1.4 UNITS AND ACCESSORIES SUPPLIED; 1.5 ACCESSORIES REQUIRED, BUT NOT SUPPLIED; 1.6 LICENSE REQUIREMENTS

PART NUMBER DESCRIPTION
030-0101-02 Conn BNC
030-1094-55
Conn
Molex
(20
Pin)
030-1107-21
Conn Pin (21)
057-2193-01
Decal
Comm 1
057-2193-02
Decal Comm 2
089-2013-37
Nut
Hex #6-32
089-2191-22
Nut Esna #6-32
089-2353-01
Clip Nut 6-32
089-5903-07 Screw PHP (4-40x7/16)
089-5907-08 Screw PHP
#6-32 x 1/2
089-6012-08 Screw FHP
(6-32x1/2)
089-8094-30
Flat Washer
090-0019-07 Retaining Ring
091-0072-02
Cable Clamp

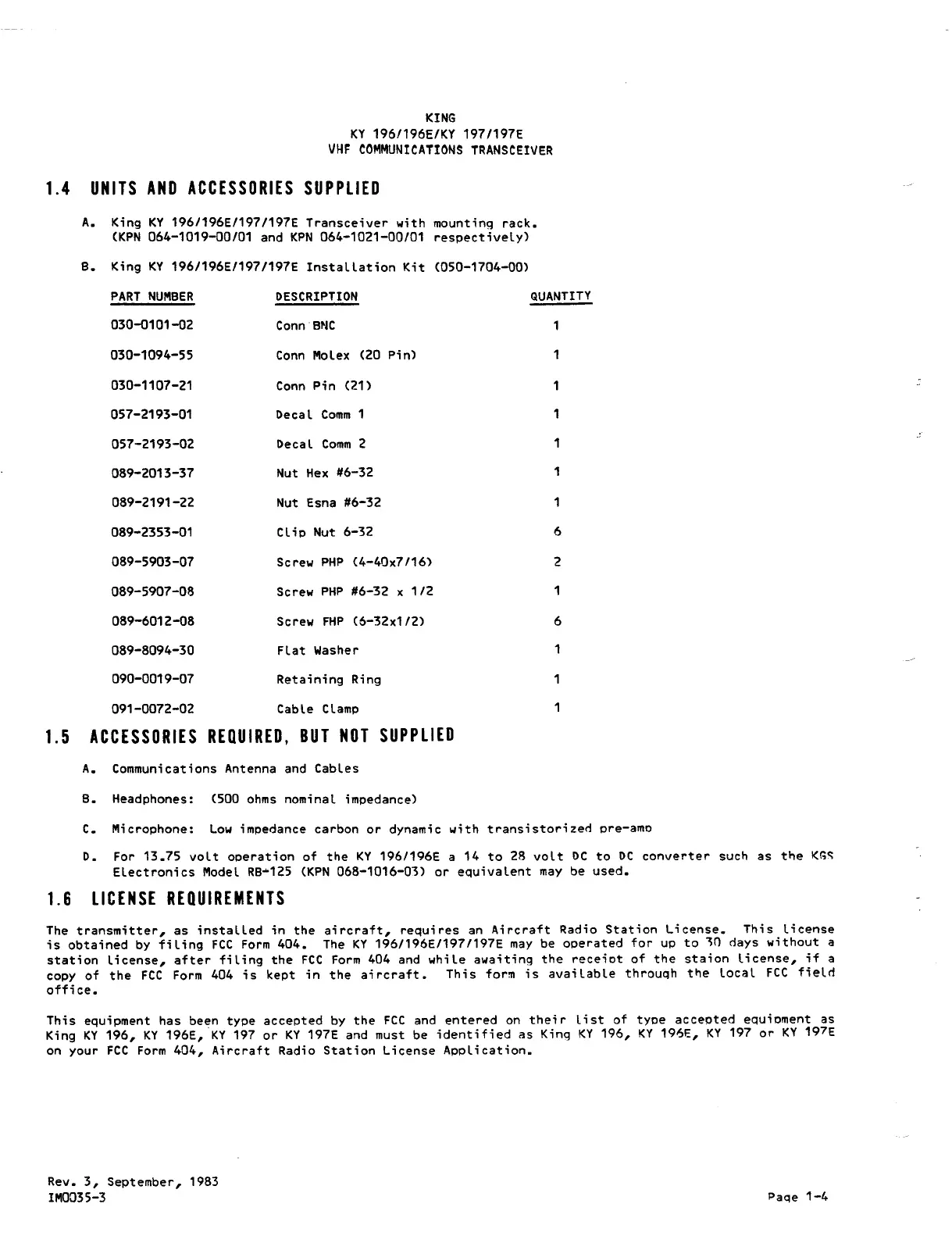

KING
KY 196/196E/KY 197/197E
VHF ~OMMUNI~ATIONS T~ANS~EIVE~
1.4 UNITS AND ACCESSORIES SUPPLIED
A. King KY 196/196E/197/197E Transceiver with mounting rack.
(KPN 064-1019-00/01 and KPN 064-1021-00/01 respectively)
B. King KY 196/196E/197/197E Installation Kit (050-1704-00)
QUANTITY
1
1
1
1
6
2
1
6
1
1.5 ACCESSORIES REQUIRED, BUT NOT SUPPLIED
A. Communications Antenna and Cables
B. Headphones: (500 ohms nominal impedance)
C. Microphone: Low impedance carbon or dynamic with transistorized pre-amo
D. For 13.75 volt operation of the KY 196/196E a 14 to 28 volt DC to DC converter such as the Kr,~
Electronics Model RB-125 (KPN 068-1016-03) or equivalent may be used.
1.6 LICENSE REQUIREMENTS
The transmitter, as instaLLed in the aircraft, requires an Aircraft Radio Station License. This License
is obtained by fiLing FCC Form 404. The KY 196/196E/197/197E may be operated for up to ~n days without a
station license, after fiLing the FCC Form 404 and while awaiting the receipt of the staion license, if a
copy of the FCC Form 404 is kept in the aircraft. This form is avaiLable throuqh the LocaL FCC field
office.
This equipment has been type accepted by the FCC and entered on their List of type accepted equioment as
King KY 196, KY 196E, 'KY 197 or KY 197E and must be identified as King KY 196, KY 196E, KY 197 or KY 197E
on your FCC Form 404, Aircraft Radio Station License AppLication.
Rev. 3, September, 1983
IM0035-3
Paqe 1-4
