Bendix/King KY 197 - 3.1.4 REMOTE FREQUENCY TRANSFER; 3.1.5 REMOTE CHANNEL INCREMENT

KING
KY 196/196E/KY 197/197E
VHF COMMUNICATIONS TRANSCEIVER
3.1.4 REMOTE FREQEUNCY TRANSFER
This feature requires the installation of a remote mounted momentary contact switch. DeDressinq the
remote transfer button will transfer frequencies from the STANDBY win~ow to the USE window and
vice-versa.
3.1.5 REMOTE CHANNEL INCREMENT
This feature requires the installation of a remote mounted momentary contact switch. To use this
feature the radio must fi rst be in the Channel Mode of ooeration. Deoressinq the remote channel
increment button will then cause the radio to increment through the memory channels. Channels will roll
over from 9 to O. Any channel previously Drogrammed with dashes (---) will be skiDDed and will not be
displayed.
ACTIVE
FREQ. DISPLAY
I
STANDBY
FREQ. DISPLAY
ACTIVE-STANDBY
TRANSFER BUTTON
ON/OFF VOL
PUll-SQ. TEST
MHz KNOB
KHz KNOB
(
KNOB IN-50KHz STEPS
)
KNOB OUT-25KHz STEPS

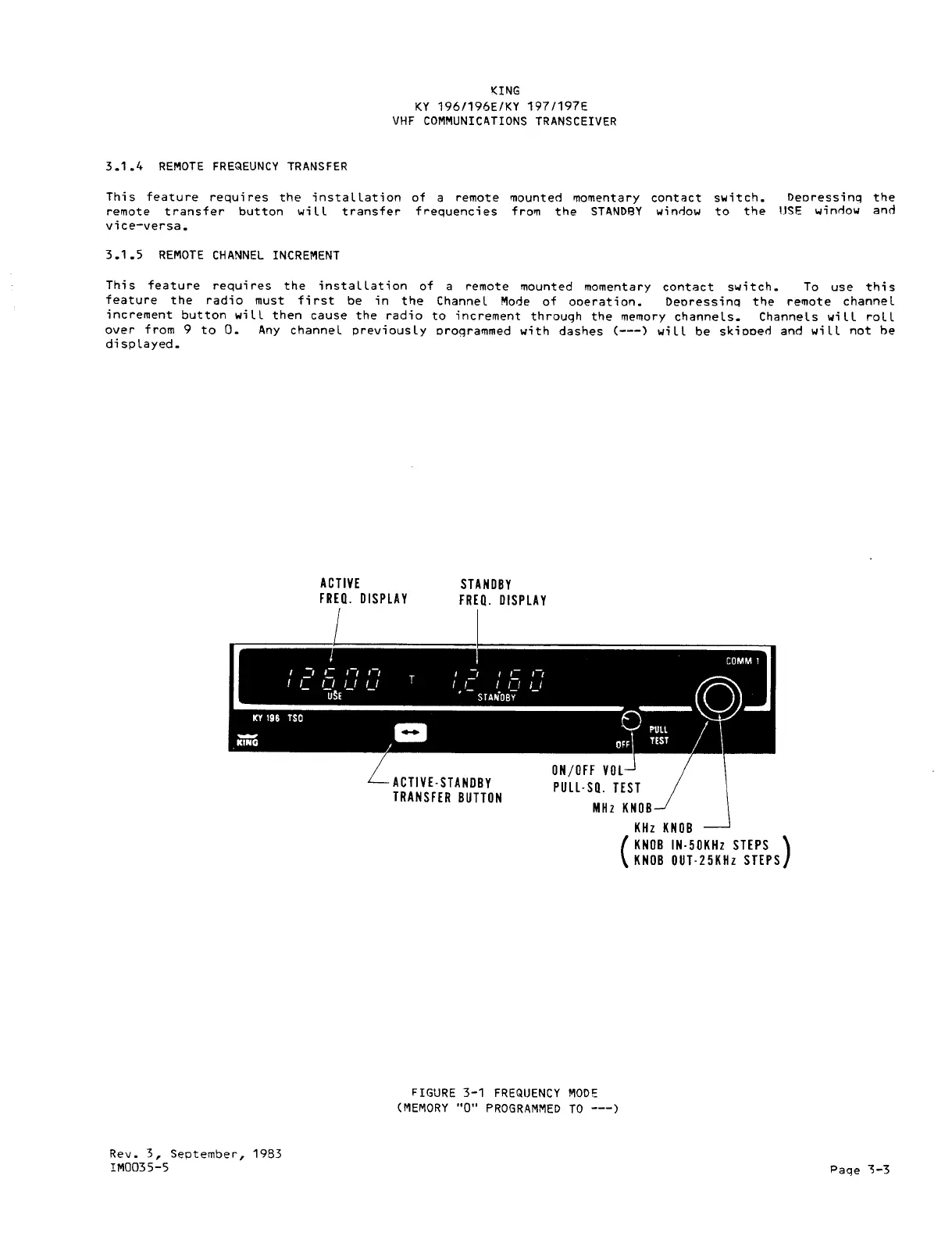

FIGURE 3-1 FREQUENCY MODE
(MEMORY
"0" PROGRAMMED TO ---)
Rev. 3, September, 1983
IM0035-5
Page ~-3
