Troubleshooting: Using Hand-Held or
PC-Based Diagnostic Tools
USING HAND-HELD OR PC-BASED
DIAGNOSTICS
Troubleshooting and diagnostic trouble code clearing, as
well as beginning a reconguration, may also be carried out
using hand-held or PC-based diagnostic tools such as the
Bendix
®
Trailer Remote Diagnostic Unit (TRDU
™
), Bendix
®
ACom
™
Diagnostics software, or the ProLink tool.
BENDIX ABS DIAGNOSTIC TOOLS
Bendix
®
ACom
™
Diagnostic Software
Bendix
®
ACom
™
Diagnostic Software (version 4.0 or higher)
is an RP-1210A compliant PC-based diagnostic software
program that provides the highest level of diagnostic
support for the TABS-6 module. With Bendix
®
ACom
™
Diagnostic Software, maintenance personnel can:
• Obtain fault information (both active and inactive
faults)
• Retrieve event history
• Clear inactive faults and event history
• Verify ECU conguration
• Perform system and component tests
• Read/write customer information on scratch pads
• Save and print information
• Receive troubleshooting assistance
When diagnosing the TABS-6 module using a PC and
Bendix
®
ACom
™
Diagnostic Software, the computer’s serial
or parallel port can be connected to the vehicle’s diagnostic
connector through a RP-1210A compliant communications
device.
For more information on the Bendix
®
ACom
™
Diagnostic
Software, or RP-1210A compliant tools, contact Bendix or
refer to your local authorized Bendix parts outlet.

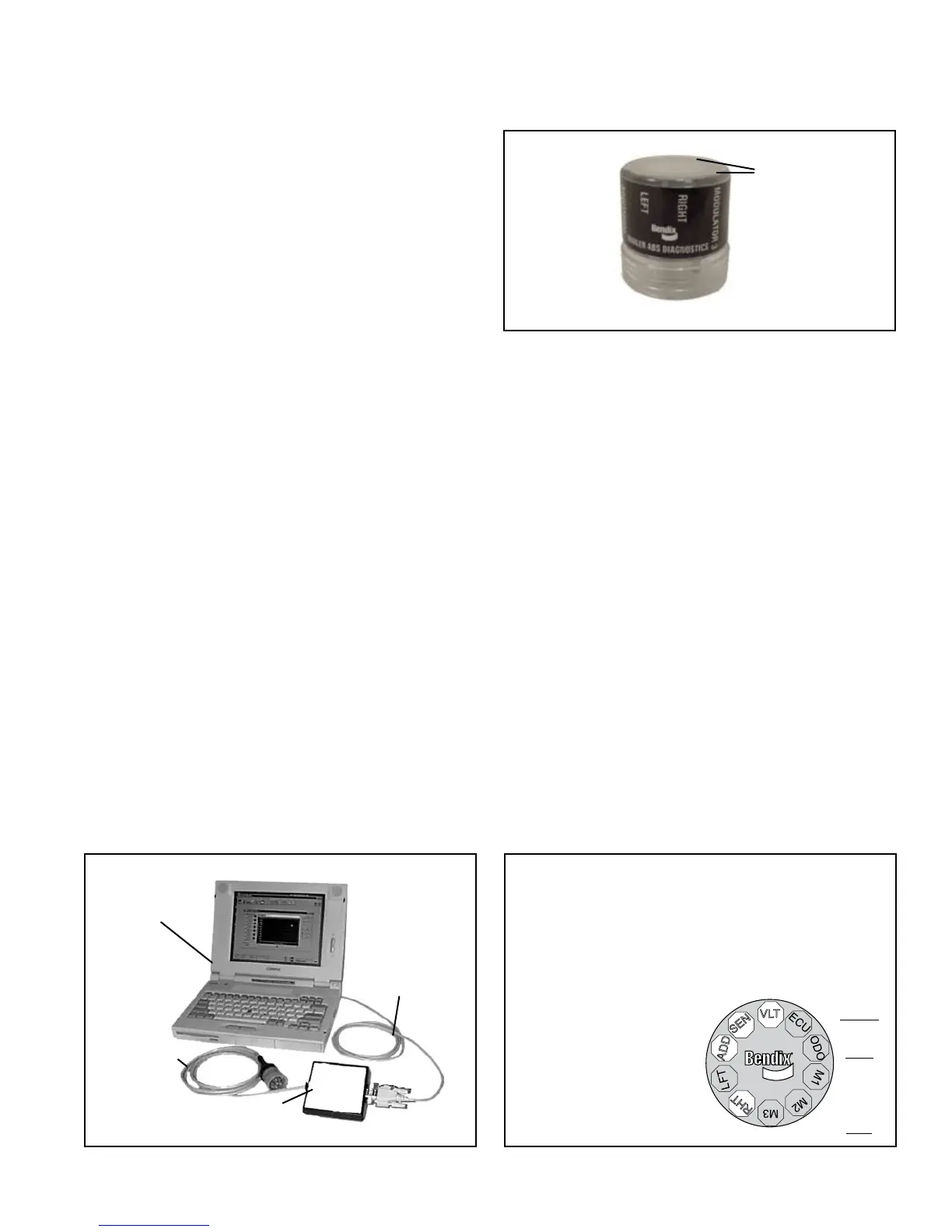

FIGURE 15 - THE BEndIx
®
TRAILER REmOTE
dIAGnOSTIC UnIT
LED lights
illuminate
Diagnostic
Trouble Codes
(10 LEDs)
Parallel or Serial
Cable
J1708/J1587
or J1939
Lap Top Computer
PDM (RP-1210A)
FIGURE 14 - BEndIx ABS dIAGnOSTIC SOFTWARE
Bendix
®
TRDU
™
(Trailer Remote Diagnostic Unit)
Tool
The Bendix
®
TRDU
™
tool provides the technician with
a visual indication of Antilock Braking System (ABS)
component Diagnostic Trouble Code (DTC) information.
The TRDU
™
tool is specically designed for use with
Bendix
®
Trailer ABS systems and Bendix makes no claims
for its operation and/or usability with other brands of trailer
ABS.
Features of the Bendix
®
TRDU
™
Tool
The TRDU
™
tool attaches to a 7-pin to 7-pin adapter (See
Figure 17) and then into the J560 of the towing vehicle.
The TRDU
™
tool communicates across PLC.
The TRDU
™
tool allows the technician to:
• Troubleshoot ABS system component problems using
Diagnostic Trouble Code reporting via LEDs.
• Reset Diagnostic Trouble Codes on Bendix
®
ABS ECUs
by holding a magnet over the reset of the TRDU
™
tool
for less than 6 seconds.
• Initiate a self-conguration event Mode used by Bendix
®
ABS ECUs by holding a magnet over the reset area for
greater than 6 seconds but less than 11 seconds.
LED Diagnostic Trouble Codes
VLT - Power
ECU - ABS Controller
SEN - Wheel Speed
Sensor
MOD1 - Modulator 1
MOD2 - Modulator 2
MOD3 - Modulator 3
LFT - Left
RHT - Right
ADD - Additional
ODO - Odometer
FIGURE 16 - dIAGnOSTIC TROUBLE COdES
Example: If the Diagnostic
Trouble Code is "Right
Additional Sensor", the
TRDU
™
tool will display
one green and three red
LEDs
LEDs
Green
VLT
Blue
ODO
All
others
are
Red
