29

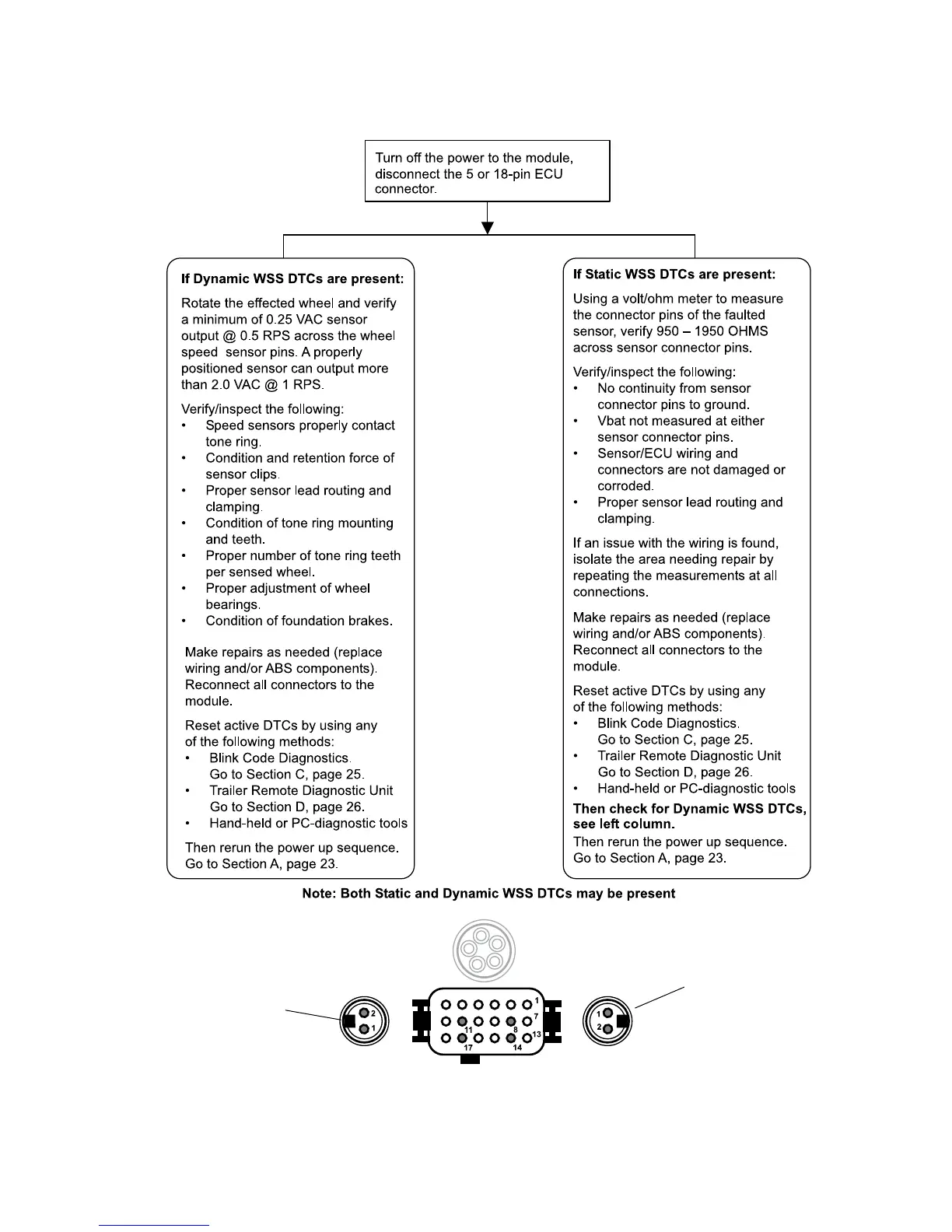

SECTION G: TROUBLESHOOTING THE
WS-24
™
WHEEL SPEED SENSORS (WSS)
Looking into Premium TABS-6 Module Wire Harness
when Additional Wheel Speed Sensors are used:
SR Sensor
1 - Right (Curb) Sensor +
2 - Left (Curb) Sensor -
Looking into Wire Harness(es)
SL Sensor
1 - Left (Road) Sensor +
2 - Right (Road) Sensor -
SAR: 11 - Additional Right (Curb) Sensor +
17 - Additional Right (Curb) Sensor -
SAL: 8 - Additional Left (Road) Sensor +
14 - Additional Left (Road) Sensor -
