30

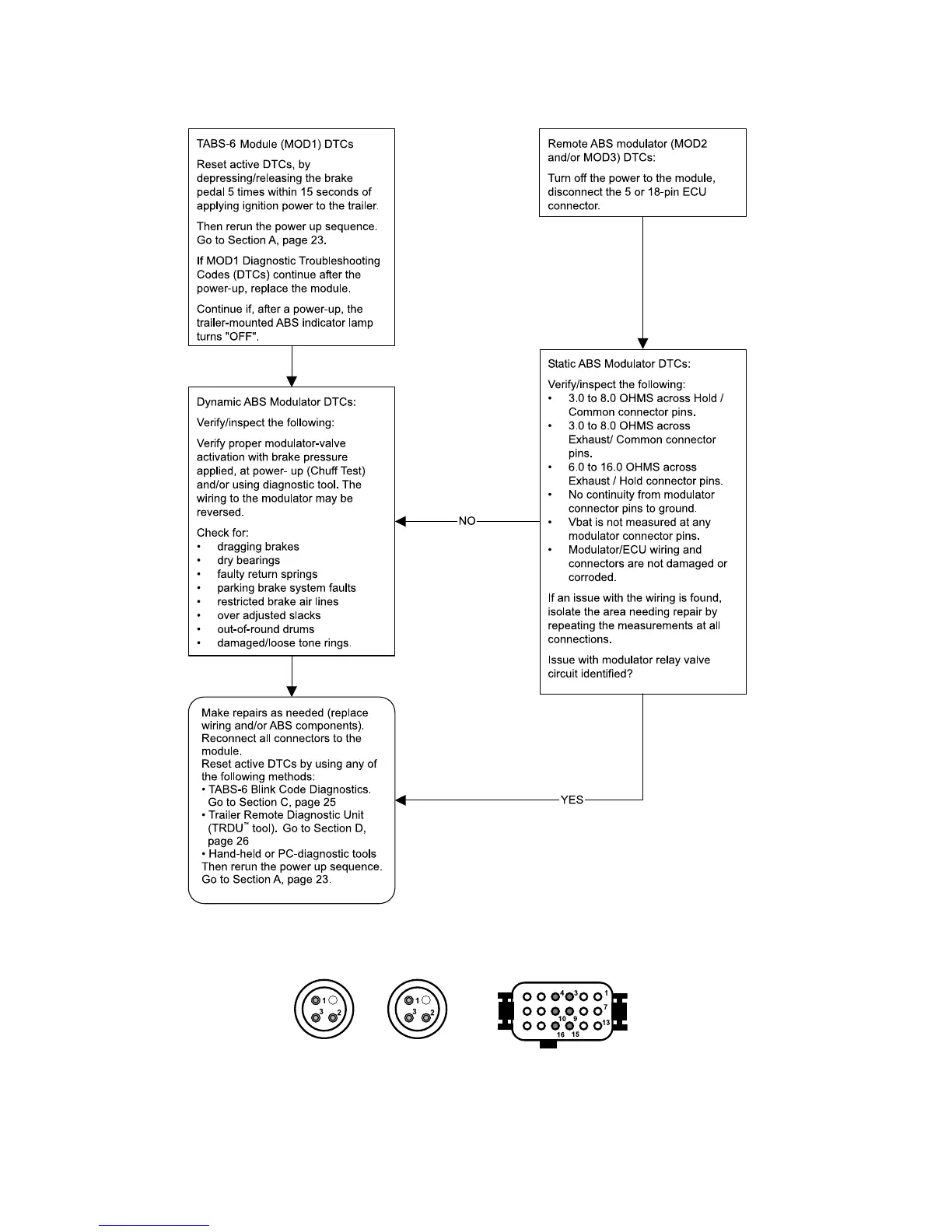

SECTION H: TROUBLESHOOTING THE
MODULATOR RELAY VALVES
Pin 10 is MOD3 release
Pin 4 is MOD3 Common
Pin 16 is MOD3 Hold
Looking into Modulator
Connector Pins:
Pin 1 (Release)
Pin 2 (Common)
Pin 3 (Hold)
Looking into ECU
Connector:
Premium TABS-6 Module Wire Harness for BR9235
™
Modulator Valve Connector
(Optional)
Pin 9 is MOD2 release
Pin 3 is MOD2 Common
Pin 15 is MOD2 Hold
