BENDIX TABS-6 TRAILER ABS MODULE User Manual

28

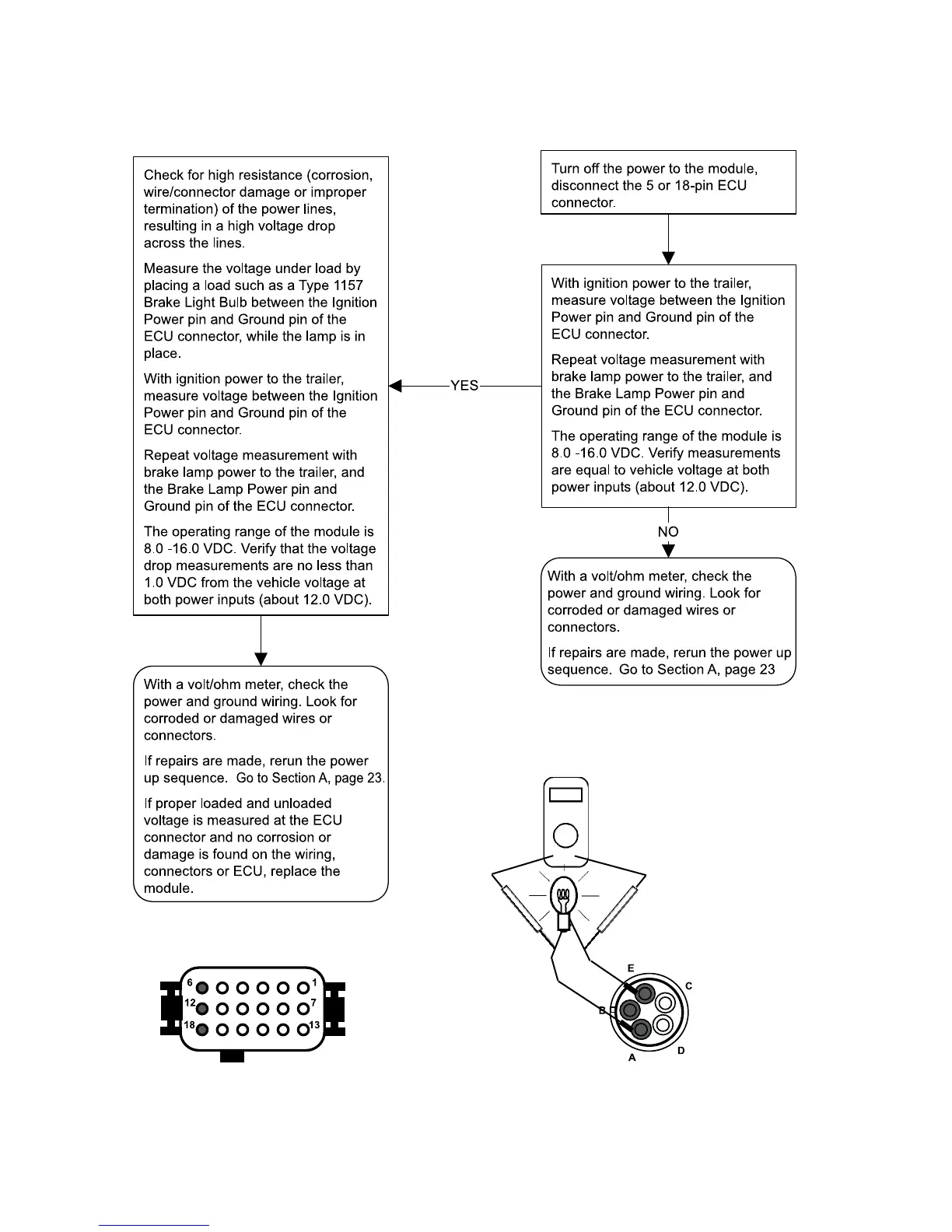

SECTION F: TROUBLESHOOTING THE
POWER SUPPLY
Measure the loaded
voltage across a type
1157 brake light bulb.
Looking into Premium TABS-6 Module Wire Harness,
ECU Connector Measure:
Pin 6 (Ignition Power) to Pin 18 (ground) and
Pin 12 (Brake Light Power) to Pin 18 (ground)
Looking into Standard TABS-6 Module Wire Harness,
ECU Connector Measure:
Pin B (Ignition Power) to Pin E (ground) and
Pin A (Brake Light Power) to Pin E (ground)
