27

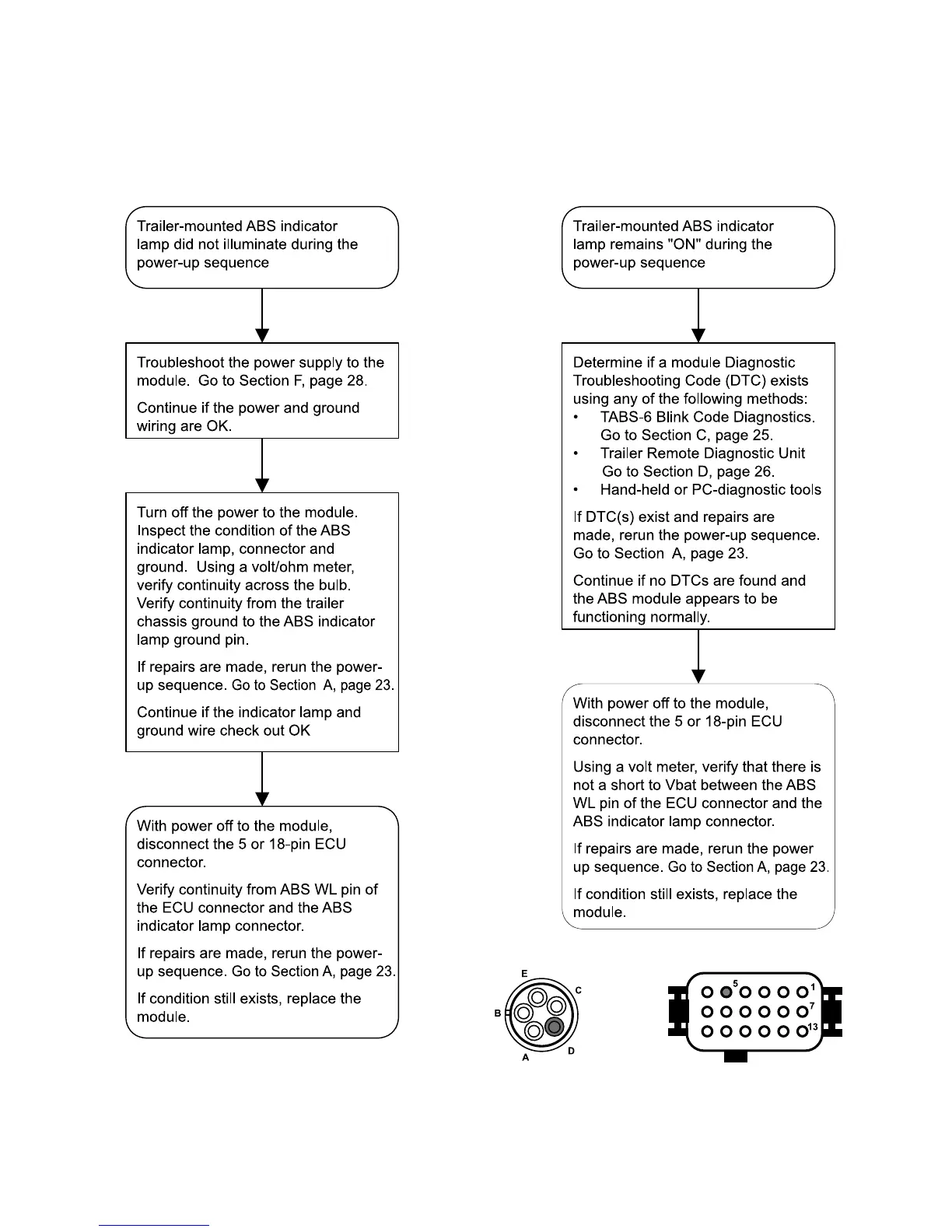

SECTION E: TROUBLESHOOTING THE TRAILER-MOUNTED
ABS INDICATOR LAMP CIRCUITRY
Looking into
Standard TABS-
6 Module Wire
Harness (Pin D ABS
Indicator Lamp)
Looking into Premium
TABS-6 Module Wire
Harness (Pin 5 ABS
Indicator Lamp)
