BendPak HDSO-14P - Power Unit Location

11

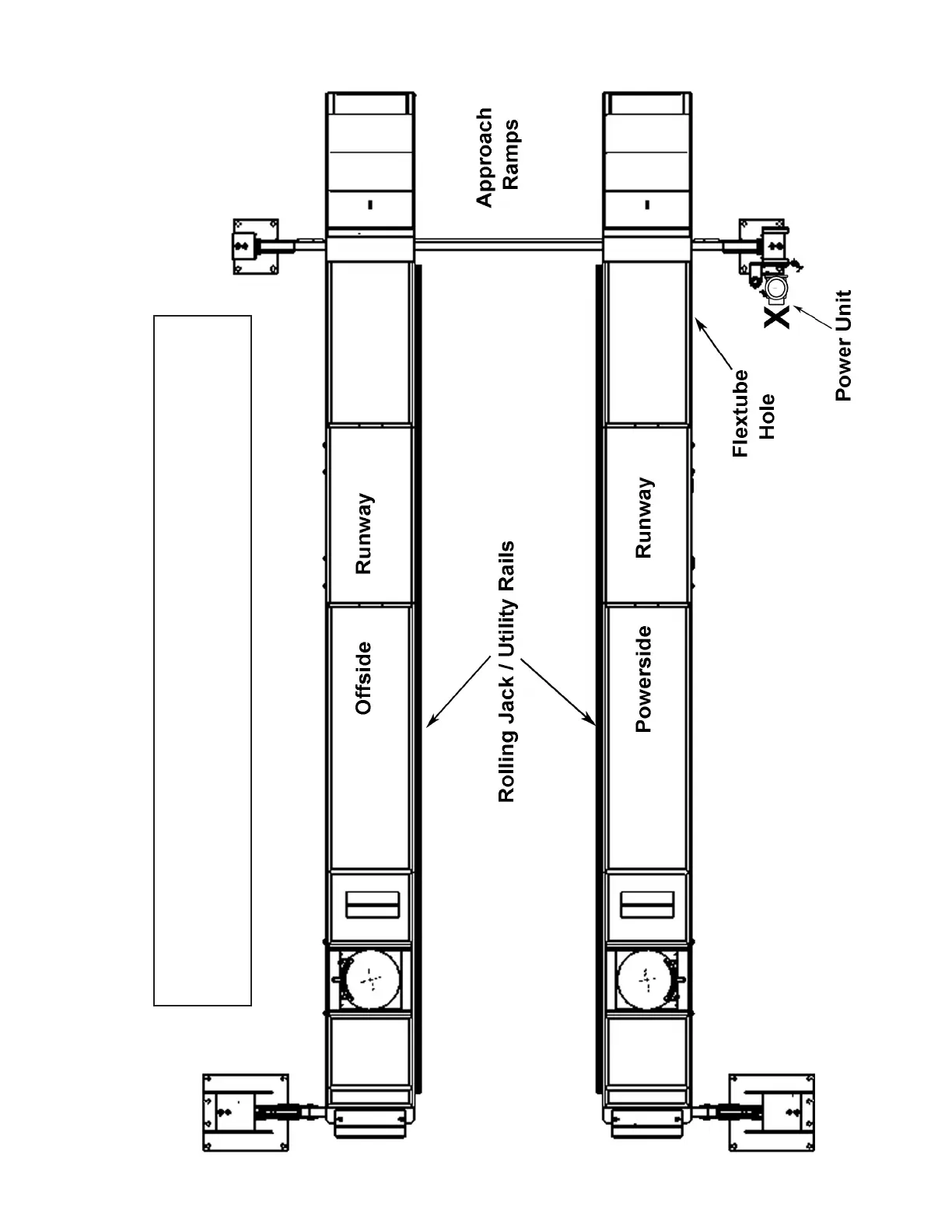

The power unit will be located at “X” location shown below. It is important to locate the
POWER SIDE runway (with cylinder) on the SAME SIDE as the power unit location.
Note the location of the bulkhead fitting holes in the POWER SIDE runway.
Utility rails on the side of each runway MUST be installed to the inside.
POWER UNIT LOCATION
