Anchor the Bases
Anchoring the Bases provides stability to hold the Vehicles you raise firmly in place.
Once the Anchor Bolts are torqued into position, they are not easily removed. BendPak strongly
recommends making sure the Lift is in the correct location
before
anchoring it into place.
Anchor Bolt specifications are:
• Length: 4.75 inches
• Diameter: .75 inch
• Effective embedment depth: 2.75 inches, minimum
• Anchor torque: 85-95 pound feet (do not torque less than 80 or more than 105)
⚠ WARNING
Only use the factory-supplied parts that came with your lift
. If you use
parts from a different source, you void your warranty and compromise the safety of
everyone who installs or uses the Lift.

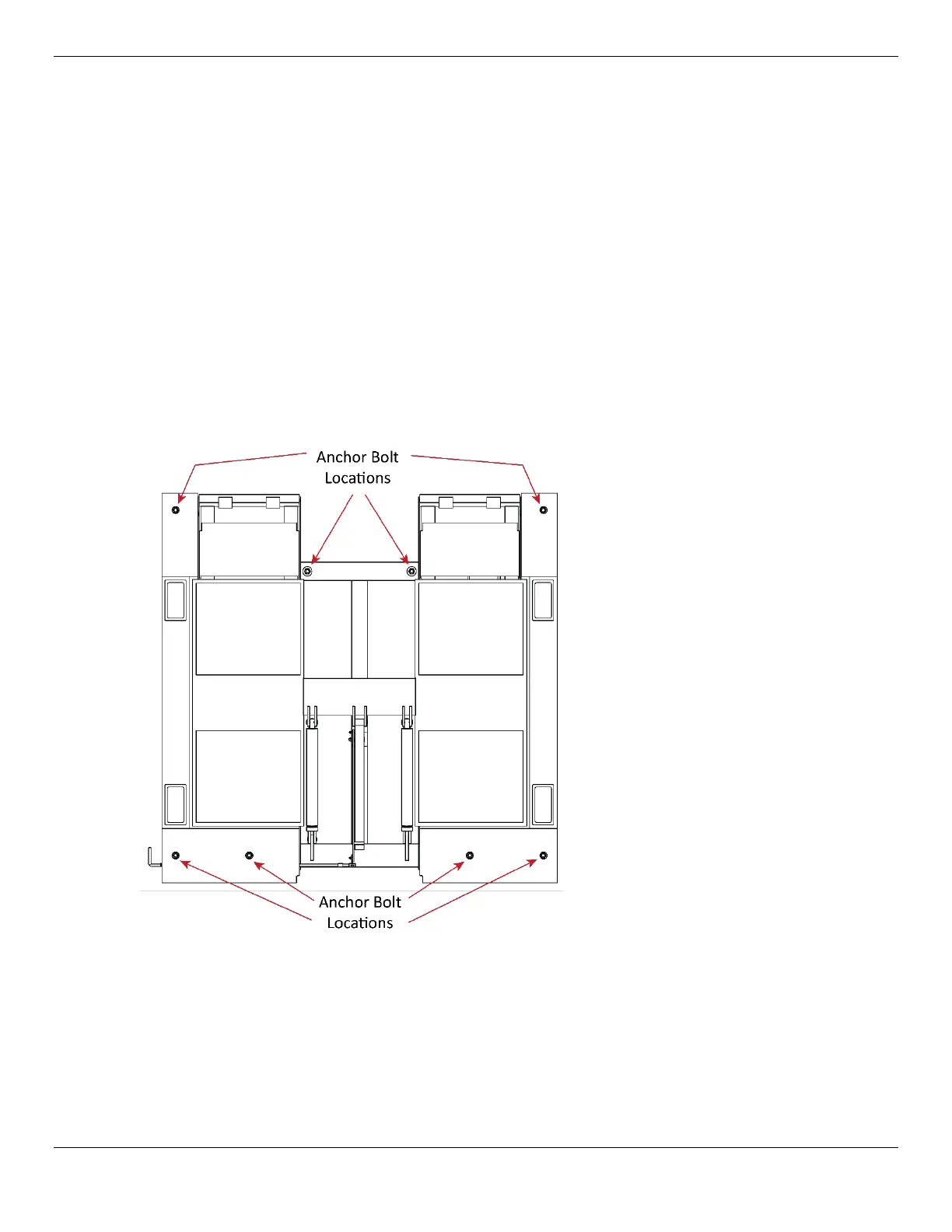

The following drawing shows the locations of the Anchor Bolt holes in the LR-10000.
Top view. Not necessarily to scale. Not all components shown.
To anchor your LR-10000:
1. Make sure the Lift is in the correct location.
2. Using the eight holes in the Base as guides, drill the 4 inch deep holes for the Anchor Bolts.
Note: If you prefer, you can mark the Anchor Bolt locations, move the unit out of the way, drill
the holes, and then move the unit back into position.
