LR-10000 Low-Rise Scissor Lift 19 P/N 5900075 — Rev. B — August 2021
⚠ CAUTION The Power Unit Stand
must
be anchored in place before attaching the Power Unit.
8. Have one person hold the Mount Plate on the back of the Power Unit next to the Connection Plate
at the top of the Power Unit Stand.
9. Have the second person finger tighten the four Nuts, Bolts, and Washers into place.
10. Use an appropriate tool to securely tighten the Nuts, Bolts, and Washers.
Anchor the Hydraulic Hose Cover
The Hydraulic Hose Cover protects the Hydraulic Hose from being tripped or stepped on. Dimensions
for the Cover are 54 inches / 1,372 mm long and 3 inches / 81 mm wide.
The following procedure includes instructions for anchoring the Hydraulic Hose Cover in place. If you
prefer, you can defer anchoring the Hydraulic Hose Cover to prevent interference with other parts of
the installation process. When you are ready, simply return to this section.

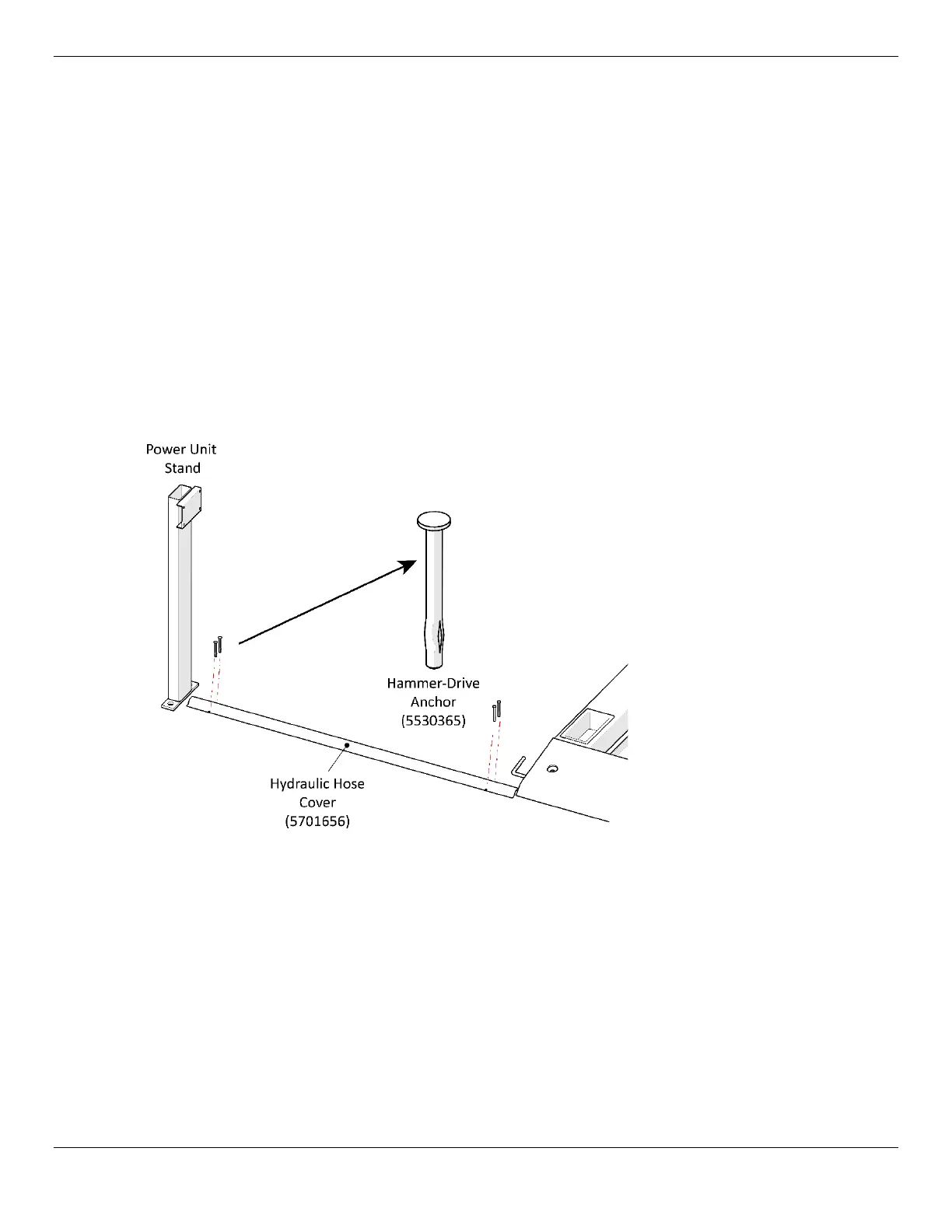

The following graphic shows the general arrangement of the Hydraulic Hose Cover.
Not all components shown. Not drawn to scale.
To anchor the Hydraulic Hose Cover:
1. Locate the Hydraulic Hose Cover (5701656) and the four Hammer-Drive Anchors (5530365)
included in the Parts Box.
2. Place the Hydraulic Hose Cover in between the Power Unit Stand and the edge of the Lift.
3. Using the holes on the Hydraulic Hose Cover as a guide, drill each hole 2 inches / 51 mm deep.
⚠ WARNING You must wear the proper safety glasses and hand gloves.
4. Use a vacuum to thoroughly clean each hole.
5. Hammer or mallet the Anchor into the hole; stop hammering when the top of the Anchor is flush
with the Cover; do the same for the remaining Anchors.
