LR-10000 Low-Rise Scissor Lift 18 P/N 5900075 — Rev. B — August 2021
Anchor the Power Unit Stand and attach the Power Unit
The Power Unit Stand can be on the left or right side of the Lift (looking at the Short Ramp end) up to
55 inches / 1,346 mm away from the Lift.
The Power Unit Stand
must be anchored. It cannot support the weight of the Power Unit unless it is
anchored in place.
Note: Attaching the Power Unit to the Power Unit Stand does not involve any wiring and so you do
not need an Electrician. Later, when you connect the Power Unit to a power source, then an
Electrician is
required .

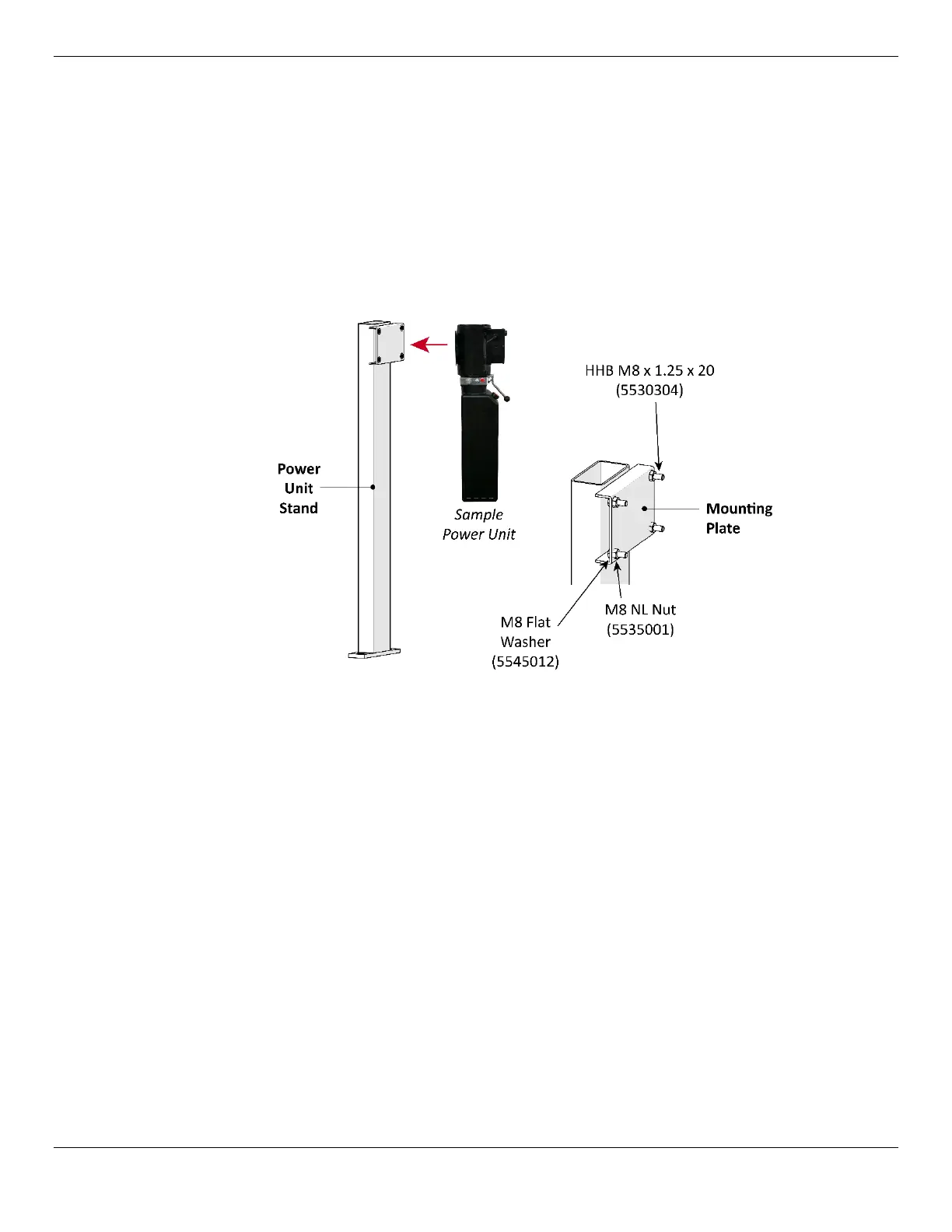

The following graphic shows how to connect the Power Unit to the Power Unit Stand.
Not drawn to scale. Not all components are shown.
To anchor the Power Unit Stand and attach the Power Unit:
1. Select an appropriate site for the Power Unit Stand.
The Operator
must have a full, unobstructed view of the Lift, the Stand needs to be within 55
inches from the side of the Lift, and there needs to be an appropriate power source nearby.
2. Find the Power Unit Stand and the two Anchor Bolts (.75" wide, 4.75" deep, same size as the
Anchor Bolts holding down the Lift).
3. Using the holes in the Base of the Power Unit Stand as a guide, drill two holes .75" wide by 4"
deep into the concrete.
Go in straight; do not let the drill wobble. Use a carbide bit (conforming to ANSI B212.15).
4. Remove all dust from the holes.
Use a wire brush, vacuum, hand pump, or compressed air. Do
not ream the hole. Do not make
the hole any wider than the drill bit made it.
5. Insert an Anchor Bolt with Washer into each hole, then tap it down into the hole.
6. Turn the Anchor Bolt
clockwise to the recommended installation torque, 85-95 pound feet, using
a Torque Wrench.
7.
Switching over to the Power Unit , locate the Power Unit and the supplied hardware.
