SP-7XE/F Full-Rise Scissor Lift 24 P/N 5900010 — Rev. B3 — September 2023
⚠ WARNING Never work under a platform or vehicle unless the platform is safely engaged on a
safety Lock.
⚠ WARNING The Lifting Frame Assemblies are heavy. Do not lift the Platforms without
assistance.
4. When the Platform is above the top Safety Lock, lower it back down onto the top Safety Lock.
Leave the platform on that Top Safety Lock.
5. Repeat the same procedure on the second Platform.
6. Verify the bases are within the chalk line guides before proceeding.
Anchor the Bases SP-7XE/XEF
Each Base provides four holes for anchoring. Anchor Bolt Assembly Part Number 5530456 are
provided with the Lift.
⚠ CAUTION Once the Anchor Bolts are torqued into position, they are not easily removed.
BendPak strongly recommends making sure the Frames are in the correct location
before anchoring them into place.

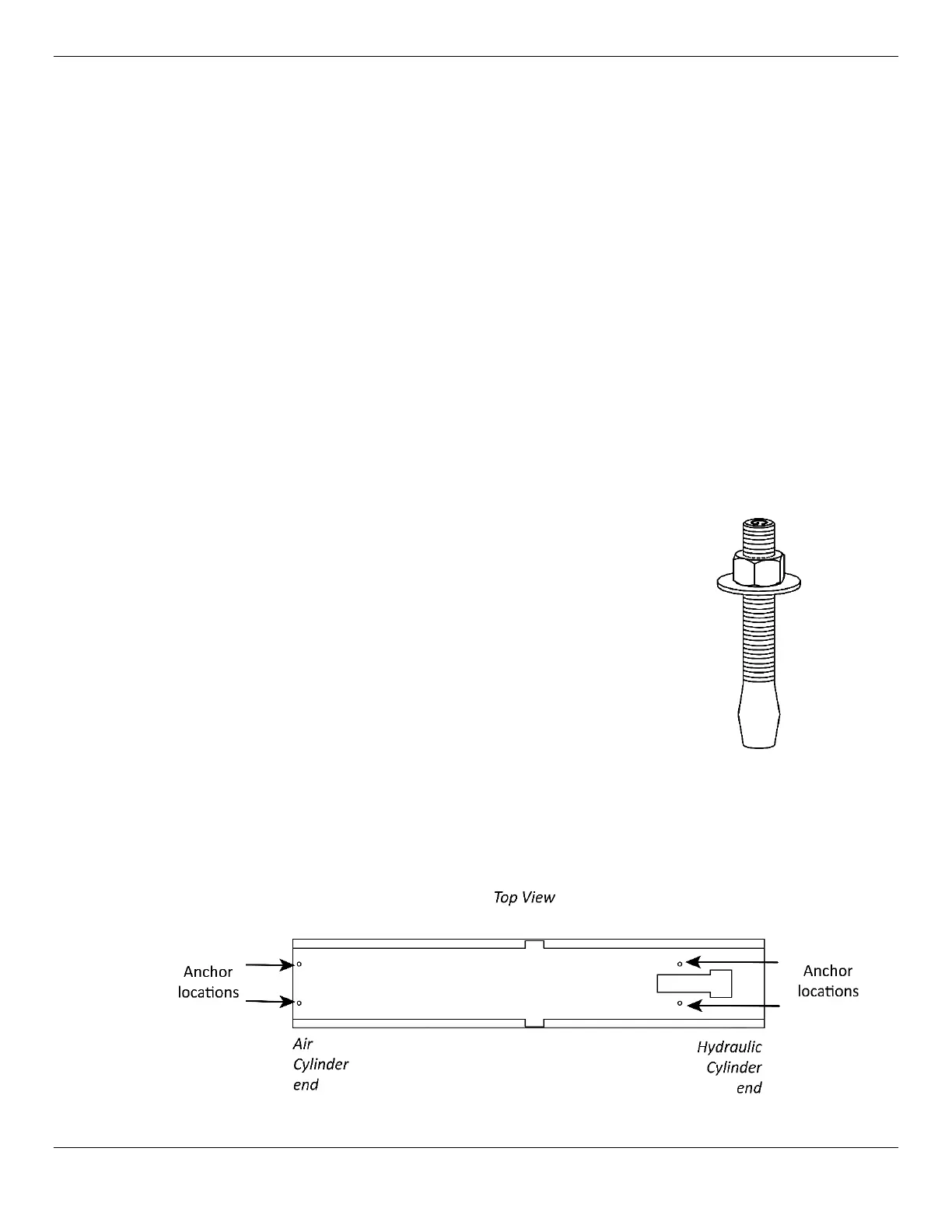

Anchor Bolt specifications are:
• Length: 4.75 inches
• Diameter: .75 inch
• Effective embedment depth: 2.75 inches,
minimum
• Anchor torque: 85 – 95 ft. lbs.
⚠ WARNING Use only the ALI-certified Anchor Bolts that came with your Lift. If you use
components from a different source, you void your warranty and compromise the
safety of everyone who installs or uses the Lift.
The figure below details the locations of the Anchor Bolt locations in each SP-7XE/F Base.
