SP-7XE/F Full-Rise Scissor Lift 30 P/N 5900010 — Rev. B3 — September 2023
Assemble the Console and Attach the Power Unit
Some Consoles are shipped assembled, and others are not.
The included Hydraulic Hoses require the Console to be within 40 inches of the Lift.
Tip If the Console is positioned farther than 40 inches from your Lift, Hydraulic Hoses that
are long enough to reach the Lift from the desired location are required. You may be
able to obtain these Hydraulic Hoses from a local hydraulics shop certified to fabricate
Hydraulic Hoses, provide measurements to the local hydraulics shop. Longer Air Lines
will also be required.
⚠ WARNING If the Hydraulic Hose lengths are changed, the new hose lengths must be
within 5% of each other
. The SP-7XE/F Lift is a Hydraulically Balanced Lift. If the
hose lengths vary by more than 5% there is a risk of the Platforms rising unevenly.
Choose a certified Hydraulic Hose fabrication facility to assemble the replacement
hoses.

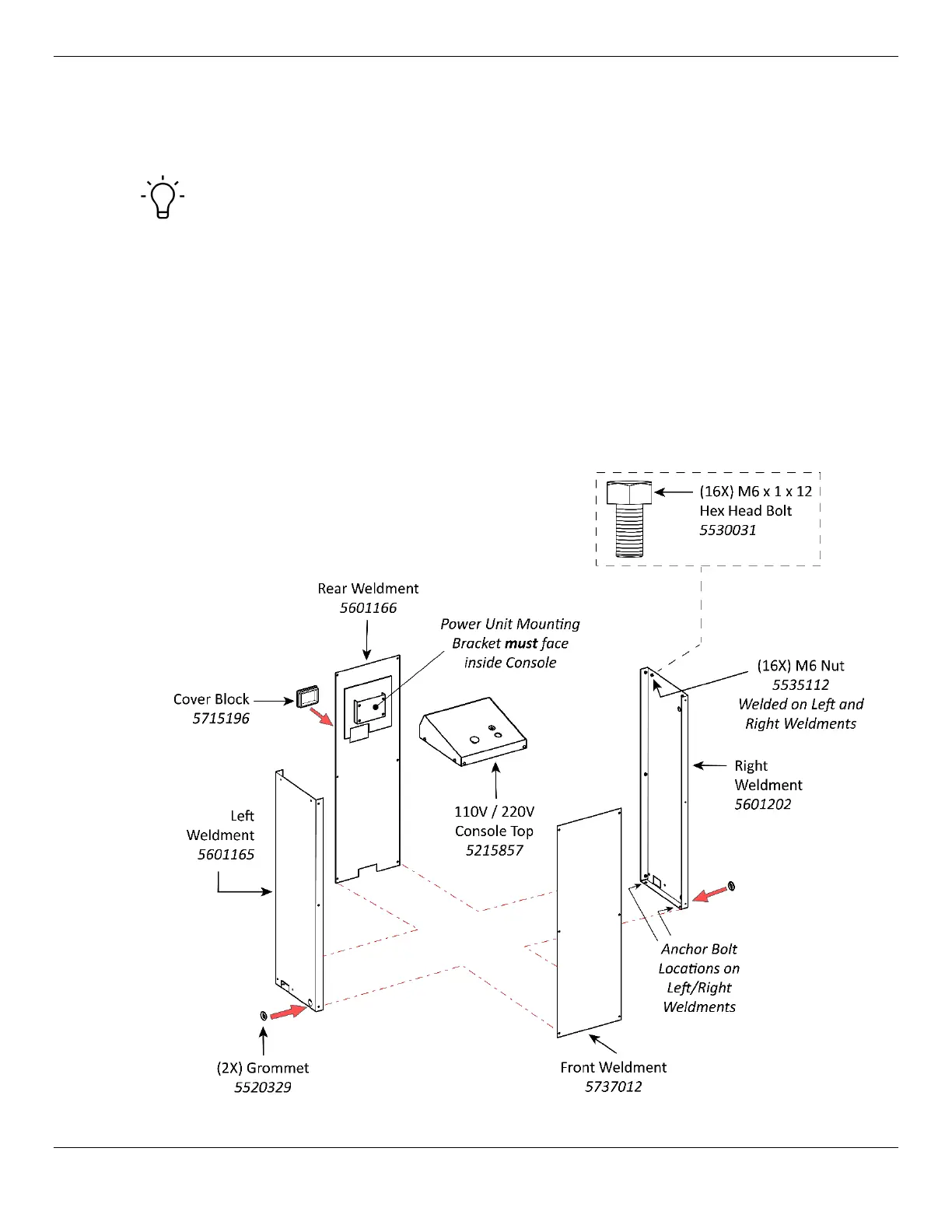

The following illustration details the main components of the Console.
