SP-7XE/F Full-Rise Scissor Lift 32 P/N 5900010 — Rev. B3 — September 2023
Anchor the Console
The following procedure includes instructions for anchoring the Console into place. If you prefer, you
can defer anchoring the Console.
Anchoring the Console is a permanent decision. Delaying the anchoring allows you to evaluate how
well the first choice performs. It is easier to change the Console location later if it is not anchored.

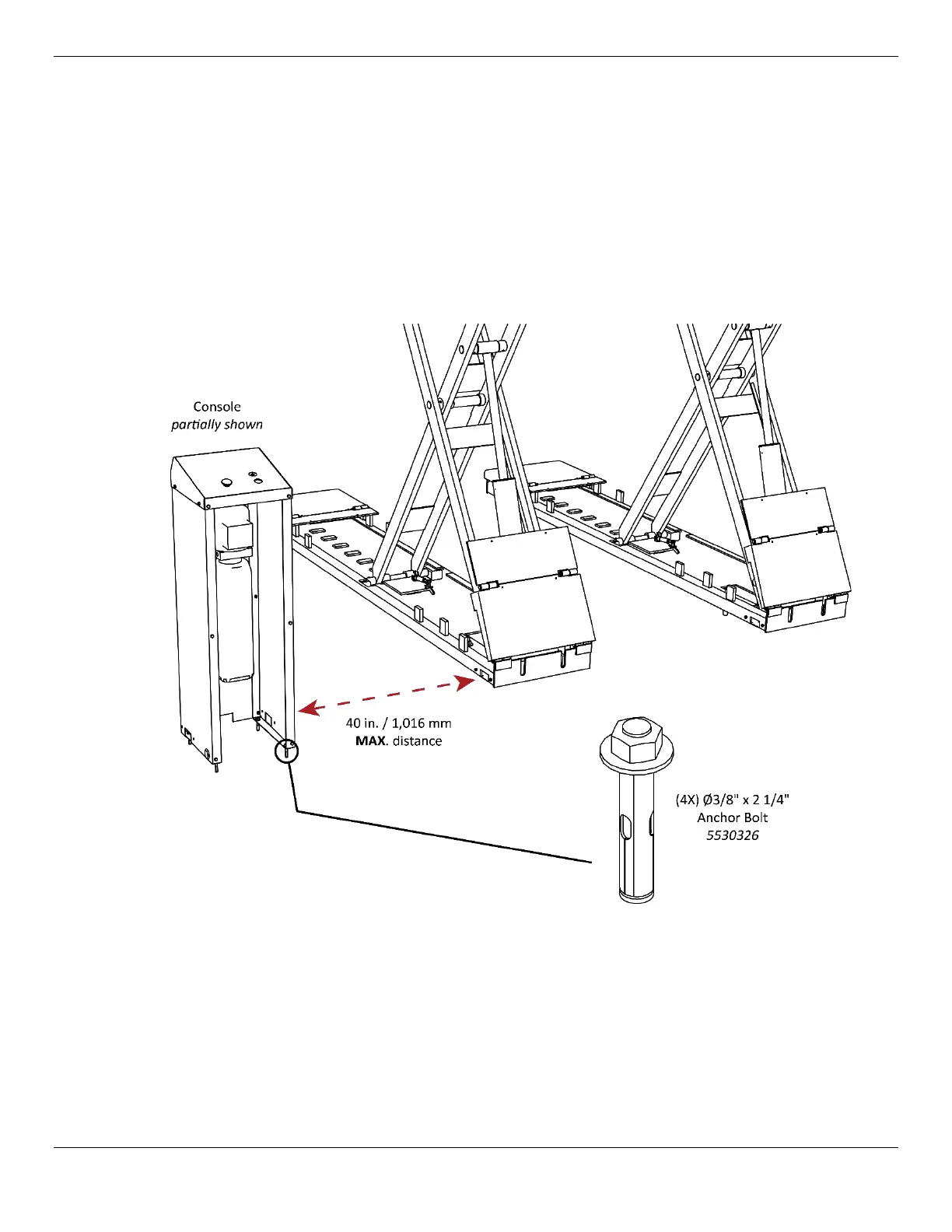

The Console may be mounted on either the Left or Right side of the Lift, up to 40 inches away. The
Console must be on the Cylinder end of the Frames in a direct line from the rectangular opening in the
Lift Base used for routing the Hydraulic and Air Lines.
When you are ready to anchor the Console into place, return to this section and follow the instructions.
