SP-7XE/F Full-Rise Scissor Lift 56 P/N 5900010 — Rev. B3 — September 2023
Optional Lift Arm Kit
If you purchased the optional Lift Arm Kit, this section describes how to use it.
The Kit is supplied with four Lift Arms. Hook them on the outside edge of a Platform, and install the
desired Pads, drive the Vehicle over the Lift, and then position the Pads under the manufacturer’s
recommended Lifting Points for the Vehicle being raised.
⚠ DANGER The maximum Vehicle weight allowed using all four Lift Arms (which must always be
used four at a time) is 4,800 lb. / 2,177 kg. Do not raise a Vehicle that weighs more
than this; if you do, you could damage the Lift or the Vehicle, you put at risk
everyone near the Lift, and you void your warranty. Each Lift Arm is rated for a
maximum of 1,200 lb. / 544 kg; never exceed this weight on one Lift Arm.

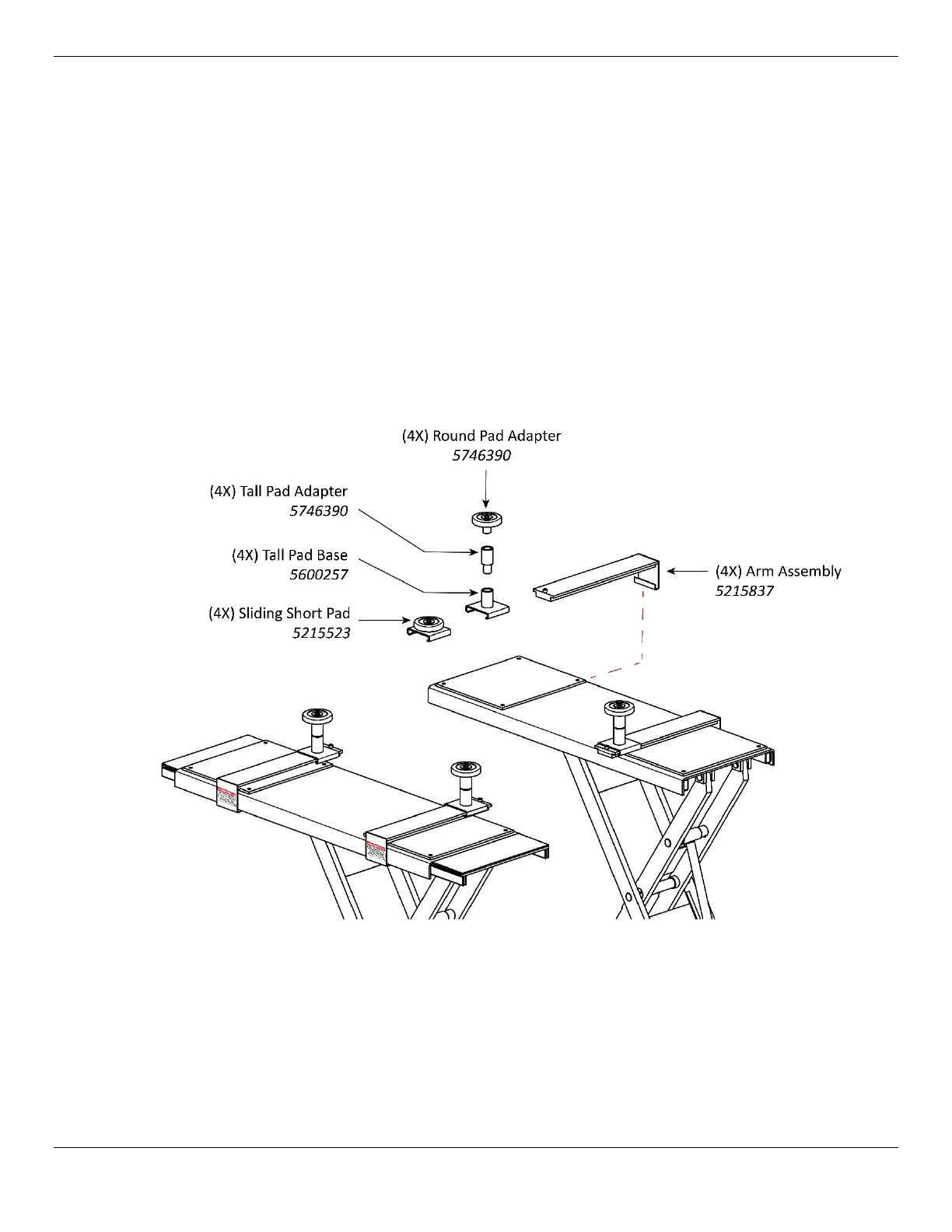

Position the Pads by sliding the Lift Arms along the outside edge of the Platform.
Each Lift Arm can be fitted with either a Short Pad or a Tall Pad/Adapter/Base combination, all of
which come with the Lift Arm Kit.
Important: When raising Vehicles with body-on-frame construction (compared to unibody
construction), BendPak recommends purchasing 35 mm Frame Cradle Pads for safer
lifting. These are available on the BendPak website in the Car Lift Accessories
section. Make sure to order the 35 mm Pin Diameter option.
The Frame Cradle Pads replace the Tall Pad in the Tall Pad/Adapter/Base combination.
To switch between Short Pads and the Tall Pad/Adapter/Base, remove the Lock Screw on the end of
the Lift Arm, remove the current Pad, slide on the desired Pad, and then replace the Lock Screw.
If you are using the Tall Pad/Adapter/Base combination, you can use it with or without the Adapter.
