Instrument and control functions
EN
3

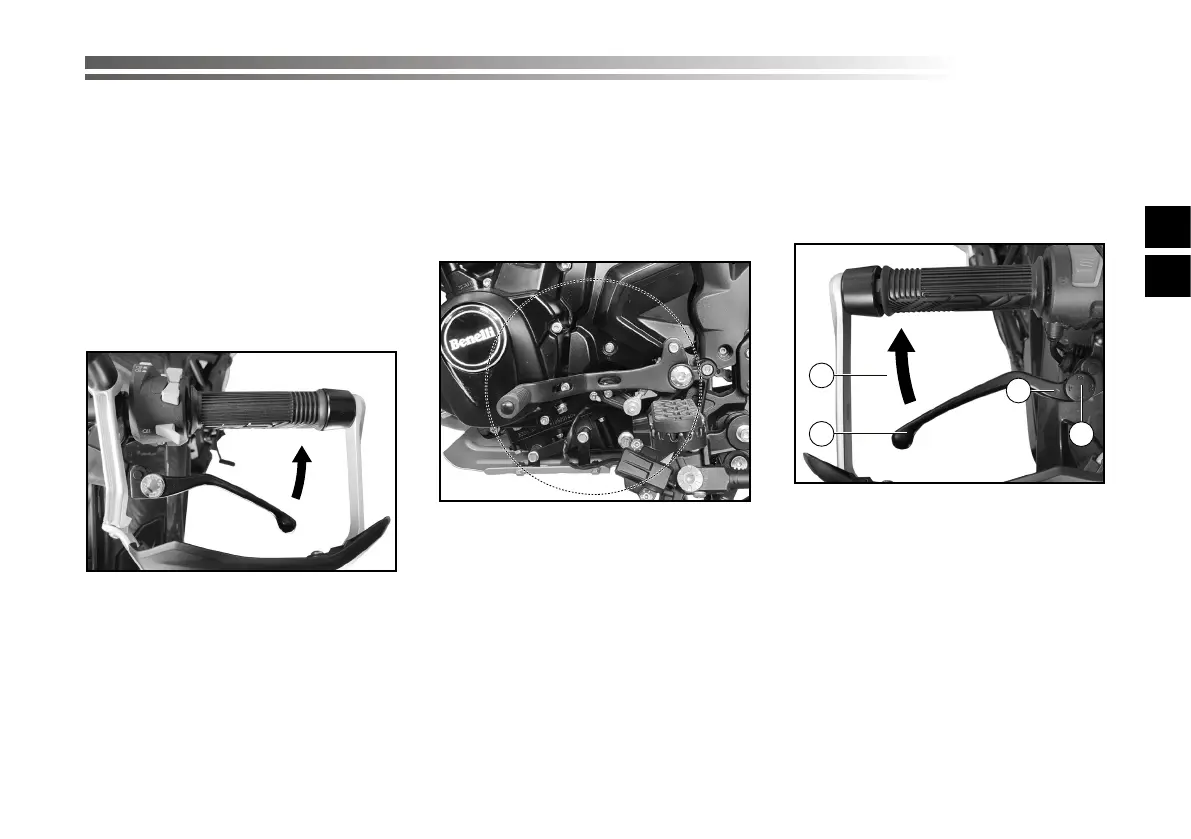

Clutch lever
The clutch lever is located on the left side
of the handlebar.
To disengage the clutch, pull the lever
toward the handlebar grip. To engage the
clutch, release the lever. The lever should
be pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a clutch
switch, which is part of the ignition circuit
cut-o system.
Shift pedal
The shift pedal is located on the left side
of the motorcycle. Is used in combination
with the clutch lever when shifting the
gears of the 6-speed constant-mesh tran-
smission, equipped on this motorcycle.
NOTE
Always change down one gear at a time
and at the correct speed to avoid engine
overspeed and jamming of the rear wheel.
Brake lever
The brake lever is located on the right hand
grip of the handlebar. To engage the front
brake, pull the lever towards the hand grip.
The brake lever is equipped with an adju-
sting knob (3) of the position.
1. Brake lever
2. Distance between brake lever and
throttle grip
3. Brake lever position adjusting knob
4. ▲ mark
To adjust the gap between the brake lever
and the throttle hand grip, turn the knob
clockwise or anticlockwise; by turning
it anticlockwise, the lever moves closer,
while it moves further away by turning
it clockwise. Make sure that the correct
adjustment, set from the adjustment gau-
ge is in line with the reference ▲ (4).
