Periodic maintenance and adjustment
EN
6
Rear tire:
Size:
160/60 - ZR17 69W
TRAIL Size:
150/70 - R17 – 69V
WARNING
• Use only the specied replace-
ment tires.
• Brand-new tires can have a relati-
vely poor grip on certain road sur-
faces until they have been “broken
in”. Therefore, it is advisable befo-
re doing any high-speed riding to
ride conservatively for approxi-
mately 100 km after installing a
new tire.
• The tires must be warmed up be-
fore a high-speed run.
• Always adjust the tire air pressure
according to the operating condi-
tions.
Adjusting the clutch lever free play

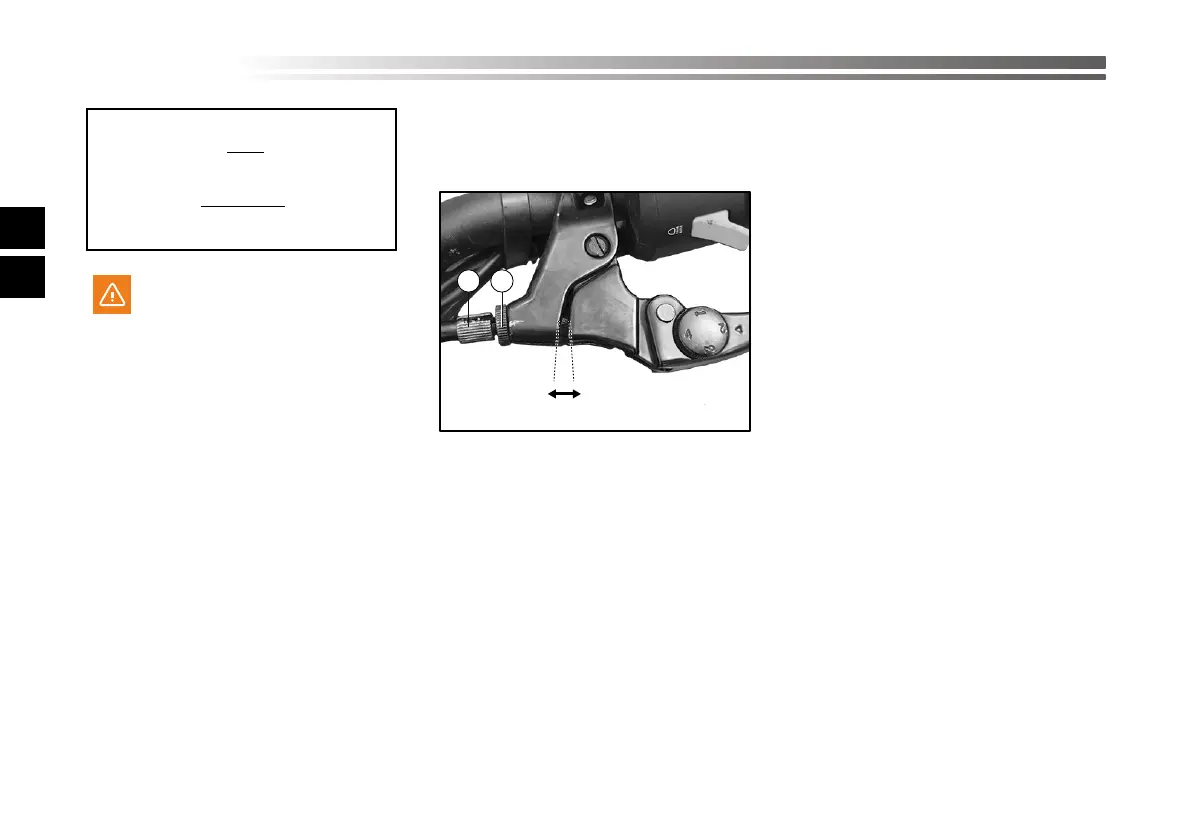

Measure the clutch lever free play as
shown.
2 1
3 - 5 mm
1. Clutch ring nut
2. Clutch screw
Check the clutch lever backlash regularly
and adjust as necessary.
1) Loosen the clutch ring nut and the clutch
screw on the cable, at the same time.
2) To increase clutch lever backlash, turn
the clutch screw clockwise (seen from sit-
ting on the bike).
To reduce the clutch lever backlash, turn
the clutch screw anticlockwise (seen from
sitting on the bike).
3) After adjusting, tighten the clutch ring
nut.
NOTE
If the specied free play cannot be obtai-
ned as described above or if the clutch
does not operate correctly, have a Benelli
dealer check the internal clutch mechani-
sm.
To Next Page
