Benelli TRK 702X - Fuse Replacement and Lighting System Checks

6 - 30
Periodic maintenance and adjustment
EN
6
Replacing the fuses
The fuse boxes and individual fuses are lo-
cated under the passenger seat.
To access fuse box and the main fuse re-
move the passenger seat.
If a fuse is blown, replace it as follows.
1. Turn the key to “
” and turn o the
electrical circuit in question.
2. Remove the blown fuse, and then install
a new fuse of the specied amperage.
WARNING
Do not use a fuse of a higher amperage
rating than recommended to avoid cau-
sing extensive damage to the electrical
system and possibly a re.
3. Turn the key to “ ” and turn on the
electrical circuit in question to check if the
device operates.
4. If the fuse immediately blows again,
have a Benelli dealer check the electrical
system.

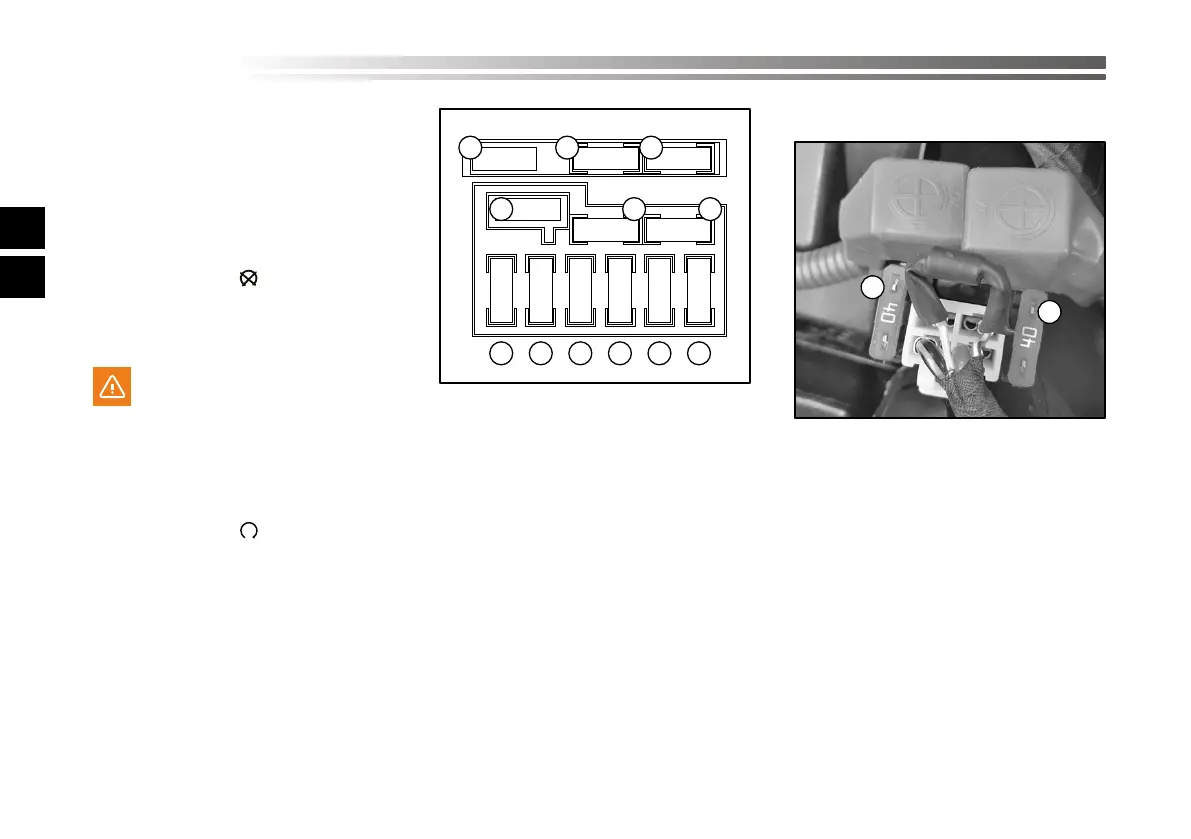

15A 15A
15A15A
15A
15A 15A 15A
25A15A
25A
1 2 3
10 11 12
7 8 9
4 5 6
1. (empty)
2. Power lock
3. ECU
4. Light
5. Fan
6. Fuel pump
7. Spare
8. Spare
9. Spare
10. Spare
11. ABS 1
12. ABS 2
Starter relè
1
2
13. Main fuse
14. Spare
