To set the Pulse Rate Output, set jumpers JP1-1 and JP1-2 as follows:
JP1-1 JP1-2 Pulses Per Gallon Pulses per Liter
OUT OUT 1000 100
IN OUT 100 10
OUT IN 10 1
IN IN 1 1/10TH
To set Pulse Width, set jumpers JP1-3, JP1-4, JP1-5 as follows (PULSE WIDTH’S ARE IN
MILLISECONDS):
JP1-3 JP1-4 JP1-5 Pulse Width Pulses Per Minute
OUT OUT OUT .5 ms 60000
IN OUT OUT 1 ms 30000
OUT IN OUT 2 ms 15000
IN IN OUT 4 ms 7500
OUT OUT IN 8 ms 3750
IN OUT IN 16 ms 1875
OUT IN IN 32 ms 9378
IN IN IN 64 ms 467
The Pulse Output board is ordered as an option with the Electronic 3000 Series. This board is where
the field wires connect the 3rd party Fleet System to the Pulse Output functions of the dispenser. This
board also has jumpers that need to be set to determine the Pulse Rate and the Pulse Width. Whatever
pulse rate is set will send the same pulse rate and width to both the Fleet System and the Tank Gauge
(if one is connected). This section describes how to set these jumpers. Refer to the Figures below:

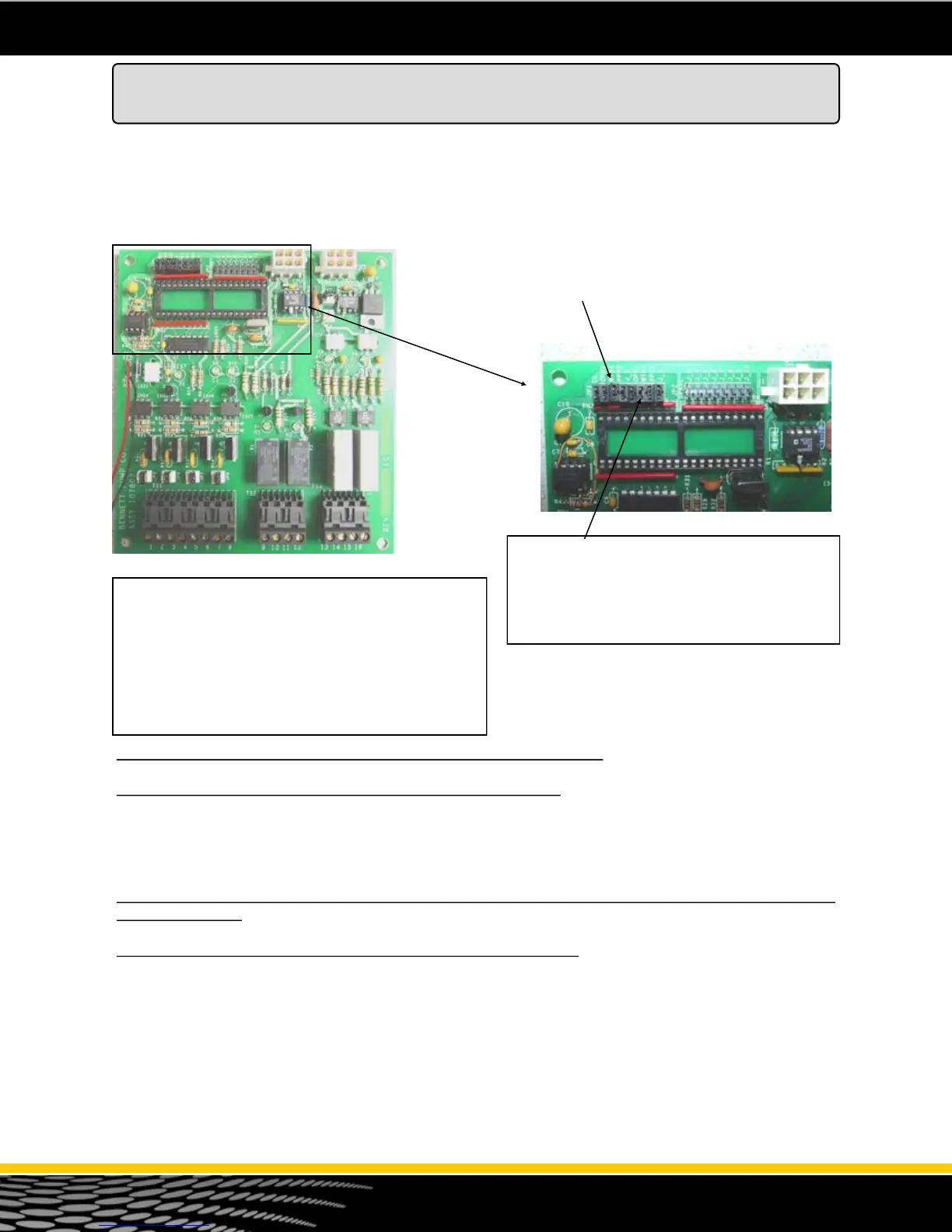

This is the Pulse Output Board. It has the terminal
strips for the field wire connections along the bottom
of the board to communicate with the Fleet System
using a pump handle output signal, an authorize in-
put signal and a pulse train signal. The Jumper
Header JP1 is at the top left of the board. These
jumpers must be set to determine the pulse rate and
the pulse width. See information below.
The top left of the Pulse Output board has a
jumper header called JP1. It has 8 jumper
positions. Set the Pulse Rate with the first two
jumpers and the Pulse Width with the 3rd, 4th
and 5th. See information below.
JP1-1,2,3,4,and 5 are used to set the pulse rate and pulse width.
Setting the Jumpers on the Pulse Output Board
Figure 40 - Pulse Output Board
Figure 40 - Pulse Output Board Jumpers
