Bennett 3711 - Self Contained Power Wiring Diagram Big Fueler Self Contained Models AC Power & Motor Connections

Default Icon
90 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
82
120001 Rev K 1-19-18
Self Contained Power Wiring Diagram
Big Fueler Self Contained Models AC Power & Motor Connections for 3K Series

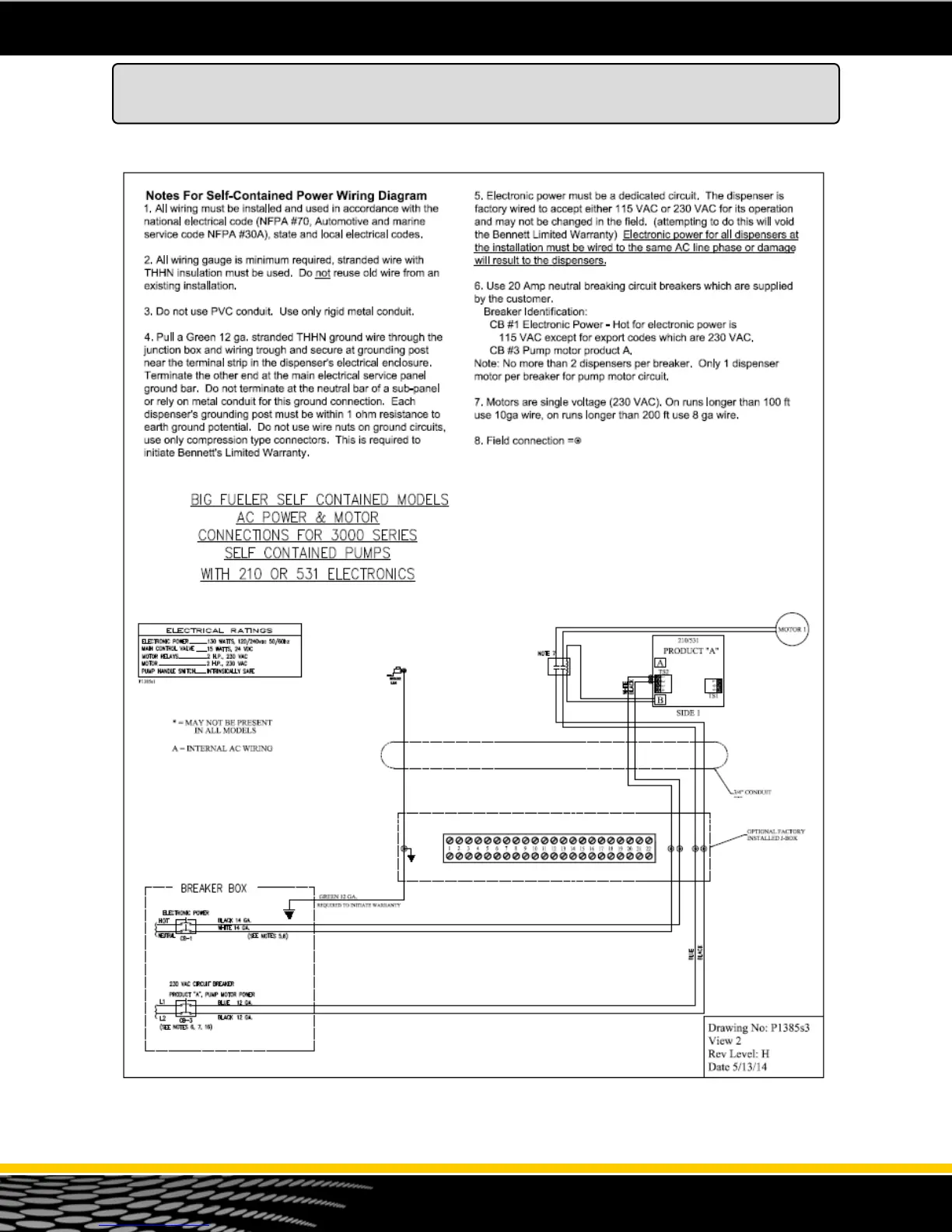

Note: Drawing schematic P1385s3 View 2 (Part Number 110226) can be found on the USB provided.
