Connection20
Connecting a composite Video source device
Examine your Video source device to determine if it has a set of unused composite Video
output sockets available:
• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.
To connect the projector to an composite Video source device
1. Take an appropriate Video cable (not supplied) and connect one end to the composite
Video output socket of the Video source device.
2. Connect the other end of the Video cable to the VIDEO socket on the projector.

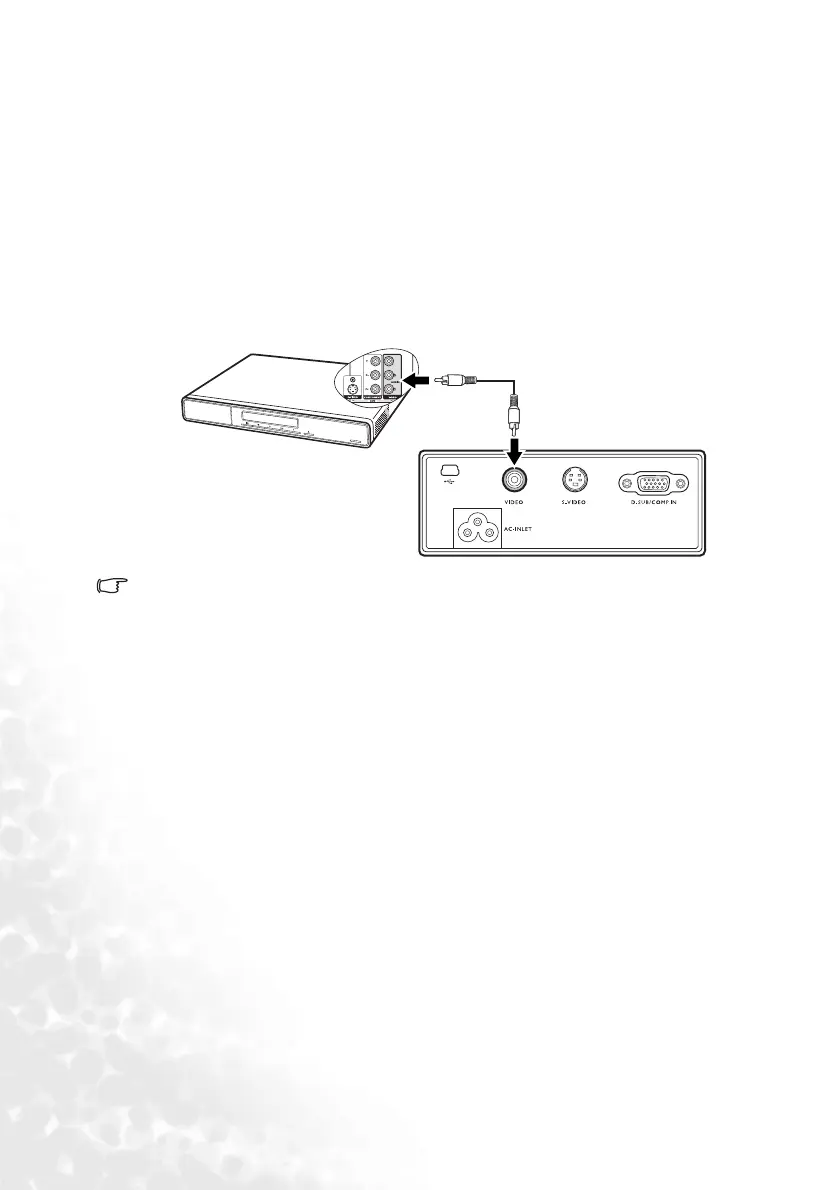

The final connection path should be like that shown in the following diagram:
• If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the Video source device is turned on and
operating correctly. Also check that the signal cables have been connected correctly.
• You need only connect to this device using a composite Video connection if Component
Video and S-Video inputs are unavailable for use. See "Connecting Video source devices" on
page 17 for details.
A/V device
Video cable
