9 Introduction

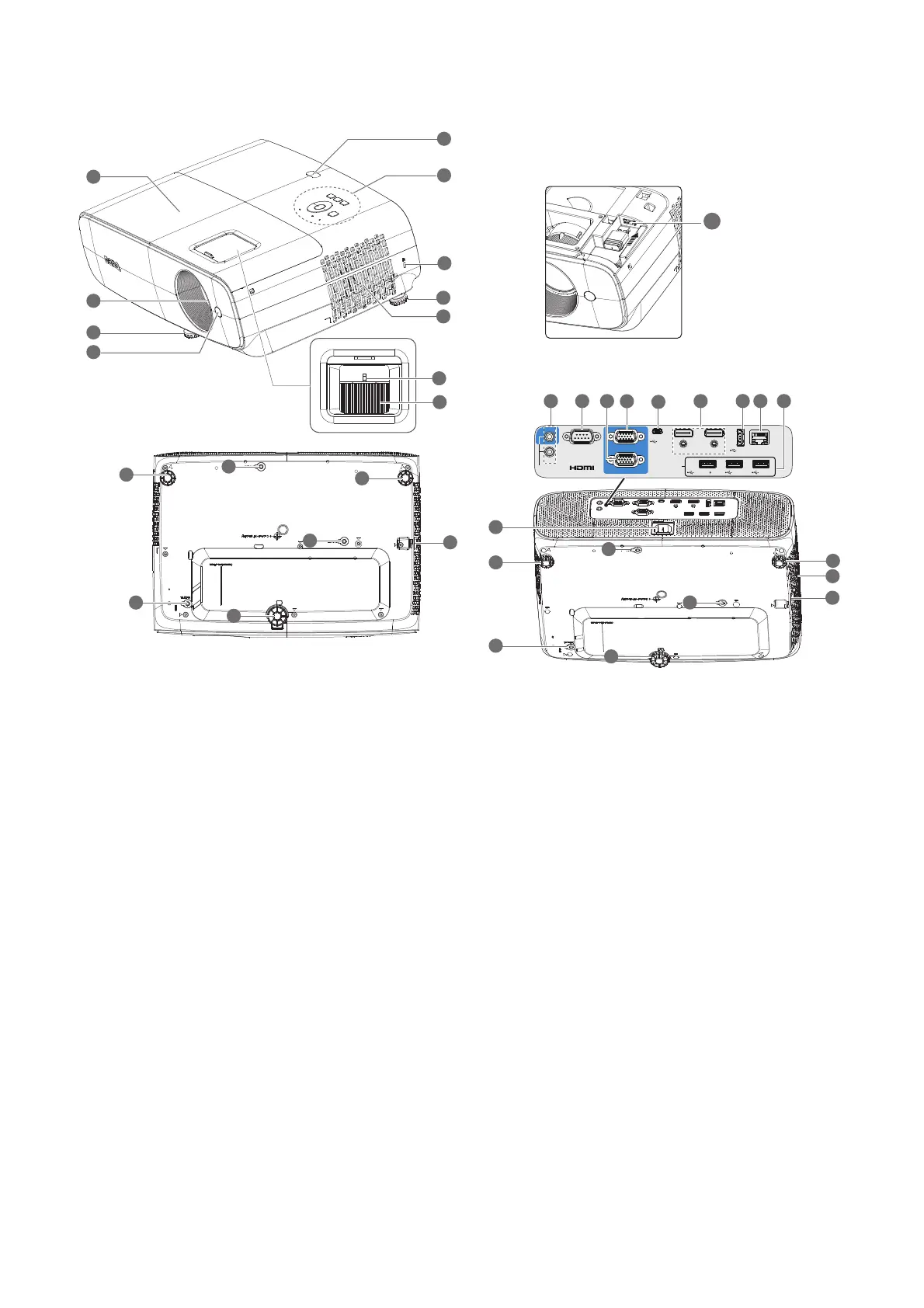

Projector exterior view
1. Lamp cover
2. Projection lens
3. Adjuster feet
4. IR remote sensor
5. External control panel
(See Controls and functions on page 10.)
6. Kensington anti-theft lock slot
7. Vent (air inlet)
8. Zoom ring
9. Focus ring
10. Audio input jack
Audio output jack
11. RS-232 control port
12. RGB (PC) signal output jack
13. RGB (PC) signal input jacks
14. USB Mini-B port
15. HDMI 1/ HDMI 2 input port
16. USB Type-A port (For Power Charging)
17. RJ45 LAN port (For LAN Control)
18. USB Type-A port (For USB Reader)
19. AC power jack
20. Wall mount holes
21. Vent (air exhaust)
22. Security bar
23. USB Type-A port (For USB Wi-Fi dongle)
READER
OUT
AUDIO
IN
LAN
USB
USB 4
HDMI 1 HDMI 2
MINI
-
B
RS
-
232
MONITOR OUT
PC
USB 2 USB 3USB 1 /
1.5A
23
5
19
22
20
20
20
3
4
11
15
13
16
17
3
3
3
3
3
20
20
22
1
10
21
4
3
6
3
2
7
14
12
18
20
8
9
