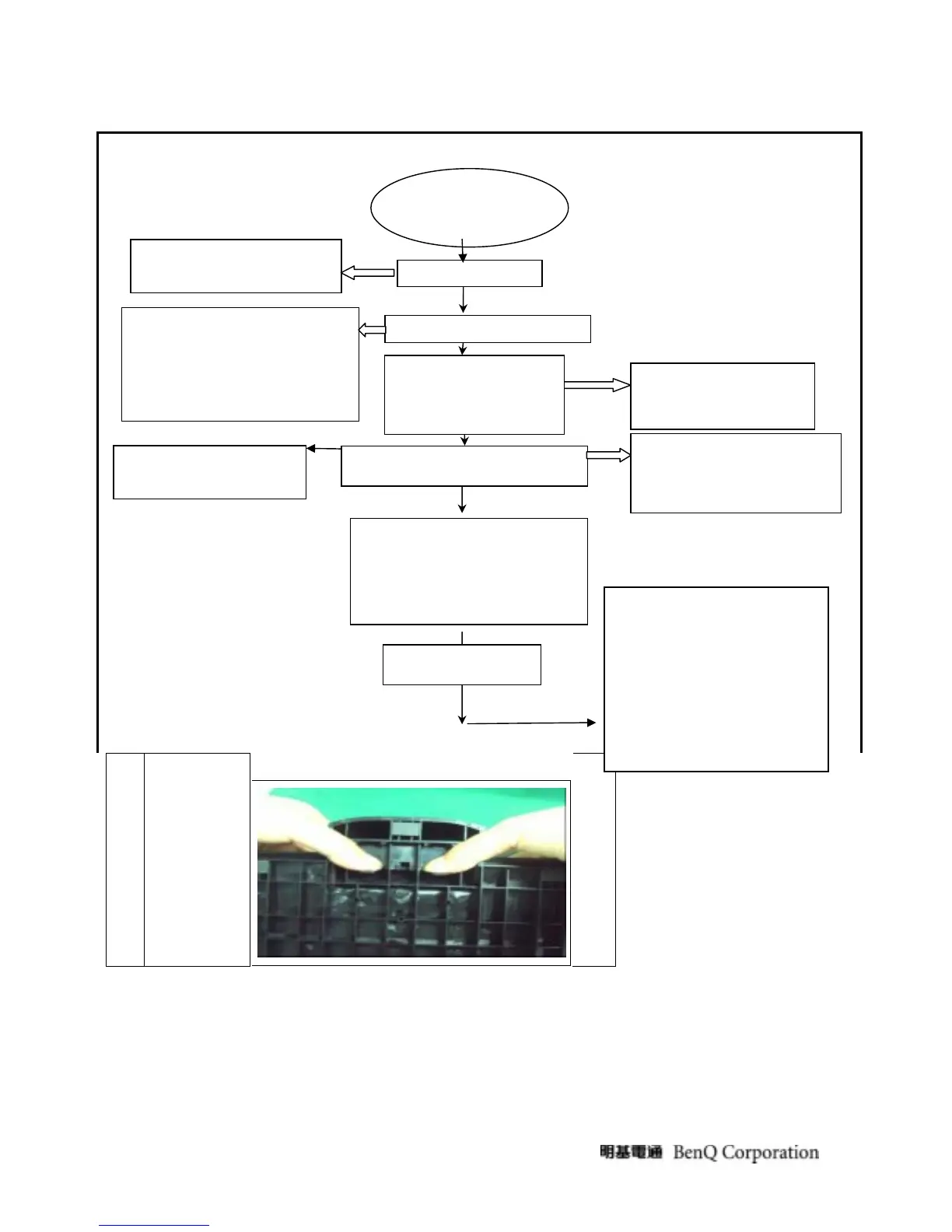

5.3 Disassembly Block

Disassemble the

base(press two

points as photo

showing)

ASSY FRONT BEZEL

ASSY STAND

STAND FRONT *1

STAND BACK *1

HINGE *1

SCREW,B,CROSS,T.T-4*10,BLK ,ROHS *3

LE 20D6

LCD Monitor

PANEL *1

HRN LVDS FFC *1

FOIL,AI,DOUBLE,COND,60x35xT0.

07mm,LE2016*1

ASSY CHASSIS *1

BEZEL *1

FUNCTION BUTTON *1

POWER BUTTON *1

ASSY BASE

BASE, LE20D6*1

Rubber Foot , *5

HRN ASS'Y *1

PCBA I/F BOARD *1

PCBA Power *1

SCREW,P,CROSS

W/WAS,M3*6,Zn ROHS*5

BOLT,#4-40x11.8,Ni ROHS *4

BACK COVER *!

LOGO BACK *1

PCBA KEY PAD*1

KEY PAD CABLE

ASSY,BACK COVER *1

SCREW,P,CROSS,M4*8,BLACK,

NL(NYLOK）*2
