Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
• In the connections shown below, some cables may not be included with the projector (see
"Shipping contents" on page 8). They are commercially available from electronics stores.
• The connection illustrations below are for reference only. The rear connecting jacks
available on the projector vary with each projector model.
*For updating the firmware.

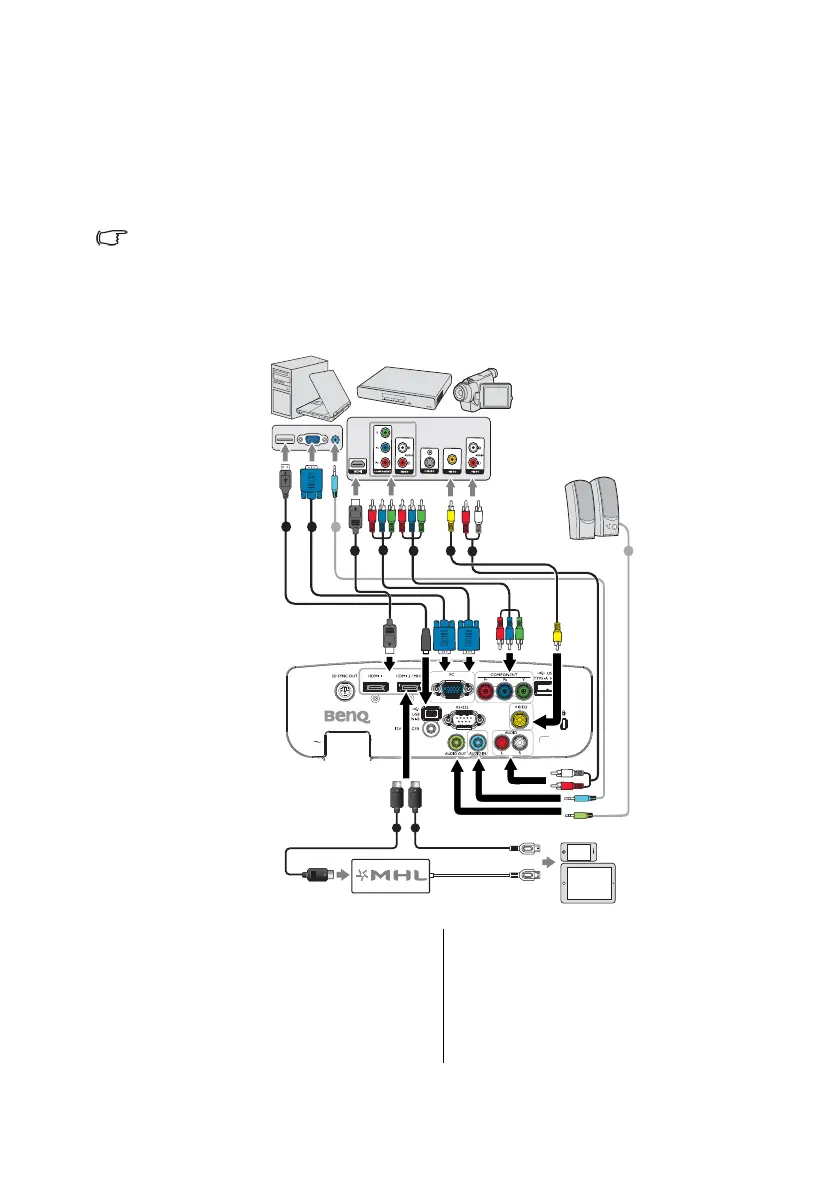

1. USB cable*
2. VGA cable
3. HDMI cable
4. Component Video to VGA (D-Sub)
adapter cable
5. Component Video to Component
cable
6. Video cable
7. Audio L/R cable
8. Audio cable
9. HDMI-Micro USB cable
8
7
6
8
1
3
4
3 9
3
2
5
Notebook or desktop
computer
A/V device
Speakers
Smartphone or
tablet PC
