12 Positioning your projector
Obtaining a preferred projected image size
The distance from the projector lens to the screen, the zoom setting, and the video format each factors
in the projected image size.

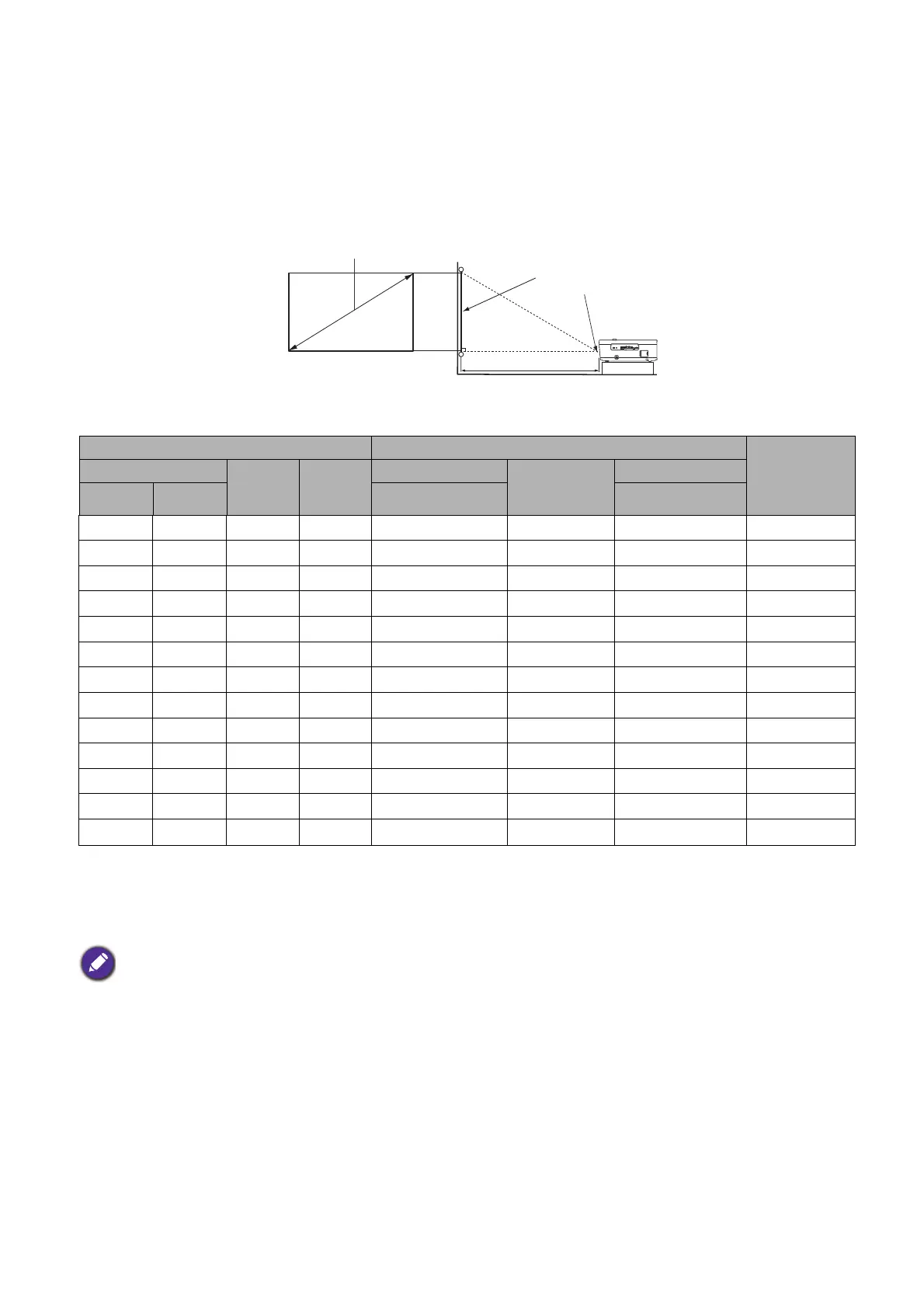

Projection dimensions
• The screen aspect ratio is 16:9 and the projected picture is in a 16:9 aspect ratio
For example, if you are using a 120-inch screen, the recommended projection distance is 4500 mm.
If your measured projection distance is 520 cm, the closest match in the "Distance from screen (mm)"
column is 5250 mm. Looking across this row shows that a 140'' (about 3.6 m) screen is required.
Screen size Distance from screen (mm) Lowest/
Highest Lens
position
(mm)
Diagonal
H (mm)
W
(mm)
Min length
Average
Max length
Inch mm (max. zoom) (min. zoom)
80 2032 996 1771 2400 3000 3600 149
90 2286 1121 1992 2700 3375 4050 168
100 2540 1245 2214 3000 3750 4500 187
110 2794 1370 2435 3300 4125 4950 205
120 3048 1494 2657 3600 4500 5400 224
130 3302 1619 2878 3900 4875 5850 243
140 3556 1743 3099 4200 5250 6300 262
150 3810 1868 3321 4500 5625 6750 280
160 4064 1992 3542 4800 6000 7200 299
170 4318 2117 3763 5100 6375 7650 318
180 4572 2241 3985 5400 6750 8100 336
190 4826 2366 4206 5700 7125 8550 355
200 5080 2491 4428 6000 7500 9000 374
All measurements are approximate and may vary from the actual sizes.
BenQ recommends that if you intend to permanently install the projector, you should physically test the projection
size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this
projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your
installation location.
LAN
PC
-
RS232
12V
TRIGGHER
IR IN
1
2
HDMI 2
-
USB MINIB
HDMI 1
HDCP 2.2
H
W
Projection distance
Center of lens
Screen
16:9 Screen diagonal
