Introduction
The document describes how to control your BenQ projector via RS232 from a computer.
Follow the procedures to complete the connection and settings first, and refer to the
command table for RS232 commands.
Available functions and commands vary by model. Check the specifications and user manual of
the purchased projector for product functions.

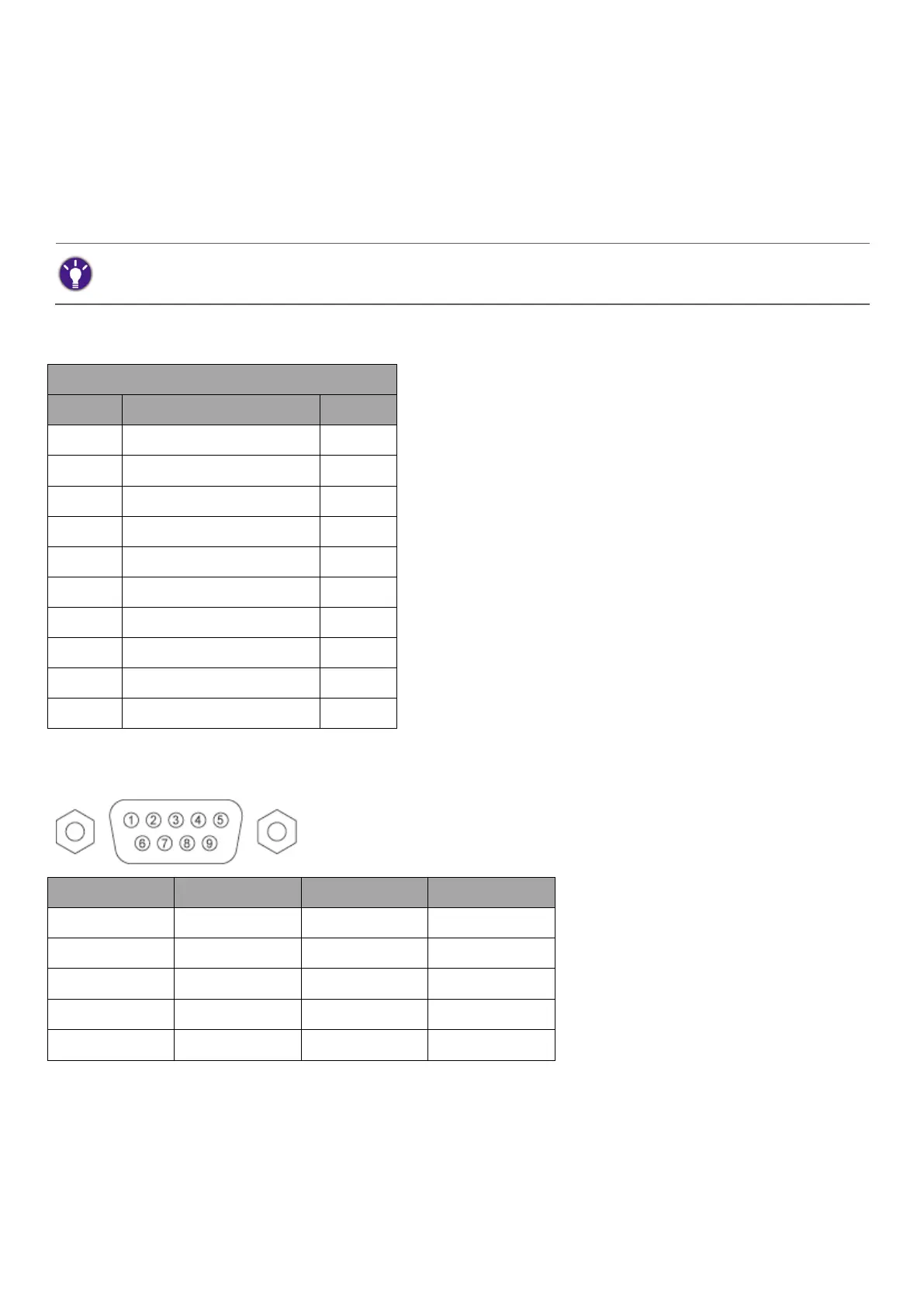

Wire arrangement
Wire Arrangement
P1
Color
P2
1
Black
1
2
Brown
3
3
Red
2
4
Orange
4
5
Yellow
5
6
Green
6
7
Blue
7
8
Purple
8
9
Gray
9
Case
Drain wire
Case
RS232 pin assignment
Pin
Description
Pin
Description
1
NC
2
RXD
3
TXD
4
NC
5
GND
6
NC
7
RTS
8
CTS
9
NC
