1.4 Lamp Assembly.
i. Lamp Assembly sequence look likes below:
(A) Insert lamp into HLD Lamp Lamp and touch to the Mesh Lamp (Fig. 1-13).
(B) Push lamp slightly to the right side (Fig. 1-13).
(C) Then push Lamp forward to touch DTM Lamp of HLD Lamp (Fig. 1-13).
ii. Insert Lamp into HLD Lamp Lamp and push Lamp forward to touch DTM Lamp of
HLD Lamp (Fig. 1-13).
iii. To make sure that three datum contact with the lamp well (Fig. 1-14).
iv. Assemble Clips Lamp to HLD Lamp and lock screws (Fig. 1-15).
v. Hook “Clip Up Lamp” on the HLD Lamp to fix Lamp last (Fig. 1-16).
vi. Check assembly again and make sure the three datum contact with the lamp.
vii. Assemble Clip Plate to HLD Lamp and breach is located on top of terminal then lock
screw (Fig. 1-17).
viii. Assemble Handle Bar to the HLD Lamp and fixed on the screw (Fig. 1-18).

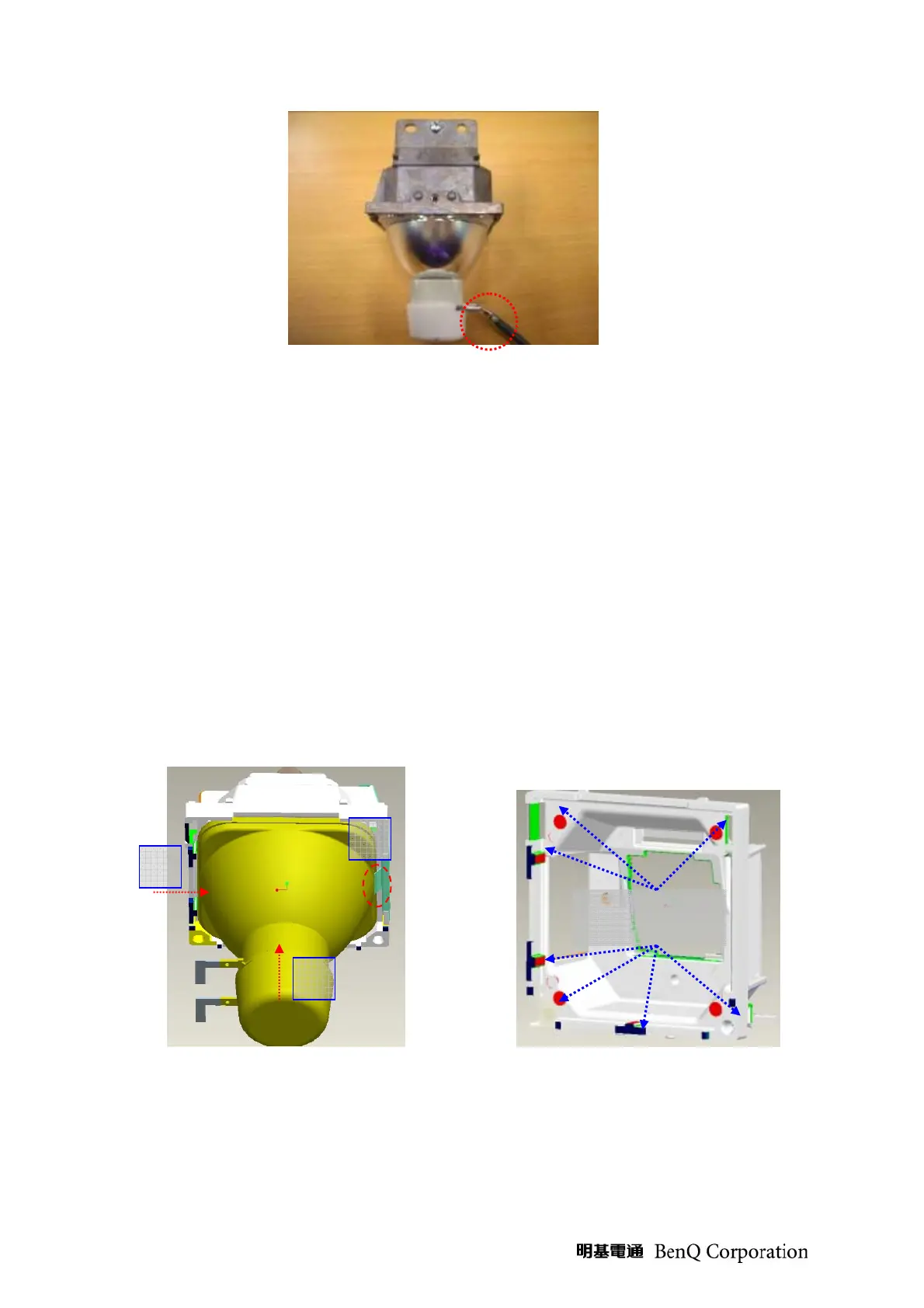

Fig. 1-13 Fig. 1-14
DTM of Lamp
1
2
3
