2. BKT Link Lamp and CW Shield Assembly:

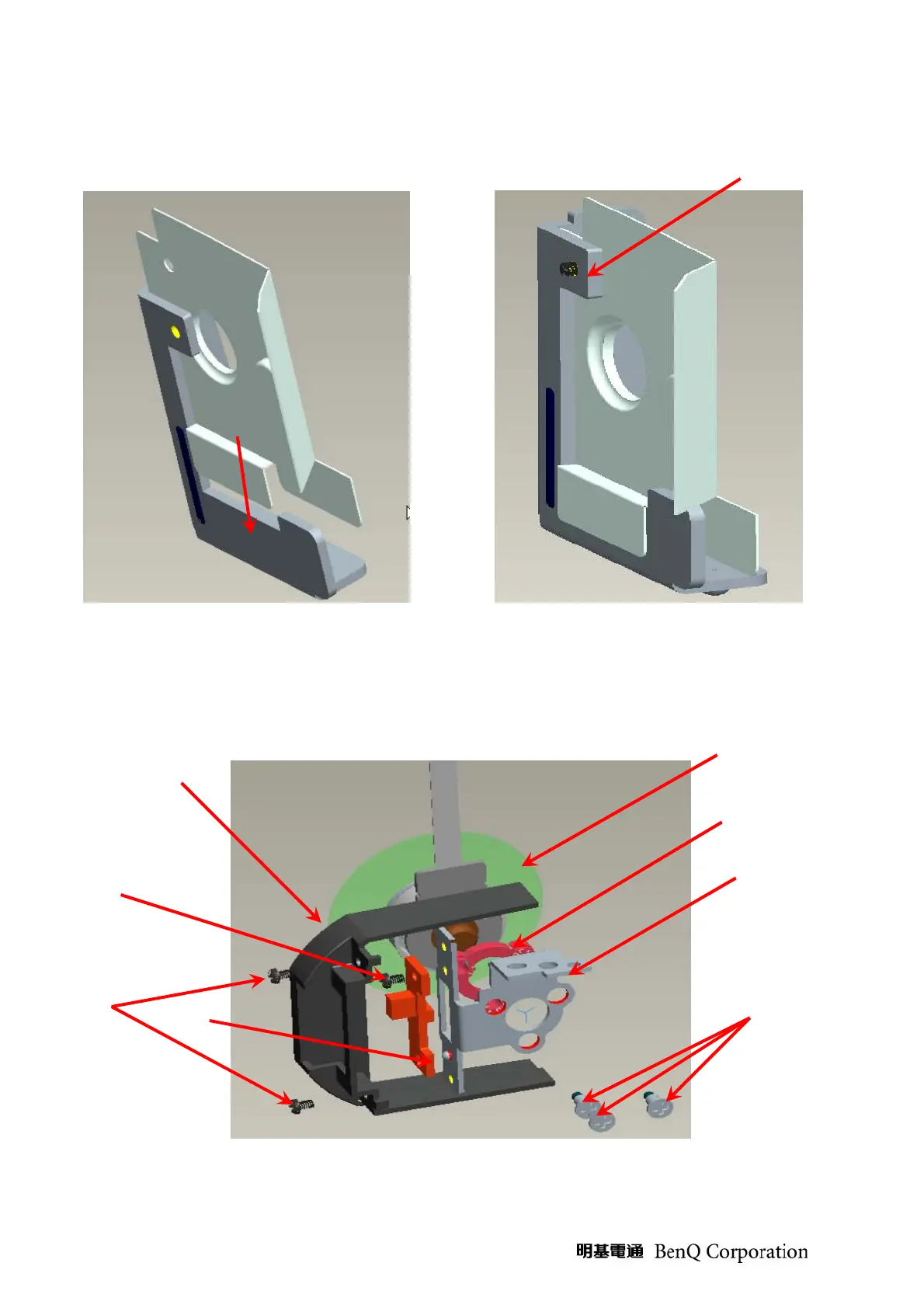

2.1 Insert “CW Shield” and hook “BKT Link Lamp”(Fig. 2-1).
2.2 Lock Screw well (Fig. 2-2).
Fig. 2-1 Fig. 2-2
3. Assembly CW Module:
3.1 CW Module Assembly Sequence as blow (Fig. 3-1, Fig. 3-2):
(1) BKT CW (2) Damper CW (3) CW (4) Screw (8F.00345.5R6) (5) Sensor Board
(6) Screw (8F.1A752.3R0) (7) CW CVR (8) Screw (8F.1A752.3R0).
Fig. 3-1
8F.1A752.3R0
○3
○2
○1
○4
○5
○6
○7
8
